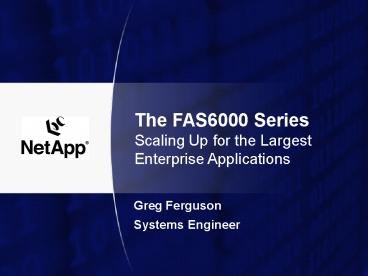

The FAS6000 SeriesScaling Up for the Largest
Enterprise Applications

• Greg Ferguson
• Systems Engineer

2
FAS6000 Extends the Most ScalableStorage Family
in the Business
FAS Family of Enterprise Storage Systems Unified
SAN, NAS and iSCSI
New
FAS200 16 TB
FAS3000 168 TB
FAS900 96 TB
FAS6000 504 TB
3
NetApp V-Series Virtualization
forHeterogeneous Storage Consolidation
V6070
V6030
New
GF980
New
V3050
504 TB
V3020
420 TB
GF270
96 TB
FAS and the V-Series have similar capabilities
168 TB
84 TB
16 TB
maximum capacities will be supported in Q3
CY2006
Tiered Heterogeneous Storage
4
FAS6000 Scalability Beyond Midrange Storage And
Into Frame Array Class
1,000
750
Max of Disk Drives
500
250
5
FAS6000 Boosts FAS Family Performance
NFS Performance SPEC SFS Test Suite

• The FAS6000 systems deliver superior performance
  due to
• Up to 8 x 64-bit CPUs per system
• High-bandwidth system design

2.0x
FAS980 FAS6070
FCP Performance Aggregate Writes
Aggregate Reads Transfer Rate
Transfer Rate
1.8x
1.5x
Note Preliminary results for dual controller
configurations. Updated April 2006. All
measurements made by Network Appliance.
FAS980 FAS6070 FAS980
FAS6070
6
FAS6000 Internal Data Bandwidth is Comparable to
Frame Array Systems
128 GB/s
128
96
68 GB/s
64 GB/s
64
Internal Data Bandwidth (GB/s)
34 GB/s
32
HDS TagmaStoreTM USP600
HDS TagmaStore USP1100
EMC SymmetrixTM DMX-3000
EMC Symmetrix DMX-3
7
More Effective Consolidation with NetApp Unified
Storage Model

• 10Gb and 1Gb Ethernet
• 4Gb and 2Gb Fibre Channel

• Consolidate file and block storage in one system

8
Robust SAN Support

• Up to 16 FC host ports
• 2Gb or 4Gb FC options
• Complete SAN Infrastructure

9
FlexVol Maximizes Efficiency of Storage
Consolidation
With NetApp FlexVol
Traditional Industry Model

• Volumes co-located
• Volumes tied to physical disk
• Issues Utilization, management

• Single shared pool of storage
• Higher utilization
• Dynamically reconfigure

10
FlexShare Makes Large-scale Consolidation
Practical

• FlexShare
• Enables workload prioritization at volume level
• Provides for more effective storage consolidation
• Critical workloads get fastest response when
  controller is fully loaded
• Storage administrator can make on-the-fly
  adjustments
• Standard feature of Data ONTAP 7.2

11
FAS6000 Delivers High Availability

• Baseline Data Center Requirements
• Active-active controllers
• 24x7 support services
• Local synchronous replication
• Metro-area failover for high availability
• Remote replication
• Unique NetApp HA Capabilities
• Ultra-strong data protection with NetApp
  dual-parity RAID
• Rapid application recovery via frequent,
  low-overhead SnapshotTM copies

12
FAS6000 For The Largest Data Center Applications
and Consolidations
Scales to Massive Capacity

• Up to 1,008 disk drives and 504 TB
• 2.0x performance of FAS980
• Modular expansion

Ensures Availability

• Full range of HA/DR options
• RAID-DP ultra-strong data protection
• Snapshot copies for rapid recovery

13
Simplifying Data Management
NetApp, the Network Appliance logo, and  Data
ONTAP are registered trademarks and FlexShare
and FlexVol are trademarks of Network Appliance
Inc. in the  United States and other countries.
All other trademarks belong to their respective
owners and should be treated as such.
