Title: VLSI Physical Design Automation

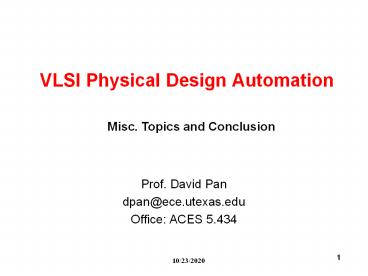

1
VLSI Physical Design Automation
Misc. Topics and Conclusion
  • Prof. David Pan
  • dpan_at_ece.utexas.edu
  • Office ACES 5.434

2
Other Design Styles FPGA
  • Field Programmable Gate Array
  • First introduced by Xilinx in 1984.
  • Pre-fabricated devices and interconnect, which
    are programmable by user.
  • Advantages
  • short turnaround time.
  • low manufacturing cost.
  • fully testable.
  • re-programmable.
  • Particularly suitable for prototyping, low or
    medium-volume production, device controllers, etc.

3
Comparison of Design Styles
Full-Custom Standard Cell Gate Array FPGA
Cell size variable fixed height fixed fixed
Cell type variable variable fixed programmable
Cell placement variable in row fixed fixed
Interconnections variable variable variable programmable
Fabrication layers all layers all layers routing layers only no layers
4
Comparison of Design Styles
Full-Custom Standard Cell Gate Array FPGA
Area compact compact to moderate moderate large
Performance high high to moderate moderate low
Design cost high medium medium low
Time-to-market long medium medium short
5
Programming Technologies
  • SRAM to control pass transistor / multiplexer
  • EPROM UV light Erasable PROM
  • EEPROM Electrically Erasable PROM
  • Antifuses One time programmable
  • They are different in ease of manufacturing,
    manufacturing reliability, area, ON and OFF
    resistance, parasitic capacitance, power
    consumption, re-programmability.

6
Typical FPGA Architecture
  • Consists of Logic modules, Routing resources,
    and I/O modules.

Logic Module
IO Module
Routing Tracks Switch boxes
7
FPGA Architecture Examples
Array-based Model
Row-based Model
Logic Module
Sea-of-Gates Model
Hierarchical Model
Routing resources overlayed on logic modules
8
Two Types of Logic Modules
  • Look-Up Table (LUT) based
  • A block of RAM to store the truth table.
  • A k-input 1-output functions needs 2k bits.
  • k is usually 5 or 6.
  • Multiplexer based

e.g., fABCABC
C
B
A
f
A
B
9
Two Types of Switchboxes
  • First Type
  • Second Type

10
Several Segmentation Models
  • Non-Segmentation Model
  • Uniform Segmentation Model

1
4
0
0
2
0
0
3
0
5
0
0
0
0
Not connecting
Connecting
0
0
0
1
0
0
4
0
2
0
3
0
0
5
1
4
0
0
2
0
0
3
0
5
0
0
0
0
Fuse or Programmable switch
0
0
0
1
0
0
4
0
2
0
3
0
0
5
11
Several Segmentation Models
  • Uniform Staggered Segmentation Model
  • Non-uniform Staggered Segmentation Model

1
4
0
0
2
0
0
3
0
5
0
0
0
0
0
0
0
1
0
0
4
0
2
0
3
0
0
5
1
4
0
0
2
0
0
3
0
5
0
0
0
0
0
0
0
1
0
0
4
0
2
0
3
0
0
5
12
Comparison of Segmentation Models
  • The segmented model provides better utilization
    of routing resources.
  • However, segmented model uses more fuses or
    programmable switches.
  • The delay of a net is directly proportional to
    the of fuses or programmable switches in the
    route
  • Manhattan-distance based delay model does NOT
    work anymore
  • The segmented model is slower in general

13
Physical Design of FPGAs
  • Very different from other design styles
  • Architecture dependent
  • LUT or Multiplexer in logic modules
  • Type of switchboxes used
  • Type of segmentation model used
  • ......
  • Physical Design
  • Partitioning
  • Floorplanning/Placement
  • Routing

14
Partitioning
  • Want to partition the circuit such that each
    partition (cluster) can be implemented by a logic
    module.
  • Also called Clustering.
  • of I/O pins, not cluster sizes, is important.
  • (For multiplexer based logic modules,
    functionality of clusters is also important.)

Example Using 4-LUTs
15
Placement
  • Assign clusters formed during partitioning to
    logic modules of FPGA.
  • The problem is the same as gate-array placement.

16
Routing
  • Global routing
  • Similar to global routing in other design styles.
  • Minimize wire length and balance densities.
  • Detailed routing
  • Very different from other design styles.
  • Different algorithms for different segmentation
    models.
  • Channels and switchboxes have fixed capacities.

17
Structured ASIC
  • New buzz word, but essentially gate array
  • Mask reconfigurable
  • Not field reconfigurable
  • Between FPGA and standard cells
  • Balance delay/performance and mask cost
  • Only programmable once
  • by vias (e.g., Via-Programmable Gate Array VPGA)

18
Physcial Design Automationof MCMs and SiPs
19
MCM and SiP
  • Multi-Chip Module
  • System in package (SiP)
  • Different package styles
  • Thermal consideration for 3D
  • Alternative packaging approach for high
    performance systems.
  • Similar to PCB and IC layout problems, but
  • PCB layout tools cannot handle the dense and
    complex wiring structure of MCM.
  • IC layout tools cannot handle the complex
    electrical, thermal and geometrical constraints.

20
Example Pentium
Substrate size 32mmx32mm Package
size 43mmx43mm (4 times smaller)
21
Partitioning
  • Partitioning a circuit so that each sub-circuit
    can be implemented into a chip.
  • MCM may contain as many as 100 chips.
  • Need to consider timing constraints and thermal
    constraints
  • In addition, also need to consider traditional
    I/O constraints and area constraints.

22
Placement
  • of components is much less as compared to IC
    placement.
  • However, need to consider timing constraints and
    thermal constraints (as bare chips are placed
    close to each other).
  • Routing is done in routing layers, not between
    chips.
  • So no routing region needs to be allocated.

23
Routing
  • Main objective is to satisfy timing constraints.
  • Another objective is to minimize of routing
    layers, not to minimize routing area.
  • Cost is directly proportional to of layers
  • Crosstalk, skin effect and parasitic effect are
    important considerations.
  • Wires are of smaller pitch and more dense than
    PCB layout.

24
EE382 V -- Conclusions
25
What Have Been Taught?
  • Introduced different problems in Physical Design.
  • Numerous algorithms which are different in terms
    of
  • design styles
  • objectives
  • constraints
  • techniques
  • optimality
  • efficiency
  • robustness
  • .....

26
What Is Important?
  • Understand the problems
  • How to formulate the problems, represent the
    constraints, solutions, etc.
  • Reasonable assumptions/abstractions
  • Know fundamental algorithms to solve the
    problems.
  • However, the world keeps on changing
  • technology
  • objectives
  • constraints
  • requirement on solution quality
  • computational power
  • It is more important to learn how to think
  • formulate the problem
  • solve it smartly

27
Problem Solving Techniques
  • Greedy Algorithm
  • Simulated Annealing/Genetic Algorithm
  • Mathematical Programming
  • Linear, Quadratic, Integer Linear, geometric,
    posynomial,
  • Dynamic Programming
  • Reduction to graph problems
  • min-cut, max-cut, shortest path, longest path,
    bipartite matching, minimum spanning tree, etc.
  • Divide-and-Conquer
  • Many different heuristics
  • ....

28
VLSI Design Cycle
System Specification
Architectural Design
Micro-Architectural Specification
Functional Design
Timing Relationship Between Units
Logic Design
RTL (in HDL)
Circuit Design
Netlist
29
VLSI Design Cycle
Netlist
Physical Design
Layout
Fabrication
Mask
Packaging And Testing
Packaged Chips
30
Conventional Physical Design Cycle
Partitioning
Floorplanning Placement
Routing
31
Technology Trend and Challenges
Source ITRS03
  • Interconnect determines the overall performance
  • In addition noise, power gt Design closure
  • Furthermore manufacturability gt Manufacturing
    closure

32
New Trends in Physical Design
  • For nanometer IC designs, interconnect dominates
  • New physical effects
  • Noise coupling, P/G noise
  • Power leakage, power/voltage islands
  • Manufacturability yield, printability
  • Reliability,
  • More and more vertical integration
  • Logic synthesis coupled with physical design
  • Interconnect optimizations design planning
  • Physical design as a bridge between lower level
    modeling and higher level optimization/planning
  • Existing CAD algorithms are far away from optimal

33
Check points
  • Problem solving skills on underlying physical
    design algorithms
  • Know whats behind the scene of CAD tools
  • Know the trend and critique ability if given a
    new research paper
  • Project study of a topic of your choice and
    implementation (through class project)
  • Presentation skill
  • Paper writing and job preparation
