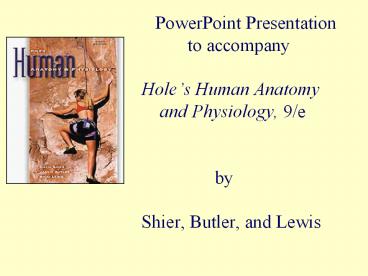

PowerPoint Presentation to accompany Hole

1
PowerPoint Presentation to
accompanyHoles Human Anatomy and
Physiology, 9/e
byShier, Butler, and Lewis
2
Chapter Two

• Chemical Basis of Life

3
Chemistry and Biochemistry

• Chemistry considers the composition of
  substances and how they change.
• The chemistry of living organisms is biological
  chemistry or biochemistry.
• Biochemistry has been important in explaining
  physiological processes and in improving medicine.

4
Matter and Elements

• Matter is anything that has weight and takes up
  space.
• All matter is composed of elements.
• Elements exist is their pure form or in chemical
  combinations called compounds.
• Elements are composed of atoms.

5
Atomic Structure

• Nucleus center of the atom, containing protons
  and neutrons
• Protons positively charged particles
• Neutrons particles which lack charge
• Electrons very small, negatively charged
  particles which encircle the nucleus

6
Figure 2.1
7
(No Transcript)
8
Isotopes

• Atomic number is the number of protons. It is
  the same for all atoms of an element.
• Atomic weight is the number of protons and
  neutrons.
• Atoms that have the same atomic number, but
  different atomic weights are isotopes.

9
Stable and Radioactive Isotopes

• Isotopes that do not decompose are called stable
  isotopes.
• Isotopes that have unstable nuclei that decompose
  are called radioactive isotopes.
• Radioactive isotopes release energy or particles
  until they reach a stable form.

10
Atomic Radiation

• Alpha radiation consists of particles from atomic
  nuclei, two protons and two neutrons. These
  particles are heavy, move slowly, and do not
  penetrate matter.

11
Atomic Radiation

• Beta radiation consists of smaller electrons that
  travel fast and penetrate matter.
• Gamma radiation is similar to X-radiation and is
  the most penetrating of these forms.

12
Molecules

• Two or more atoms combine to form a molecule.
• Molecules are distinctive from the elements of
  which they are composed.
• A molecular formula illustrates the number and
  type of atoms found in a molecule.

13
Atomic Structure

• Atoms, such as Helium, whose outermost electron
  shells are filled, have stable structures and are
  chemically inactive or inert.
• Atoms with incompletely filled outer shells tend
  to gain or lose electrons in ways that empty or
  fill their outer shells and create a stable
  structure.

14
Molecular Bonding

• Ions are formed when atoms gain or lose
  electrons.

15
Molecular Bonding

• Ionic or electrovalent bonds are formed by the
  attraction of oppositely charged ions.

16
Molecular Bonding

• Covalent bonds are formed by the sharing of
  electrons between atoms.

17
Molecular Bonding

• Hydrogen bonds are weak bonds between polar
  molecules.

18
Polar Molecules

• Covalent bonds can be formed where the electrons
  are not shared equally.
• This results in a polar molecule that has equal
  numbers of protons and electrons, but one atom
  has more that its share of electrons, becoming
  negative, and one atom has less, becoming
  positive.

19
Polar Molecules

• These polar bonds occur where hydrogen bonds to
  oxygen or nitrogen.

20
Chemical Reactions

• Synthesis Reaction A B AB
• Decomposition Reaction AB A B
• Exchange Reaction AB CD AD CB
• Reversible Reactions can proceed in either
  direction

21
Reversible Reactions

• Many chemical reactions are reversible.
• The direction in which the reaction proceeds
  depends on many factors such as
• - the proportions of products
• - reactants
• - amount of energy
• - presence of catalysts
• - molecules that influence the rate of
  reaction, but are not consumed in the
  reaction.

22
Acids, Bases, Salts

• Polarity of water causes dissociation of salts,
  releasing ions.

23
Acids, Bases, Salts

• Electrolytes release ions in water.
• Acids release hydrogen ions (H).
• Bases release ions that combine with H.
• Salts are formed by the reaction between an acid
  and a base.

24
Acid and Base Concentrations

• Hydrogen ions concentrations are measured in
  grams of ions per liter of solutions.
• The pH scale illustrates the hydrogen ions
  concentration in a convenient form.
• Pure water ionizes only slightly and results in
  equal numbers of hydrogen and hydroxyl ions, pH
  7, chemically neutral.

25
Hydrogen Ion Concentration

• Solutions with more hydrogen ions than hydroxyl
  ions are acidic with ph values of less than 7.
• Solutions with more hydroxyl ions than hydrogen
  ions are basic with ph values of greater than 7.

26
Body Fluid pH Changes

• Fluids in the human body function in a narrow ph
  range.
• Blood ph of 7.5 to 7.8 is alkalosis, resulting in
  agitation and dizziness.
• Blood ph of 7.0 to 7.3 is acidosis, resulting in
  disorientation and fatigue.

27
Figure 2.9
28
Inorganic Substances

• Water
• Oxygen
• Carbon Dioxide
• Inorganic Salts

29
Water

• Water is the most abundant compound in living
  material.
• It makes of 2/3 of the weight of an adult human.

30
Water

• Substances dissolve in water, making it possible
  for metabolic reactions to occur.
• Water aids in transport of substances.
• Water absorbs and transports heat.

31
Oxygen and Carbon Dioxide

• Oxygen is used to release energy from nutrient
  molecules.
• Carbon dioxide is produced as a waste product
  when energy is released during certain metabolic
  reactions.

32
Inorganic Salts

• Inorganic salts are the source of many important
  ions, including Na, Cl-, K, Ca, and many
  others.
• These play a role in metabolic reactions and must
  be maintained in appropriate concentrations.
• This is called electrolyte balance.

33
Organic Substances

• Organic molecules are carbon based molecules
  containing hydrogen and often oxygen.
• Important groups of organic substances in cells
  include carbohydrates, lipids, proteins, nucleic
  acids.

34
Carbohydrates

• Carbohydrates water-soluble molecules containing
  carbon, hydrogen, oxygen
• Sugars monosaccharides, disaccharides

35
Carbohydrates

• Polysaccharides built of simple sugars starch,
  fiber, glycogen

36
Lipids

• Three fatty acids combine with glycerol to form a
  triglyceride.

37
Lipids

• Fatty acids can be saturated or unsaturated.
• Phospholipids contain two fatty acids and a
  phosphate group.

38
Lipids

• Steroids are lipids composed of connected carbon
  rings, ex cholesterol.

39
(No Transcript)
40
Saturated vs. Unsaturated Fats

• A diet rich in saturated fat increases a
  persons risk of atherosclerosis.
• It is healthful to substitute unsaturated fats.
  Saturated fats are found in fatty foods that are
  solid at room temperature.
• Unsaturated fats are found in foods that are
  liquid at room temperature.

41
Proteins

• Wide range of functions
• Chain of amino acids of varying lengths
• Amino acids contain a central carbon, an amino
  group, a carboxyl group, and a side chain (R
  group)
• Amino acids are linked in a peptide bond joining
  the amino of one and carboxyl group of another
  amino acid

42
(No Transcript)
43
Levels of Protein Structure

• Primary amino acid sequence
• Secondary coil or sheet formed by hydrogen bonds
  between the amino acids
• Tertiary three dimensional shape created by
  hydrogen and covalent bonds
• Quarternary association of several separate
  protein chains

44
Figure 2.18
45
Nucleic Acids

• RNA
• ribose
• single strand
• aid in protein synthesis

• DNA
• deoxyribose
• double stranded
• store genetic information

46
Nucleic Acids

• Large, complex molecules
• Chains of nucleotides
• Nucleotides are composed of a sugar, a phosphate
  group, and one of five nitrogen bases

47
Figure 2.20a
48
Figure 2.20b
