Value-Driven Design A Program Committee Proposal

1

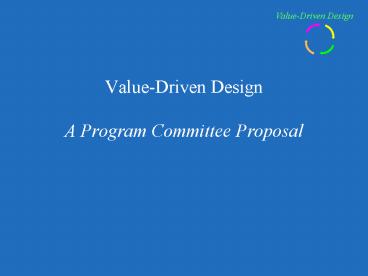

Value-Driven DesignA Program Committee Proposal
2
Where It Began
Systems Engineering Technical Committee
Multidisciplinary Optimization Technical Committee
EconomicsTechnical Committee
Reno 2005
3
Summer 2005
Systems Engineering Technical Committee
Multidisciplinary Optimization Technical Committee
EconomicsTechnical Committee
SAVE International (Value Engineering)
4
LM STS Orlando Workshop

• Attendees
• Industry Boeing, Lockheed Martin, Raytheon,
  Pratt and Whitney, Orbital Sciences
• Academia Purdue
• Government NASA, MITRE IDA
• Results
• Developed an initial VDD Scope
• Started a plan to make it happen
• Next Steps
• Pratt and Whitney hosting October Workshop to
  construct a real world example
• Student research projects at Purdue for systems
  of systems
• Research agenda meeting with NSF
• Conference tracks at MAO 2006 and ATIO 2006

5
What is VDD?

• Value-driven design (VDD) is an improved design
  process that uses requirements flexibility,
  formal optimization and a mathematical value
  model to balance performance, cost, schedule, and
  other measures important to the stakeholders to
  produce the best outcome possible.
• Requirements flexibility while traditional
  design focuses on point requirements, VDD opens
  up an entire solution space
• Formal optimization allows system and component
  design engineers to discover the best design in
  the entire solution space
• Mathematical value model expresses all
  stakeholder values (customer, business, society)
  and their interactions into a single measure to
  convey the needs of the project to every member
  of the design team.

6
A Formal View of Optimal Design
Decision
Creativity
7
VDD Distributed Optimal Design
Aircraft Systems
Wing Design
Cockpit Design
Propulsion Systems
Landing Gear Systems
Turbine Design
Avionics Systems
Propulsion Control System
Turbine
Blade
Heads-Up
Servovalve
Temperature
FADEC
Radar Design
Design
Design
Design
Sensor Design
Display Design
8
Pratt Whitney Hartford Workshop

• Objective
• Execute an example of VDD as a team
• Agenda
• Supersonic Business Jet
• Developed system objective function (value model)
• Derived from this the propulsion system objective
  function
• Results
• Demonstrated the basis for distributed,
  coordinated optimization
• Elected to propose the team as a AIAA Program
  Committee
• Elected Mike McCoy and Paul Collopy co-chairs

9
Members

• Industry
• Paul Collopy ECO DFM Consulting
• Mike McCoy SE Boeing
• Joe Otero Pratt Whitney (SAVE International)
• Jim Sturges SE Lockheed Martin
• Eric Nichols SE Orbital Sciences
• Jim Vickers Raytheon (SAVE)
• Quentin Redman Raytheon
• Troy Downen AFM Raytheon
• John Dahlgren SE MITRE
• Evin Cramer MDO Boeing
• Brooks Nolan SE L3Com
• Government
• Bill Kimmel ECO NASA
• Jay Mandelbaum IDA (DoD OSD, SAVE International)
• Academia
• Donna Rhodes MIT
• Fred Striz MDO Oklahoma U
• Daniel DeLaurentis MDO Purdue

10
Proposed Charter
The purpose of the Value-Driven Design Program
Committee is to develop, mature, document, and
release a design
method that identifies and optimizes the
attributes of the product or system of highest
value to its stakeholders.
Committee members wll discuss and explore the
wide-spread use of optimization throughout the
design process,
from lead systems engineers to designers at CAD
stations.
Value-Driven Design (VDD) integrates optimization
methods with systems engineering, economic
analysis and
value management methods. When developed, VDD
promises a superior and robust approach to
affordability that
uses economics as a forcing function, balancing
cost, performance, and other design attributes to
provide the best
design to a wide variety of stakeholders. By
using the VDD scorecard, everyone in a program
has the perspective to
execute the vision of the program leaders.
Specific goals of the Program Committee are to
1)

Develop a practical implementation of the VDD
process, realizing all the benefits of VDD
2)

Transition VDD from theory to practice in large
systems design
3)

Launch the instruction of VDD in engineering
curricula
4)

Build a vibrant research community in VDD
5)

Eventually assign VDD leadership to an existing
TC in the TAC
11
2006 2007 Activity

• Coordinate with SE, ECON MDO TCs this month
• Define Systems Engineering Processes and uses
  for VDD
• Develop procedure for Creating/Identifying
• Stakeholders SE TC
• Stakeholder Value ECON TC
• Metrics Relationships ECON TC
• Constraints SE TC
• Optimization Techniques MDO TC
• Develop Commercial Example (Done)
• April Workshop, Chandler, AZ Develop DoD Example
• Incorporate examples into Web
• Present Each
• Process for VDD
• Commercial Example
• DoD Example
• Recommendations for future Research
• Coordinate with Affordability Groups in industry
• Run Delta Forum for ASM 2007

MAO 2006 and ATIO 2006 Publish in Aerospace
America John Dahlgren paper for INCOSE Joe Otero
paper for SAVE Conference
