Title: Computer Graphics (Spring 2003)


1

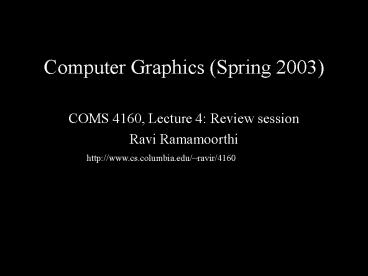

Computer Graphics (Spring 2003)
  • COMS 4160, Lecture 4 Review session
  • Ravi Ramamoorthi

http//www.cs.columbia.edu/ravir/4160
2
Gamma Correction
  • A scene is photographed with camera gamma .5
    and displayed on a CRT with gamma 2.4 If we want
    the system gamma to be 1, what gamma correction
    need we apply?
  • What does failure to gamma correct do to the
    saturation of colors? That is, if I have a color
    like (1.0, 0.5, 0.5) which is a fairly
    desaturated red, will failure to gamma-correct
    make it appear more reddish (greenish?, bluish?).
    How does this effect vary with how saturated the
    color is originally? Justify your answer
    quantitatively.

3
Intensity and Color
  • You have a 300 dpi bilevel printer, and need an
    effective resolution of 75 dpi. How many
    effective shades of gray can you obtain by
    halftoning?
  • Write down R, G, B values as appropriate weighted
    summations or integrals over the illumination
    spectrum. Can two different spectral
    distributions of light have the same visual
    sensation or RGB values?

4
Scan conversion
  • Give a general incremental algorithm for scan
    converting a polynomial function of the form y
    f(x) assume slope lt 1. How does this relate to
    computing derivatives?
