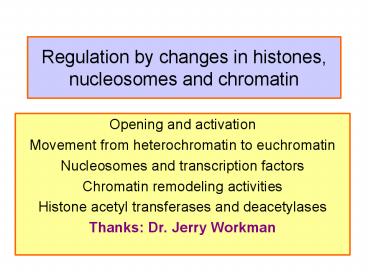

Regulation by changes in histones, nucleosomes and chromatin

1
Regulation by changes in histones, nucleosomes
and chromatin

• Opening and activation
• Movement from heterochromatin to euchromatin
• Nucleosomes and transcription factors
• Chromatin remodeling activities
• Histone acetyl transferases and deacetylases
• Thanks Dr. Jerry Workman

2
Human b-globin gene cluster
Domain opening?
Locus control region Activate linked globin gene
expression in erythroid cells. Overcome position
effects at many integration sites in transgenic
mice. Role in switching expression?
3
Domain opening and gene activation are separable
events
Loca- tion, hetero- chrom- atin
General histone hyper- Acn
Human HBB complex
wildtype N-MEL
DNase sensi- tive
H3 hyper Acn
LCR HSs
Txn
d
g
b
e
g
ORGs




away
Del. HS2-HS5
-
-


away
T-MEL, Hisp. del.
-
-
-
-
close
Reik et al. (1988) Mol. Cell. Biol.
185992-6000. Schübeler et al. (2000) Genes
Devel. 14940- 950
4
Chromosome localization in interphase
In interphase, chromosomes appear to be localized
to a sub-region of the nucleus.
5
Gene activation and location in the nucleus

• Condensed chromatin tends to localize close to
  the centromeres
• Pericentromeric heterochromatin
• Movement of genes during activation and silencing
• High resolution in situ hybridization
• Active genes found away from pericentromeric
  heterochromatin
• Silenced genes found associated with
  pericentromeric heterochromatin

6
Domainopening is associated with movement to
non-hetero-chromatic regions
7
Proposed sequence for activation

• 1. Open a chromatin domain
• Relocate away from pericentromeric
  heterochromatin
• Establish a locus-wide open chromatin
  configuration
• General histone hyperacetylation
• DNase I sensitivity
• 2. Activate transcription
• Local hyperacetylation of histone H3
• Promoter activation to initiate and elongate
  transcription

8
A scenario for transitions from silenced to open
to actively transcribed chromatin
9
From silenced to open chromatin
10
Movement from hetero- to euchromatin
11
Nucleosome remodelers and HATs further open
chromatin
12
Assembly of preinitiation complex on open
chromatin
13
Transcription factor binding to DNA is inhibited
within nucleosomes

• Affinity of transcription factor for its binding
  site on DNA is decreased when the DNA is
  reconstituted into nucleosomes
• Extent of inhibition is dependent on
• Location of the binding site within the
  nucleosome.
• binding sites at the edge are more accessible
  than the center
• The type of DNA binding domain.
• Zn fingers bind more easily than bHLH domains.

14
Stimulate binding of transcription factors to
nucleosomes

• Cooperative binding of multiple factors.
• The presence of histone chaperone proteins which
  can compete H2A/H2B dimers from the octamer.
• Acetylation of the N-terminal tails of the core
  histones
• Nucleosome disruption by ATP-dependent remodeling
  complexes.

15
Binding of transcription factors can destabilize
nucleosomes

• Destabilize histone/DNA interactions.
• Bound transcription factors can thus participate
  in nucleosome displacement and/or rearrangement.
• Provides sequence specificity to the formation of
  DNAse hypersensitive sites.
• DNAse hypersensitive sites may be
• nucleosome free regions or
• factor bound, remodeled nucleosomes which have an
  increased accessibility to nucleases.

16
Nucleosome remodeling
17
Chromatin remodeling ATPases are large complexes
of multiple proteins

• Yeast SWI/SNF
• 10 proteins
• Needed for expression of genes involved in
  mating-type switching and sucrose metabolism
  (sucrose non-fermenting).
• Some suppressors of swi or snf mutants are
  mutations in genes encoding histones.
• SWI/SNF complex interacts with chromatin to
  activate a subset of yeast genes.
• Is an ATPase
• Mammalian homologs hSWI/SNF
• ATPase is BRG1, related to Drosophila Brahma
• Other remodeling ATPase have been discovered.

18
Chromatin remodeling ATPases catalyze stable
alteration of the nucleosome
II form a stably remodeled dimer, altered DNAse
digestion pattern III transfer a histone octamer
to a different DNA fragment
19
Covalent modification of histones in chromatin
20
Histones are acetylated and deacetylated
Histone acetyl transferases
Histone deacetylases
21
Covalent modification of histone tails
N-ARTKQTARKSTGGKAPRKQLATKAARKSAP...- H3
4
9 10
14
23
27 28
18
N-SGRGKGGKGLGKGGAKRHRKVLRDNIQGIT...- H4
5
8
12
16
20
1
acetylation
phosphorylation
methylation
22
Two types of Histone Acetyltransferases (HATs).

• Type A nuclear HATs acetylate histones in
  chromatin.
• Type B cytoplasmic HATs acetylate free histones
  prior to their assembly into chromatin.
• Acetylate K5 and K12 in histone H4

23
Acetylation by nuclear HATs is associated with
transcriptional activation

• Highly acetylated histones are associated with
  actively transcribed chromatin
• Increasing histone acetylation can turn on some
  genes.
• Immunoprecipitation of DNA cross-linked to
  chromatin with antibodies against Ac-histones
  enriches for actively transcribed genes.
• Acetylation of histone N-terminal tails affects
  the ability of nucleosomes to associate in
  higher-order structures
• The acetylated chromatin is more open
• DNase sensitive
• accessible to transcription factors and
  polymerases
• HATs are implicated as co-activators of genes in
  chromatin, and HDACs (histone deacetylases) are
  implicated as co-repressors

24
Nuclear HAT As are coactivators

• Gcn5p is a transcriptional activator of many
  genes in yeast. It is also a HAT.
• PCAF (P300/CBP associated factor) is a HAT and is
  homologous to yeast Gcn5p.
• P300 and CBP are similar proteins that interact
  with many transcription factors (e.g. CREB, AP1
  and MyoD).
• P300/CBP are needed for activation by these
  factors, and thus are considered coactivators.
• P300/CBP has intrinsic HAT activity as well as
  binding to the HAT PCAF.

25
HAT complexes often contain several trancription
regulatory proteins.

• Example of the SAGA complex components
• Gcn5 catalytic subunit, histone acetyl
  transferase
• Ada proteins
• transcription adaptor proteins required for
  function of some activators in yeast.
• Spt proteins (TBP-group)
• regulate function of the TATA-binding protein.
• TAF proteins
• associate with TBP and also regulate its
  function.
• Tra1
• homologue of a human protein involved in cellular
  transformation.
• May be direct target of activator proteins.

26
Yeast SAGA interacting with chromatin
27
Roles of histone acetylation

• Increase access of transcription factors to DNA
  in nucleosomes.
• Decondense 30nm chromatin fibers
• Serve as markers for binding of non-histone
  proteins (e.g. bromodomain proteins).

28
Histone deacetylases are associated with
transcriptional repression
A mammalian histone deacetylase
Histone deacetylases Are recruited by
inhibitors of transcription. Are inhibited by
trichostatin and butyrate.
29
Repression by deacetylation of histones
30
Methylated DNA can recruit HDACs
31
Connections in eukaryotic transcriptional
activation

• Transcriptional activators
• Coactivators
• Nucleosome remodeling
• Histone modification
• Interphase nuclear localization

32
The functions of SWI/SNF and the SAGA complex are
genetically linked.

• Some genes require both complexes for activation.
• Other genes require one or the other complex.
• Many genes require neither - presumably utilize
  different ATP-dependent complexes and/or HATs

33
The yeast HO endonuclease gene requires both
SWI/SNF and SAGA

• The order of recruitment at the promoter
• 1. SWI5 activator sequence recognition
• 2. SWI/SNF complex remodel nucleosomes
• 3. SAGA acetylate histones
• 4. SBF activator (still at specific sequences)
• 5. general transcription factors
• Cosma, Tanaka and Nasmyth (1999) Cell 97299-311.
• The order is likely to differ at different genes
