The Road to an International Occupational Health

1

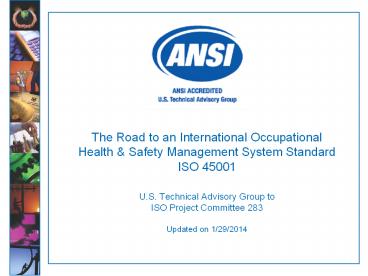

The Road to an International Occupational Health
Safety Management System Standard ISO
45001U.S. Technical Advisory Group to ISO
Project Committee 283Updated on 1/29/2014
2
Introduction

• June 2013, a New Work Item Proposal to establish
  an Occupational Health and Safety Management
  System (OHSMS) was approved by ISO creating
  Project Committee 283 (PC 283)
• September 2013, a U.S. Technical Advisory Group
  to the ISO PC 283 established
• The scope is to develop a global occupational
  health and safety (OHS) standard to provide
  effective, real-world solutions for worker
  safety.  This is historic work to protect not
  only Americas workers, but also that of the
  global workforce.  It will continue to shape the
  HS profession and directly impact how we manage
  and deliver health and safety both in and out of
  the workplace.

3
Background

• Prior attempts for passage 3 prior failed
  attempts for an ISO OHSMS standard
• The British Standards Institute instead, begins
  work on 8800 eventually leading to the work of
  the Occupational Health and Safety Assessment
  Series (OHSAS) Project Group on OHSAS18001
  Occupational Health and Safety Management Systems
  1999
• The OHSAS "Standards and Certificates Survey" has
  shown a rapid rise in the rate of use of OHSAS
  18001 and equivalent standards such as the ANSI
  Z10 OHSMS over the past 10 years
• OHSMS standards are now being used in 127
  countries around the world with over 100,000
  certificates issued

4
The most compelling reason for an ISO OHSMS
This comes from the NWIP. Would like to update
this with global or U.S. Data

• UKs Health and Safety Executive has the
  following data for 2010/11
• 1.2 million working people were suffering from
  a work related illness
• 175 workers killed at work
• 115000 injuries were reported
• 200000 reportable injuries (over 3 day absence)
  occurred
• 26.4 million working days were lost due to work
  related illness and workplace injury
• Workplace injuries and ill health (excluding
  cancer) cost society an estimated 22.8
• billion (in 2009/10)
• Similarly, the figures from the 2005 statistics
  released at the 17th World Congress on Safety and
  Health at Work showed that 2.2 million workers
  were fatally injured as the result of a
  work-related accident, which was an increase of
  10 from three years previously. The figures
  equate to around 6,000 cases per day.

5
The benefits of an effective OHSMS

• Ultimately the widespread use of effective OHS
  management
• systems will benefit society by
• reducing the number of incidents and accidents
• reducing disruptions to operational processes
• reducing the need for emergency medical care
  provision
• reducing the need for long term care for those
  unable to return to work following an accident
• preventing the removal of people from the
  workforce
• reducing the costs of incidents and accidents or
  of disruptions.

6
NWIP Scope of the proposed deliverable

• This International Standard specifies
  requirements for an occupational health and
  safety (OHS) management system, to enable an
  organization to control its OHS risks and
  improve its OHS performance. It does not state
  specific OHS performance criteria, nor does it
  give detailed specifications for the design of a
  management system. This International Standard
  is applicable to any organization that wishes to
• establish an OHS management system to eliminate
  or minimize risks to personnel and other
  interested parties who could be exposed to OHS
  hazards associated with its activities
• implement, maintain and continually improve an
  OHS mgmt system
• assure itself of its conformity with its stated
  OHS policy
• demonstrate conformity with this International
  Standard.

7
NWIP Scope of the proposed deliverable

• The International Standard is intended to provide
• organizations with the elements of an effective
  OHSMS that can help organizations achieve OHS
  and economic objectives.
• alignment the revisions of ISO 9001 and ISO 14001
  and the application of Annex SL, Appendix 2 of
  the Supplement to ISO Directives Part 1 (High
  level structure, identical core text and common
  terms and core definitions for use in Management
  Systems Standards)
• requirements that can be incorporated into any
  OHS management system. The extent of the
  application will depend on such factors as the
  OHS policy of the organization, the nature of
  its activities and the risks and complexity of
  its operations.

This International Standard is not intended to
address other health and safety areas such as
employee wellbeing/wellness programs, product
safety, property damage or environmental impacts.
8
Market Relevance (Affected Parties)

• Organizations of various types and sizes
• People under the control of the organization
• Visitors, neighbors, local community
• Customers/end-users
• Supplier organizations
• OHS management system service providers
• Governments and regulators
• Non-governmental organizations

9
International Organizational Relationships
ISO 45001 Occupational Health Safety Management
Systems
PC 283 43 Member countries 15
Observing countries 6 Liaison Members
U.S.
TAG to PC 283 89 Organizational Members
Delegates/ Experts
Mirror Committees
10
Who is Involved

• 43 Participating Countries
• and
• 15 Observing Countries

11
Participating Countries

• Secretariat United Kingdom
• Argentina Austria Belgium Botswana Burundi
• Canada Chile China Colombia Costa Rica
• Czech Rep. Denmark Egypt Finland France
• Germany Ghana Iraq Ireland Israel
• Italy Japan Malaysia Morocco Namibia
• Netherlands Norway Poland Portugal Romania
• Rwanda Singapore S. Africa Sprain Sri Lanka
• Sweden Switzerland Thailand Turkey Uganda
• UK United States Uruguay

12
Observing Countries

• Armenia Belarus Brazil
• Cyprus Hong Kong India
• Indonesia Iran Jordan
• Korea New Zealand Papua New Guinea
• Saint Lucia Serbia Slovakia

13
U.S. PC 283 Membership

• Types of Membership
• Consumer/Directly Affected Public General
  Interest
• Government Body/Organization Producer
• Professional Association/Society User
• Labor Organization Academia
• Trade Association Consulting
• Insurance and Financial Services Observer

14
U.S. PC 283 Committee Roster

• AIG Casualty Loss Control AIHA Guideline
  Foundation
• Altria Client Services Aluminum Association
• American Board of Industrial Hygiene American
  Chemistry Council
• American Society of Safety Engineers American
  Sugar Refining
• Amway Corp. Arcadis
• Ashland Inc. The Boeing Company
• Booz Allen Hamilton Brazosport Community
  College
• Capital Safety Cargill Meat Solutions
• Center for Safety Health Sustain. Clarion
  Safety Systems
• Climbtech Cummins
• Dotson Group, LLC Deep Down Inc.
• Eastern Kentucky University Environmental
  Compliance System

15
U.S. PC 283 Committee Roster Continued

• Erachem Comilog Inc. ESIS Health, Safety,
  Env.
• Fisher Phillips Flexible Packaging
  Association
• Flour Corporation Georgia Tech Env. Sustain.
  Serv.
• Gloal SHE Solutions Green Counselor
• Honda North America Services Icarus
  Environmental Inc.
• Institute for Safety Health Mgmt. Intl. Safety
  Equipment Association
• JC Safety Environmental Inc. Keene State
  College
• Kerry Ingredients Flavours, Inc. Keystone
  Engineering Inc.
• Konecranes, Inc. Lewellyn Technology
• Lockheed Martin Corporation Master Lock Company
• Mercer/Orchse Momentive Specialty Chemicals
• Natl Comm. On Occupat. SH Network National
  Consumers League

16
U.S. PC 283 Committee Roster Continued

• Natl. Instit. for Occup. SH (NIOSH) Natl.
  Instit. Of Standards and Tech
• National Institutes of Health National Retail
  Federation
• Natl. Roofing Contractors Assoc. National Safety
  Council
• North Carolina Dept. Of Transport. Nucor
  Corporation
• Oberon Company OSHA
• Omnex Engineering Mgmt. Parsons
• Penske Logistics Pfizer (pending)
• Philip L. Colleran, CSP PJ Brennan Associates
• Risk Mgmt. Insurance Society ROC One, LLC
• Safety Compliance Mgmt, Inc. Safety-Wise, LLC
• Sage Products Siemens N. American Healthcare
• Span International Training LLC SRI Quality
  System Registrar

17
U.S. PC 283 Committee Roster Continued

• Toyota Motor Engineering Manufacturing North
  America, Inc.
• Transreg LLC TUV SuD America
• Tyson Foods EHS Services UL
• United Auto Workers Intl. Union United Food
  Commercial Workers
• United States TAG ISO TC262 United Steelworkers
  Intl. Union
• University of Alabama University of Utah
• Univ. of WI Whitewater (pending) Walt Disney
  Parks Resorts
• Walmart Stores, Inc. Weir
• Willis Group Z10 Accredited Stand. Committee
• Zurich Services Corporation

18
US TAG to PC 283 Organizational Structure
19
Model Operating Procedures for U.S. TAGs to
ANSI for ISO Activities

• The functions and responsibilities of the U.S.
  TAG are
• Recommend registration of ANSI as a P- or
  O-member
• Initiate and approve U.S. proposals for new work
  items
• Initiate and approve U.S. working drafts for
  submission by ANSI to ISO
• Determine the U.S. position on an ISO draft
  International Standard, etc.
• Provide adequate U.S. representation to ISO
  technical committee
• Determine U.S. positions on agenda items of ISO
  committee
• Nominate U.S. technical experts to serve on ISO
  working groups
• Provide assistance to U.S. secretariats of ISO
  technical committees or subcommittees, upon
  request,
• Identify and establish close liaison with other
  U.S. TAGs in related fields
• Recommend to ANSI the acceptance of secretariats
  for ISO committees or subcommittees
• Recommend that ANSI invite the ISO committees to
  meet in the United States
• Recommend to ANSI U.S. candidates for the chair
  of ISO technical committees or subcommittees and
  U.S. conveners of ISO working groups

20
Timeline (key dates) 3 Years (N68)

• Terms
• Working Draft (WD) First draft developed by the
  Project Committee and experts (US will have TAG
  input)
• Committee Draft (CD) First public draft for
  circulation to public for comments
• Draft International Standard (DIS)
• Final Draft International Standard (FDIS)

21
Timeline (key dates) 3 Years (N68)

• 02/28/14 Comments due on WD1
• 03/31/14 PC Meeting drafts Committee Draft 1
  (CD1)
• 06 /2014 CD1 released for comment/ballot
• 11 /2014 PC Meeting drafts Draft International
  Standard (DIS)
• 01 /2015 DIS released for translation
• 06 /2015 DIS Ballot
• 11 /2015 PC Meeting drafts Final DIS (FDIS)
• 01 /2016 Final draft of FDIS ? ISO processing
• 07 /2016 FDIS Balloting
• 09 /2016 Publication of ISO 45001

22
What does the draft look like so far.ISO/WD
45001 ISO/PC 283/WG 1 N 09

• Section 1 Scope
• Section 2 Normative References
• Section 3 Terms and Definitions
• Section 4 Context of the Organization
• Section 5 Leadership
• Section 6 Planning
• Section 7 Support
• Section 8 Operation
• Section 9 Performance Evaluation
• Section 10 Improvement

23
What does the draft look like so far.ISO/WD
45001 ISO/PC 283/WG 1 N 09

• Followed by Annex A Informative
• Likely will see references to
• ANSI Z10 Occupational Health and Safety
  Management Systems
• ANSI/ASSE Z590.3 2011 Prevention through
  Design Guidelines for Addressing Occupational
  Hazards and Risks in Design and Redesign Process
• OHSAS 18001 Occupational Health Safety
  Management System

24
ISO Standards

• It is worth noting that development of ISO 45001
  takes into account consistency with
• ISO 9001
• ISO 14001

25
What has US PC 283 been doing

• Fall 2013
• Reviewed and Provided Comments
• N21 Draft Design Specification
• N23 Revised Proof of Concept Draft
• ISO N22 US TAG Consolidated Comments
• Calls
• 9/28/2013 Kick-Off Call, Intro, Welcome,
  Expectations
• 9/23/2013 Reviewed Comments to N23
• 10/9/2013 Pre London TAG Call, Final Review and
  Position
• 11/15/2013 Recap of October London PC Meeting
  and next steps for working draft
  review

26
London Meeting Oct. 21-23, 2013ISO PC 283
Meeting Participants

• 83 delegates (Experts)
• 27 Member bodies
• 5 Liaison members
• Some participated by webinar

27
Goals - Inaugural Meeting

• To review the comments
• Revised proof of concept draft and to Begin to
  produce a first Working Draft (WD1) of ISO 45001.

• Design Specification to develop the final
  document. (Live Document)
• Address agenda items for the Project Committee
  (PC) Open Forum.

28
Goals - US Delegation

• Establish Key Relationships Secretariat,
  Country allies alliances
• Advocate for US positions based upon Z10 and US
  Comments in (most comments were accepted)
• Proof of Concept Document
• Design Specification
• Open Forum (as applicable)

29
Key points - Takeaways

• Developed good relationships with the
  Secretariat, Chair - Working Draft 1 (WD1),
  various key countries
• US Comments on PoC and Design Specification were
  accepted for the most part

30
London Review Process

• 5 Task Groups
• TG1 Section 4 the organization, 5
  Leadership/Participation, 7 Support
• TG2 Section 6 Planning
• TG3 Section 8 Operation
• TG4 Section 9 Performance Evaluation and 10
  Improvement
• TG5 Terms Definitions (Formed at the end of
  meeting)
• U.S. PC 283 Mirrors these task groups

31
PC 283 2014

• 2014
• Committee Meeting in Washington, D.C. Jan. 15-16
• Reviewed Comments to WD 1
• Next International Meeting Mar. 31 Apr. 4 in
  Morocco attended by U.S. Delegates
• Anticipating release of Committee Draft 1 by
  summer
• Continued review and comments

32
Opportunities for Involvement

• Upon release of Committee Draft 1, all interested
  parties will be able to view and provide comments
• PC 283 will continue to review and consolidate
  comments and provide our U.S. delegates with
  guidance through issuance of the standard.

33
Thank you!

• Questions?
• Tim Fisher, CSP, CAE, CHMM, CPEA, ARM
• Director, Practices and Standards
• American Society of Safety Engineers (ASSE)
• 1800 East Oakton Street
• Des Plaines, IL 60018
• 847/768-3411
• TFisher_at_ASSE.Org

34
Backup Slides
35
The benefits of implementing an OHSMS

• Common governance, policy and practice benchmarks
  across geographical boundaries, including
  different countries, cultures and jurisdictions
• Ability to meet regulatory requirements,
  including accountability, ethical and corporate
  governance requirements regulatory compliance
  and practice audits
• Enables compliance with national and
  international legislation and codes of conduct
• Support of risk management, including emergency
  planning, and implementation
• Shows a commitment to improved OHS performance
• Ability to set and assess performance measures
  for the use of contract service providers, and
  for inclusion in commercial contracts
• Significant reductions in the number of OHS
  incidents and accidents, including a reduction in
  associated costs
• Significant reductions in the cost of disruptions
  to operations

36
The benefits of implementing an OHSMS

• Reduced insurance premiums
• Use of an OHS MSS that integrates with other MSS
• Enables a coordinated, consistent and integrated
  approach to establishing policy, objectives,
  targets and implementation techniques across an
  organization thereby minimizing duplication,
  redundancy, and incompatible processes
• Use of an OHS management system standard for
  measuring conformity shows commitment to the
  wellbeing of workers, neighbors and visitors, as
  well as to organizational governance,
  accountability and integrity
• Scalable use of an internationally accepted
  system to meet business needs, resource
  availability and risk
• Facilitation of communication between different
  countries on shared issues, and a forum for
  articulating common principles, minimum and best
  practice.
• the establishment of peer review and other
  monitoring (audits) systems including provision
  of training, certification and accreditation
  services
• the establishment of formal complaints handling
  processes by the certification and accreditation
  bodies (through the use of ISO/IEC 17021)

37
In looking at the benefits that each group of
stakeholders might achieve

1. Governments and regulators
2. Industry
3. Labor
4. Visitors, neighbors, local community
5. For Small Medium Enterprises
