Infineon 167 Interrupts

1
Infineon 167 Interrupts

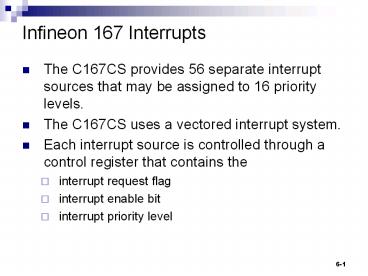

• The C167CS provides 56 separate interrupt sources
  that may be assigned to 16 priority levels.
• The C167CS uses a vectored interrupt system.
• Each interrupt source is controlled through a
  control register that contains the
• interrupt request flag
• interrupt enable bit
• interrupt priority level

2
167 Interrupts

• System specific vector locations in the memory
  space are reserved for the reset, trap, and
  interrupt service functions
• Whenever a request occurs, the CPU branches to
  the location that is associated with the
  respective interrupt source. This allows direct
  identification of the source that caused the
  request.
• The only exceptions are the class B hardware
  traps which all share the same interrupt vector.

3
167 Interrupts

• The jump table is made up of the appropriate jump
  instructions that transfer control to the
  interrupt or trap service routines, which may be
  located anywhere within the address space. The
  entries of the jump table are located at the
  lowest address space.
• Each entry occupies 2 words, except for the reset
  vector and the hardware trap vectors, which
  occupy 4 or 8 words.

4
Hardware Trap Summary
5
Interrupt Vectors
6
Processor Status Word (PSW)
7
Saving the Program Environment
IP - Instruction Pointer (same as PC) PSW -
Processor Status Word
8
Interrupt Processing

• An interrupt service routine should save all the
  registers it uses on the stack, and restore them
  before returning.
• The more registers a routine uses, the more time
  is wasted with saving and restoring.
• The C167CS allows switching the complete bank of
  CPU registers with a single instruction, so the
  service routine executes within its own, separate
  context. (Context switch)

9
Interrupt Control Registers

• All interrupt control registers are organized
  identically.
• The lower 8 bits of an interrupt control register
  contain the complete interrupt status information
  of the associated source, which is required
  during one round of prioritisation
• The upper 8 bits of the respective register are
  reserved.
• Each interrupt source has its own Interrupt
  control register ,xxIC , where xx stands for the
  mnemonic for the respective source. Example
  T2IC, ADCIC etc.

10
Interrupt Control Registers
11
Interrupt Techniques

• For input interrupts
• Process data in the ISR or
• Process data in main program -
• In ISR store data in a buffer( a single variable
  or an array)
• Set a flag
• Main program polls the flag periodically,
  processing data when flag is set, and resetting
  flag
• Use of "Circular Buffers" to provide optimum
  buffer usage.

12
Interrupt Processing

• For output interrupts
• Process data in the ISR or
• Process data in main program -
• In main program store data in a buffer
• Enable the interrupt if the interrupt is disabled
• In ISR output data from buffer and disable
  interrupt if this is last data item.
• Use of "Circular Buffers" to provide optimum
  buffer usage.

13
Keil C166 'C' Language Extensions

• Compiler allows designation of a 'C' function as
  an ISR-
• void ISR( ) interrupt A using B
• A is the vector number associated with the device
  causing the interrupt
• using B is optional and will cause a register
  bank switch which can save time if many registers
  need to be stored and later restored. But can be
  slower if only a few registers need to be saved.
• Note return type MUST be void

14
Interrupt Service Routine

• ISR and local variables
• local variables a created on each ISR invocation
• use static keyword to preserve value between ISR
  invocations
• Communicating with main program use shared
  variables I.e. global variables. Problems!!
• Need mutual exclusion
• Could use simple variables ensuring atomic access
• Or simply disable interrupt during access to
  shared variable.
