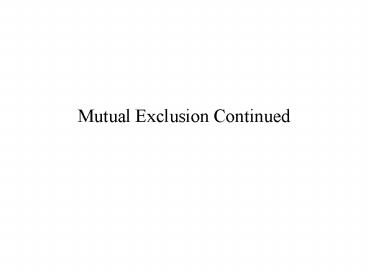

Mutual Exclusion Continued

1
Mutual Exclusion Continued
2
Quorum Based Algorithms

• Each process j requests permission from its
  quorum Qj
• Requirement
• ?j, k Qj ? Qk ? ?
• ?j, k Qj ?Qk
• Rj set of processes that request permission
  from Qj
• Rj need not be the same as Qj
• It is desirable that the size of Rj is
  same/similar for all processes

3
Maekawas algorithm

• Maekawa showed that minimum quorum size is ??N?
• example quorums
• for 3 processes R0P0,P1, R1P1,P2,
  R2P0,P2
• for 7 processes R0P0,P1 ,P2, R3P0,P3 ,P4,
  R5P0,P5 ,P6, R1P1,P3 ,P5, R4P1,P4
  ,P6, R6P2,P3 ,P6, R2P2,P4 ,P5

4
Basic operation

• Requesting CS
• process requests CS by sending request message to
  processes in its quorum
• a process has just one permission to give, if a
  process receives a request it sends back reply
  unless it granted permission to other process in
  which case the request is queued
• Entering CS
• process may enter CS when it receives replys from
  all processes in its quorum
• Releasing CS
• after exiting CS process sends release to every
  process in its quorum
• when a process gets release it sends reply to
  another request in its queue

5
Possible Deadlock

• Since processes do not communicate with all other
  processes in the system, CS requests may be
  granted out of timestamp order
• example
• suppose there are processes Pi, Pj, and Pk such
  thatPj? Ri and Pj? Rk but Pk? Ri and Pi? Rk
• Pi and Pk request CS such that tsk lt tsi
• if request Pi from reaches Pj first, then Pj
  sends reply to Pi and Pk has to wait for Pi out
  of timestamp order
• a wait-for cycle (hence a deadlock) may be formed


6
Maekawas algorithm, deadlock avoidance

• To avoid deadlock process recalls permission if
  it is granted out of timestamp order
• if Pj receives a request from Pi with higher
  timestamp than the request granted permission, Pj
  sends failed to Pi
• If Pj receives a request from Pi with lower
  timestamp than the request granted permission
  (deadlock possibility), Pj sends inquire to Pi
• when Pi receives inquire it replies with yield if
  it did not succeed getting permissions from other
  processes
• got failed

7
Token-based algorithms

• LeLanns token ring
• Suzuki-Kasamis broadcast
• Raymonds tree

8
Token-ring algorithm (Le Lann)

• Processes are arranged in a logical ring
• At start, process 0 is given a token
• Token circulates around the ring in a fixed
  direction via point-to-point messages
• When a process acquires the token, it has the
  right to enter the critical section
• After exiting CS, it passes the token on
• Evaluation
• N1 messages required to enter CS
• Not difficult to add new processes to ring
• With unidirectional ring, mutual exclusion is
  fair, and no process starves
• Difficult to detect when token is lost
• Doesnt guarantee happened-before order of
  entry into critical section

9
Suzuki-Kasamis broadcast algorithm

• Overview
• If a process wants to enter the critical section,
  and it does not have the token, it broadcasts a
  request message to all other processes in the
  system
• The process that has the token will then send it
  to the requesting process
• However, if it is in CS, it gets to finish before
  sending the token
• A process holding the token can continuously
  enter the critical section until the token is
  requested
• Request vector at process i
• RNi k contains the largest sequence number
  received from process k in a request message
• Token consists of vector and a queue
• LNk contains the sequence number of the latest
  executed request from process k
• Q is the queue of requesting process

10
Suzuki-Kasamis broadcast algorithm

• Requesting the critical section (CS)
• When a process i wants to enter the CS, if it
  does not have the token, it
• Increments its sequence number RNi i
• Sends a request message containing new sequence
  number to all processes in the system
• When a process k receives the request(i,sn)
  message, it
• Sets RNk i to MAX(RNk i, sn)
• If sn lt RNk i, the message is outdated
• If process k has the token and is not in CS
  (i.e., is not using token),and if RNk i
  LNi1 (indicating an outstanding request)it
  sends the token to process i
• Executing the CS
• A process enters the CS when it acquires the token

11
Suzuki-Kasamis broadcast algorithm

• Releasing the CS
• When a process i leaves the CS, it
• Sets LNi of the token equal to RNi i
• Indicates that its request RNi i has been
  executed
• For every process k whose ID is not in the token
  queue Q, it appends its ID to Q if RNi k
  LNk1
• Indicates that process k has an outstanding
  request
• If the token queue Q is nonempty after this
  update, it deletes the process ID at the head of
  Q and sends the token to that process
• Gives priority to others requests
• Otherwise, it keeps the token
• Evaluation
• 0 or N messages required to enter CS
• No messages if process holds the token
• Otherwise (N-1) requests, 1 reply
• synchronization delay T

12
Raymonds tree algorithm

• Overview
• processors are arranged as a logical tree
• Edges are directed toward theprocessor that
  holds the token (called the holder, initially
  the root of tree)
• Each processor has
• A variable holder that points to its neighbor on
  the directed path toward the holder of the token
• A FIFO queue called request_q that holds its
  requests for the token, as well as any requests
  from neighbors that have requested but havent
  received the token
• If request_q is non-empty, that implies the node
  has already sent the request at the head of its
  queue toward the holder

13
Raymonds tree algorithm

• Requesting the critical section (CS)
• When a process wants to enter the CS, but it does
  not have the token, it
• Adds its request to its request_q
• If its request_q was empty before the addition,
  it sends a request message along the directed
  path toward the holder
• If the request_q was not empty, its already
  made a request, and has to wait
• When a process in the path between the requesting
  process and the holder receives the request
  message, it
• lt same as above gt
• When the holder receives a request message, it
• Sends the token (in a message) toward the
  requesting process
• Sets its holder variable to point toward that
  process (toward the new holder)

14
Raymonds tree algorithm

• Requesting the CS (cont.)
• When a process in the path between the holder and
  the requesting process receives the token, it
• Deletes the top entry (the most current
  requesting process) from its request_q
• Sends the token toward the process referenced by
  the deleted entry, and sets its holder variable
  to point toward that process
• If its request_q is not empty after this
  deletion, it sends a request message along the
  directed path toward the new holder (pointed to
  by the updated holder variable)
• Executing the CS
• A process can enter the CS when it receives the
  token and its own entry is at the top of its
  request_q
• It deletes the top entry from the request_q, and
  enters the CS

15
Raymonds tree algorithm

• Releasing the CS
• When a process leaves the CS
• If its request_q is not empty (meaning a process
  has requested the token from it), it
• Deletes the top entry from its request_q
• Sends the token toward the process referenced by
  the deleted entry, and sets its holder variable
  to point toward that process
• If its request_q is not empty after this deletion
  (meaning more than one process has requested the
  token from it), it sends a request message along
  the directed path toward the new holder (pointed
  to by the updated holder variable)
• greedy variant a process may execute the CS if
  it has the token even if it is not at the top of
  the queue. How does this variant affect Raymonds
  alg.?
