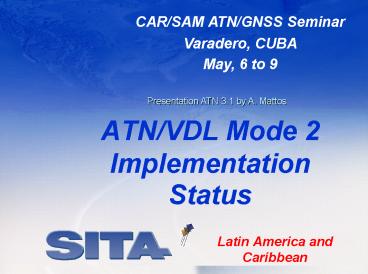

ATN/VDL Mode 2 Implementation Status
CAR/SAM ATN/GNSS Seminar Varadero, CUBA May, 6
to 9
Presentation ATN 3.1 by A. Mattos

• Latin America and Caribbean

2
Presentation Overview

• ACARS Overview
• ATS use of ACARS
• FANS 1/A Services
• ACARS to ATN Transition
• VDL Mode 2 deployment
• ATN Ground Applications AMHS plans
• AIRCOM ATN Services

3
SITA Aircraft Data Link Service

• Creation of SITA in 1949 by airlines to provide
  them with shared network services.
• Expansion of data network coverage
• VHF AIRCOM ground stations
• Satellite AIRCOM INMARSAT ground stations
• The AIRCOM Data Link Service provides aircraft
  with a means to exchange data with airline
  systems and ATS application systems connected to
  the SITA terrestrial network.
• Today SITA provides ACARS services to over 5,000
  acft for AOC comms. On average we provide
  services to 3,000 acft daily that exchange in
  excess of 350,000 mesages

4
VHF AIRCOM Coverage
5
Satellite AIRCOM Coverage
6
SITA AIRCOM Services

• SITA provides AIRCOM Data Link service for use by
  Aircraft Communication Addressing and Reporting
  System (ACARS) avionics.
• Plain Old ACARS (POA)
• ACARS Over Aviation VHF Link Control (AVLC) (AOA)
• Internetworking

7
AIRCOM ATS Services

• According to IATA estimates, there are about 1200
  FANS 1/A equipped aircraft.
• 20 ATS providers around the world are
  providing/planning to provide FANS 1/A based
  services
• On regional context the following airlines have
  datalink capabilities
• TAM, LANCHILE, COPA, MEXICANA, ACES, AIR JAMAICA,
  TACA, MARTINAIR, VARIG.

8
AIRCOM ATS Services

• Sets of data link applications using ACARS
• Pre-FANS applications that use only the basic
  text messaging capability of the ACARS avionics
• Departure Clearance (DCL) and Oceanic Clearance
  (OCL)
• Automatic Terminal Information Service (ATIS)
• The FANS applications which require special
  processing capability in the user aircraft
• Automatic Dependent Surveillance (ADS)
• Controller Pilot Data Link Communications (CPDLC)
• ATC Facilities Notification (AFN)

9
AIRCOM Use for ATC Clearances
10
AIRCOM use for Digital ATIS
11
SITA DCL/ATIS Customers

• France
• Switzerland
• Portugal
• Spain
• Germany
• Sweden
• Austria
• Denmark
• Norway

• Singapore
• Hong Kong
• South Korea
• Australia
• Bahrain
• Ivory Coast
• Greece
• United Kingdom

12
AIRCOM use for FANS-1/A ADS/CPDLC
13
SITA FANS Customers

• US FAA
• Australia
• France (Tahiti)
• Fiji
• South Africa
• Eurocontrol
• Egypt
• Iran
• Uzbekistan

• Singapore
• India
• Myanmar
• Mongolia
• Hong Kong
• South Korea
• Sri-Lanka
• Madagascar

14
ACARS to ATN Transition

• As part of LINK 2000 (the Eurocontrol Link
  Program Steering Group)an industry group lead by
  Boeing was formed with the objective of examining
  ways to accommodate FANS 1/A aircraft in ATN
  Baseline 1 airspace, to provide ATS providers
  with aircraft to justify investment and maintain
  progress on domestic datalink infrastructure
  investment
• To support FANS-1/A aircraft in ATN airspace IRRF
  has considered a solution based in two kinds of
  gateways internal and external.
• The gateway provides the fundamental mechanism
  for ATN-based ATS Providers to communicate with
  FANS-1/A aircraft, and vice versa
• SITA is actively involved with IRRF group in
  order to develop/provide an external gateway

15
Domestic FANS with External Gateway
16
VHF ACARS to VDL transition

• ICAO VHF Digital Datalink (VDL)
• Mode 2
• ACARS replacement
• ATN compatible
• SARPS were included in Annex 10 in Nov1997
• 3Kbits/s throughput for ATC use
• transition solution
• Mode 3
• Mode 4

17
VHF ACARS to VDL transition

• SITA will increase VHF AIRCOM data link capacity
  by introducing VHF Digital Link Mode 2 service
  providing 10-20 times more capacity per channel.
• Industry has defined the ACARS over AVLC (AOA)
  standard as a means to operate existing ACARS
  applications over the VDL 2 network
• SITA is currently trialling the AOA service with
  a major European Airline
• The VGS (VDL Mode 2 and ACARS capable) has been
  delivered in October 2000 and deployment started
  beginning in January 2001

18
(No Transcript)
19
ATN Ground Applications AMHS Plans

• SITA is planning to build an Aeronautical Message
  Handling Service (AMHS) that fully complies to
  the ICAO ATN AMHS Standards and Recommended
  Practices
• SITA is assessing ATS provider requirements for
  introduction and use of AMHS services in order to
  determine when the service should be rolled out
• SITA can provide either a back-up or primary AMHS
  service

20
ATN Ground Applications AMHS Plans

• ATS ground-to-ground communications are
  increasingly using generic telecommunications
  services e.g
• the FAA Telecommunications Infrastructure (FTI)
  initiative to replace the FAAs leased lines with
  a Frame Relay and ATM backbone
• the Eurocontrol CFMU regional IP service to
  support the Enhanced Tactical Flow Management
  System
• SITA encourages ATS providers to consider
  providing AMHS services over an IP network
  service, ATN ground/ground routers are not
  essential for AMHS services

21
AIRCOM ATN Services

• VDL Mode 2/ATN
• VDL/ATN will support the ICAO ATN CM, CPDLC, ADS,
  and FIS applications
• Launch September 2002
• Successful Flight tests with Eurocontrol January
  2002-CPDLC messages exchanged end-to-end
• VHF Ground Stations (VGS) POA/AOA/ATN Capable
  Deployment in 2002
• GACS Gateway (Genereric ATN Com Service)
• permits legacy ACARS applications to use an ATN
  service
• provides ATN interface for new binary (AOS ATS)
  applications
• SITA is working with Eurocontrol, BA and LH on
  GACS trials
• Aeronautical Mobile Satellite Services (AMSS)
  Data-3
• Suports connection to ATN network

22
By concluding...

• SITA works with the ATS providers developing data
  link applications to ensure they are accessible
  to the AIRCOM customer airlines.
• SITA encourages the use of the existing ACARS
  AIRCOM infrastructure to the ATS providers for
  initial ATS datalink applications (D-ATIS, DCL,
  OCM, FANS 1/A)
• ATC providers implementing CPDLC services will
  have to offer them to ATN and FANS-1/A equipped
  aircraft to have a significant impact on airspace
  capacity by 2005
• SITA is willing to work/partner with ATS
  providers to support plans and trials for ACARS
  based ATS applications and ATN service provision
  including AMHS

23
