Title: Update on NML


1

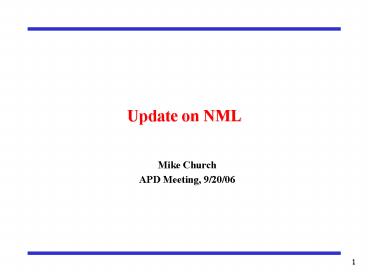

Update on NML
  • Mike Church
  • APD Meeting, 9/20/06

2
NML Building
Over the past year the experimental floor has
been cleared of old equipment and necessary
infrastructure has started to be installed (cryo
lines, for example) NML New Muon Lab but
we are trying to change the name ..
3
Function
  • Electron beam test facility consisting of a
    (photo)injector, acceleration section and
    test/dump line gt 750 MeV
  • First use will be to fully test 1 ILC RF unit
    consisting of 1 klystron/modulator powering 3
    TTF/ILC cryomodules
  • Injector can be used for ongoing photoinjector
    RD
  • Downstream test line will provide facility for
    general accelerator RD (instrumentation, )

4
Layout
test and dump lines
acceleration
injector
74 meters
5
Beam
  • 2E10 electrons/bunch
  • 307 nsec/bunch
  • 2820 bunches/pulse
  • 5 pulses/second
  • ? 34 KW _at_ 750 MeV
  • RMS bunch length 300 microns (after bunch
    compression)
  • RMS normalized transverse emittance lt 5 mm-mrad

6
PITZ Egun
1 ½ cell RF cavity (1.3 GHz)
RF coaxial feed
photocathode
laser mirror
7
Injector Layout (P. Piot latest)
flat beam xform (skew quads)
low energy spectrometer
chicane (for bunch compression)
3.9 GHz Cavity (future)
Egun
1st cryomodule
2 Capture Cavities (1.3GHz)
doublet
triplet
triplet
triplet
22 meters
8
Beam Envelope in 1st 8 meters (4 stacked gaussian
pulses)
capture cavity 2
capture cavity 1
start of chicane (34 MeV)
photocathode
9
Downstream End (quads not shown)
spectrometer magnet (dE/E 1E-4)
high energy test area
low power dump
Dumps will be based on TTF design cylindrical
carbon core surrounded by Al
high power dump (34KW)
10
Plans
  • Much of the A0 photoinjector equipment will be
    moved to NML
  • A new egun identical to DESY PITZ egun
    (PhotoInjector Test facility in Zeuthen) will be
    built
  • 1st TTF III cryomodule kit delivered to TD
    for assembly and test (Spring 07)
  • Install 1st cryomodule at NML (Summer 07)
  • SLAC to provide RF distribution system to
    cryomodules (Summer 07)
  • First beam (end of FY07)
  • Install a 2nd TTF III cryomodule (??)
  • Expand building to make room for 3rd cryomodule
    (ILC type, built at FNAL) without compromising
    injector capabilities
  • Install 3rd ILC type cryomodule
