Towards a Hardware-Software Co-Designed Resilient System

1

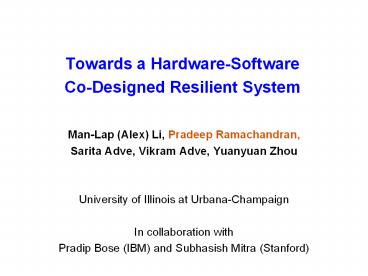

Towards a Hardware-Software Co-Designed
Resilient System

• Man-Lap (Alex) Li, Pradeep Ramachandran,
• Sarita Adve, Vikram Adve, Yuanyuan Zhou
• University of Illinois at Urbana-Champaign
• In collaboration with
• Pradip Bose (IBM) and Subhasish Mitra (Stanford)

2
Motivation

• Failures will happen in the field
• Design defects
• Aging
• Soft errors
• Inadequate burn-in
• Aggressive design for power/performance/reliabilit
  y
• Low-cost method to detect/recover from all
  sources of failure?
• Reliability problem pervasive across many markets
• Traditional solutions (e.g. nMR) too expensive
• Must incur low performance, power overhead

3
A Low-Cost, Unified Reliability Solution

• Need handle only faults that propagate to
  software
• Hardware faults appear as software bugs
• Leverage software reliability solutions for
  hardware?
• One-size-fits-all near-100 coverage often
  unnecessary
• Solution must be customizable to application
  needs

4
Outline

• Motivation of Framework
• Unified Framework for H/W S/W Reliability
• Understanding the Impact of H/W Failures on S/W
• Future Work

5
Unified Framework for H/W S/W Reliability

• Unified hardware/software co-designed framework
• Tackles hardware and software faults
• Software-centric solutions with near-zero H/W
  overhead
• Customizable to app needs, flexible for new error
  sources

6
Framework Components

• Detection Software symptoms, online testing
• Recovery Software/hardware checkpoint and
  rollback
• Diagnosis Firmware layer for rollback/replay,
  online testing
• Repair/reconfiguration Redundant, reconfigurable
  hardware
• Need to understand how hardware faults propagate
  to S/W
• How do hardware faults become visible to
  software?
• What is the latency?
• Do H/W faults affect application and/or system
  state?

7
Methodology

• Microarchitecture-level fault injection
• Trade-off between accuracy and simulation time
• GEMS timing models for out-of-order processor,
  memory
• Simics full-system simulation of Solaris
  UltraSPARC III
• SPEC workloads for ten million instructions
• Fault model
• Stuck-at, bridging faults in many micro-arch
  structures
• Fault detection
• Crashes detected through hardware generated fatal
  traps
• Misaligned memory access, RED state, watchdog
  reset, etc.
• Hangs detected using simple hardware hang detector

8
How do Hardware Faults Propagate to Software?

• 97 faults (w/o FPU) detectable with simple H/W
  S/W
• Need H/W support or S/W monitoring for FPU

9
How do Hardware Faults Propagate to Software?

• 97 faults (w/o FPU) detectable with simple H/W
  S/W
• Need H/W support or S/W monitoring for FPU
• gt 50 crashes/hangs in OS

10
S/W Components Corrupted

• 62 of faults corrupt system state
• Need to recover system state

11
Latency to Detection from Application Corruption
Total instructions executed between app state
corruption and detection

• 80 have latency lt 100K instr, amenable to H/W
  recovery
• Buffering for 50µs on 2 GHz processor
• May need to use software checkpoint/recovery for
  others

12
Latency to Detection from OS Corruption
OS-only instructions executed between OS state
corruption and detection

• 92 of injections result in latency of lt 100K OS
  instructions
• Amenable to hardware recovery

13
Summary so far

• Hardware faults highly visible
• Over 97 of faults in 6 structures result in
  crashes/hangs
• Simple H/W and S/W sufficient
• Recovery through checkpointing
• S/W and/or H/W checkpoints for application
  recovery
• H/W checkpoints and buffering for OS recovery

14
Next Steps (1 of 3)

• Improving understanding of fault propagation
• Accurate fault models, effect of transients,
  intermittents
• Lower-level simulations
• Better workloads
• Detection
• More software level monitoring
• Software signals, invariants, perturbations,
• H/W support to aid detection in some structures
  (e.g., FPU)
• Selective backup testing
• Recovery
• Enhanced detection may reduce latency
• Explore software vs. hardware, application
  customizability

15
Next Steps (2 of 3)

• Diagnosis
• Assume rollback/restart mechanism, multicore
  system

Bug detected
Rollback to previous checkpoint, restart on
original core
Original symptom doesnt recur
Original symptom recurs
Transient h/w bug, or non-deterministic s/w
bug Continue execution
Deterministic s/w bug, or Permanent h/w bug
Rollback, restart on different core
No symptom
Symptom
Permanent defect in original core
Deterministic s/w bug
16
Next Steps (3 of 3)

• Repair/reconfigure
• What should be the right field configurable unit?
• Core, FU, array entries?
• Avoidance
• Dynamic reliability management
• Implementation architecture
• Hardware firmware OS
• Itanium machine check architecture has hooks

17
Thank You

• Questions?

18
Backup Slides
19
Types of fatal traps

• Faults cause different fatal traps thrown before
  crashes
• Junk data access leads to memory misalignment
• Repeatedly trapping leads to RED state
