Title: Paradoxes on Instantaneous Frequency


1

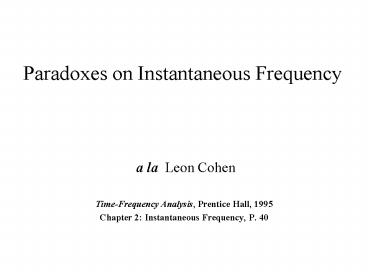

Paradoxes on Instantaneous Frequency
  • a la Leon Cohen
  • Time-Frequency Analysis, Prentice Hall, 1995
  • Chapter 2 Instantaneous Frequency, P. 40

2
The Five Paradoxes
  • 1. Instantaneous frequency of a signal may not be
    one of the frequencies in the spectrum.
  • 2. For a signal with a line spectrum consisting
    of only a few sharp frequencies, the
    instantaneous frequency may be continuous and
    range over an infinite number of values.
  • 3. Although the spectrum of analytic signal is
    zero for negative frequencies, the instantaneous
    frequency may be negative
  • 4. For the band limited signal the instantaneous
    frequency may be outside the band.
  • 5. The value of the Instantaneous frequency
    should depend only on the present time, but the
    analytic signal, from which the instantaneous
    frequency is computed, depends on the signal
    values for the whole time space.

3
Observations I
  • By spectrum, Cohn is limiting the term to
    Fourier spectrum.
  • By instantaneous Frequency, Cohn is limiting
    the terms to be the IF obtained through Hilbert
    Transform. In fact, as we see, IF could be
    determined through many other methods.

4
Observations II
  • 1. Paradoxes 1, 2 and 4 are essentially the
    same Instantaneous Frequency values may be
    different from the frequency in the spectrum.
  • 2. The negative frequency in analytic signal
    seems to violate Gabors construction.
  • 3. The analytic function, or the Hilbert
    Transform, involves the functional values over
    the whole time domain therefore, it is not
    local.

5
Resolution for paradoxes 1, 2 and 4
  • Two Examples

6
The First Example
  • Sin A cSin B

7
Data Sin (pt/360) Sin (pt/320) t023040
8
Hilbert Spectrum X
9
Spectrogram X
10
Morlet Wavelet X
11
Instantaneous frequency X
12
Instantaneous frequency X Details
13
Marginal Spectra X
14
Data Sin (pt/360) 0.8 Sin (pt/320)
t023040
15
Hilbert Spectrum X08
16
Marginal Spectra X08
17
Two ways to view modulated wave
18
New developments
  • G. RILLING, P. FLANDRIN, 2008  "One or Two
    Frequencies? The Empirical Mode Decomposition
    Answers, IEEE Trans. on Signal Proc., Vol. 56,
    No. 1, pp. 85-95.
  • .close tones are no longer perceived as such
    by the human ear but are rather considered as a
    whole, one can wonder whether a decomposition
    into tones is a good answer if the aim is to get
    a representation matched to physics (and/or
    perception) rather than to mathematics.

19
Example
20
General case
21
Derivatives of HF and LF components
Af lt 1
Af2 gt 1
22
Numerical experiments
23
Numerical Experiments C
24
Numerical Experiments C
25
One or two-frequency?
  • Mathematically, if we select strict Fourier
    basis, it is two-frequency signal.
  • Physically, it is a modulated one frequency
    signal.
  • Using EMD, we could separate the signal, if the
    amplitude-frequency combination satisfies certain
    condition, the condition coincides with physical
    perception.

26
Example 2
  • Duffings Pendulum

27
Duffing Pendulum
x
28
Duffing Type Wave Data x cos(wt0.3 sin2wt)
29
Duffing Type Wave Perturbation Expansion
30
Duffing Type Wave Wavelet Spectrum
31
Duffing Type Wave Hilbert Spectrum
32
Duffing Type Wave Marginal Spectra
33
Duffing Equation
34
Duffing Equation Data
35
Duffing Equation IMFs
36
Duffing Equation IMFs
37
Duffing Equation Hilbert Spectrum
38
Duffing Equation Detailed Hilbert Spectrum
39
Duffing Equation Wavelet Spectrum
40
Duffing Equation Hilbert Wavelet Spectra
41
Duffing Equation Marginal Hilbert Spectrum
42
Rössler Equation
43
Rössler Equation Data
44
Rössler Equation 3D Phase
45
Rössler Equation 2D Phase
46
Rössler Equation IMF Strips
47
Rössler Equation IMF
48
Rössler Equation Hilbert Spectrum
49
Rössler Equation Hilbert Spectrum Data Details
50
Rössler Equation Wavelet Spectrum
51
Rössler Equation Hilbert Wavelet Spectra
52
Rössler Equation Marginal Spectra
53
Rössler Equation Marginal Spectra
54
Resolution for Paradox 3
  • Negative Frequency

55
Examples of Negative Frequency 1
  • Different references

56
Hilbert Transform a cos ? b Data
57
Hilbert Transform a cos ? b Phase Diagram
58
Hilbert Transform a cos ? b Phase Angle
Details
59
Hilbert Transform a cos ? b Frequency
60
The Empirical Mode Decomposition Method and
Hilbert Spectral AnalysisSifting
61
Examples of Negative Frequency 2
  • FM and AM Frequencies
  • a sin ? t b sin f t

62
sin ? t 0.4 sin 4 ? t
63
Hilbert sin ? t 0.4 sin 4 ? t
64
sin ? t sin 4 ? t
65
Hilbert sin ? t sin 4 ? t
66
a sin ?t b sin ft
  • The data need to be sifted first.
  • Whenever Hilbert Transform has a loop away from
    the original (negative maximum or positive
    minimum), there will be negative frequency.
  • Whenever the Hilbert pass through the original
    (both real and imaginary parts are zero), there
    will be a frequency singularity.
  • Hilbert Transform is local to a degree of 1/t.

67
IMF sin ? t 0.2 sin 4 ?
68
IMF sin ? t 0.4 sin 4 ?
69
IMF sin ? t sin 4 ?
70
Negative Frequency
  • Negative instantaneous frequency values are
    mostly due to riding waves.
  • IMF is a necessary (but not a sufficient)
    condition for having non-negative frequency.
  • There are occasion when abrupt amplitude change
    in an IMF (but no riding waves) can also generate
    negative frequency. The amplitude induced problem
    is covered by Bedrosian theorem normalized HHT
    will take care of it.
  • Physically, the abrupt amplitude change also
    shows the non-local characteristics of the
    Hilbert Transform.

71
Resolution for Paradox 5
  • Non-local influence does exist, they may come
    from Gibbs Phenomenon, end effects, and the
    limitation of the 1/t window in the Hilbert
    Transform. But most of the problems can be
    rectified through the Normalized HHT.
  • In fact, the non-local property of Hilbert
    transform is fully resolved by Quadrature method,
    though the solution is no longer a Hilbert
    Spectrum.

72
Data with magnitude jump Signal
73
Data with magnitude jump Signal
74
Hilbert Spectrum
75
Spectrogram
76
Morlet Wavelet
77
Data with magnitude jump
78
Data with magnitude jump Details
79
Normalized Hilbert Spectrum
80
Amplitude Effects on Marginal Hilbert Fourier
Spectra
81
Instantaneous frequency
82
Instantaneous frequency Details
83
Summary The so called paradoxes are really not
problems, once some misconceptions are clarified
  • Instantaneous Frequency (IF) has very different
    meaning than the Fourier frequency.
  • IF for special mono-component functions only
    IMFs a necessary but not a sufficient condition.
  • Even for IMFs, there are still problems
    associated with IF through Hilbert Transform. We
    can rectify most of them with the Normalized HHT.
  • The better solution is through quadrature.
