Stefan Wiemer

1

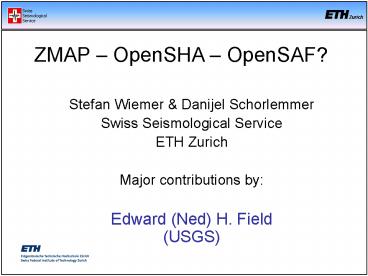

ZMAP OpenSHA OpenSAF?
Stefan Wiemer Danijel Schorlemmer Swiss
Seismological Service ETH Zurich Major
contributions by Edward (Ned) H. Field(USGS)
2
Outline

• ZMAP a 10 year old idea/software for seismicity
  analysis.
• OpenSHA A new concept in Seismic Hazard
  Assessment.
• OpenSAF Dreaming on

3
ZMAP

• Developed since 1993 with the intention of
  providing a GUI based seismicity analysis
  software. Mostly a research tool.
• Described in an Seismological Research Letter
  article in 2001.
• Matlab based, Open Source (about 100.000 lines of
  codes in 700 scripts).
• About 100 150 users worldwide, used in about 50
  - 70 publications.

4
ZMAP - capabilities

• Standard Tools Maps, Histograms, cross-sections,
  Time series etc.
• Earthquake catalog quality and consistency.
  Magnitude shifts, completeness, blast
  contamination, etc. Real-time potential.
• Rate change analysis, mapping of rate changes in
  space-time. Significance.
• b-value analysis, mapping of b as a function of
  space and time.
• Aftershock sequence analysis. Time dependent
  hazard assessment.
• Stress tensor inversion based on focal mechanism
  data.
• Time to failure analysis.
• Fractal dimension analysis, mapping of D.

5
(No Transcript)
6
(No Transcript)
7

• b-values along the SAF Highly spatially
  heterogeneous

8
Example Mc after Landers
Completeness in the hours and days after a
mainshock is considerably higher. Could this be
improved?
9
Example Spatial variability of Mc

• Completeness is temporally and spatially highly
  heterogeneous.
• A detailed Mc(x,y,z,t) history should be
  constructed, maintained by the networks?

10
Example Parkfield magnitude shift?

• What happened around 1995 to the catalog of the
  Parkfield section of the San Andreas fault?
• Catalogs should be monitored routinely in the
  future to detect man-made (and natural)
  transients early on.

11
ZMAP what worked well

• Matlab based Efficient development, expandable,
  widely available, largely platform independent.
• Addresses a definite need in the seismological
  community.
• Nice research tool for those who know how to use
  it.

12
ZMAP limitations

• Too complex. Not stable enough.
• No systematic users support (lately Very limited
  support).
• No dedicated financial support to develop and
  maintain the software.
• Difficult to embed other codes (wrappers work
  sort of, e.g., stress tensor inversions).
• Does not work in parallel mode.

13
ZMAP summary

• Has reached the end of its lifecycle?
• What would a new generation seismicity analysis
  software do?
• Can we make it GRID based? (Simulations can take
  days to weeks)
• Can we make it object oriented?

14
Creating a Distributed, Community-Modeling
Environment in Support of the Working Group for
the Development ofRegional Earthquake
Likelihood Models(RELM)
Edward (Ned) H. Field(USGS)Thomas H.
Jordan(USC)
15
OpenSHAA Developing, DistributedCommunity-Model
ing Environment for Seismic Hazard Analysis
Design Criteria open source, web enabled,
object oriented.
Implementation Java XML, although the
framework is programming-language independent,
and some components will be wrapped
legacy code (e.g., WG99 Fortran code).
16
Source Attenuation Site Hazard
17
Seismic Hazard Analysis

• Earthquake-Rupture
• Forecast
• Probability in time and
• space of all M5 ruptures

(2) Ground-Motion Model
Attenuation Relationships
Full waveform modeling
18
OpenSHA
Web Site http//www.OpenSHA.org
SHA Framework SRL submission (Field, Jordan,
Cornell)
Design Evaluation SCEC Implementation Interface
Code Development Ned Field, Sid Hellman, Steve
Rock, Nitin Gupta, Vipin Gupta
Validation PEER Working-Group Test Cases
19
(No Transcript)
20
OpenSHA Objects
Time Span
Desired output is the probability that something
of concern will happen over a specified time span
Earthquake- Rupture Forecast
Generates Rupture Sources
IM
Rupn,i
Site
Type, Level
Each Source has N Earthquake Ruptures
Sourcei
Intensity-Measure Relationship
Probability of occurrence
21
OpenSHA Objects
Intensity-Measure Type/Level a specification of
what the analyst (e.g., engineer) is worried about
Time Span
Earthquake- Rupture Forecast
Generates Rupture Sources
IM
Rupn,i
Site
Type, Level
Each Source has N Earthquake Ruptures
Sourcei
Intensity-Measure Relationship
Probability of occurrence
22
OpenSHA Objects
Site Prob. Eqk Rupture The two main physical
objects used in the analysis
Time Span
Earthquake- Rupture Forecast
Generates Rupture Sources
IM
Rupn,i
Site
Type, Level
Each Source has N Earthquake Ruptures
Sourcei
Intensity-Measure Relationship
Probability of occurrence
23
OpenSHA Objects
Time Span
Intensity-Measure Relationship One of the major
model component (a variety available or being
developed).
Earthquake- Rupture Forecast
Generates Rupture Sources
IM
Rupn,i
Site
Type, Level
Each Source has N Earthquake Ruptures
Sourcei
Intensity-Measure Relationship
Probability of occurrence
24
OpenSHA
Eqk Rupture Forecast The other main model
components (A variety being developed in RELM).
Time Span
Earthquake- Rupture Forecast
Generates Rupture Sources
IM
Rupn,i
Site
Type, Level
Each Source has N Earthquake Ruptures
Sourcei
Intensity-Measure Relationship
Probability of occurrence
25
Web-Based Tools for SHA
Time Span
Earthquake- Rupture Forecast List of
Adjustable Parameters
Intensity-Measure Relationship List of Supported
Intensity-Measure Types List of
Site-Related Independent Parameters
Site Location List of Site- Related Parameters
Intensity Measure Type Level (IMT IML)
Hazard Calculation
Prob(IMTIML)
26
Source List
Time Span
Network Earthquake Catalog
Fault Activity Database
Earthquake Forecast
GPS Data (Velocity Vectors)
Historical Earthquake Catalog
Community Fault Model
27
OpenSHA
We want the various models and community
databases to reside at their geographically
distributed host institutions, and to be run-time
accessible over the internet.
This is an absolute requirement for making the
community modeling environment both usable and
manageable.
28
OpenSHA
Building this distributed, community-modeling
environment raises several issues that we dont
presently know how to deal with

• The distributed system must be easy to use, which
  means hiding details as much as possible.
• Analysis results must be reproducible, which
  means something has to keep track of all those
  details.
• Computations must be fast, as web-based users
  arent going to want to wait an hour for a hazard
  map or synthetic seismograms.
• Well need a mechanism for preventing erroneous
  results due to unwitting users plugging together
  inappropriate components.

29
(No Transcript)
30
The SCEC ITR collaboration is helping
(a few examples and lots of )
Grid Computing To enable run-time access to
whatever high performance computing resources are
available at that moment.
31
The SCEC ITR collaboration is helping
(a few examples)
Knowledge Representation and Reasoning
(KRR) To keep track of the relationships among
components, and to monitor the construction of
computational pathways to ensure that compatible
elements are plugged together.
32
The SCEC ITR collaboration is helping
(a few examples)
KRR and Digital Libraries To enable smart
eDatabase inquiries (e.g., so code can
construct an appropriate probability model for a
fault based on the latest information found in
the fault activity database).
33
The SCEC ITR collaboration is helping
(a few examples)
Digital Libraries To enable version tracking
for purposes of reproducibility in an environment
of continually evolving models and databases.
34
OpenSHAA Community-Modeling Environment for
Seismic Hazard Analysis

• An infrastructure for developing and testing
  arbitrarily complex (physics based system level)
  SHA components, while putting minimal constraints
  on (or additional work for) the scientists
  developing the models.
• Provides a means for the user community to apply
  the most advanced models to practical problems
  (which they cannot presently do).

(summary)
35
OpenSHA
More info available at http//www.OpenSHA.org
36
(No Transcript)
37
Back to good old Europe

• What can we learn from OpenSHA for ZMAP?

38
NERIS offered an opportunity

• N6 - Task B. Building the foundation for a
  community based Seismicity Analysis Framework
  (OpenSAF).
• The information contained in modern earthquake
  data sets is currently exploited by seismologists
  using a variety of independent tools (e.g.,
  SSLib, ZMAP, Wizmap, GMT, Slick, Coulomb 2.2)
  which have no interoperability or
  standardization. Better and more efficient
  exploitation of this information requires
  integrating set of modern, interactive,
  easy-to-use and accessible tools for
  visualization, quality assessment, data mining,
  statistical modeling, quantitative hypothesis
  evaluation and many other tasks. Such integration
  could be provided by a seismic data analysis
  framework (OpenSAF) - a centralized, Internet
  ready platform for accessing visualization and
  analysis tools. OpenSAF would be designed to
  interoperate closely with OpenSHA.

39
The Future

• I learned I am more objective-oriented, not
  object-oriented.
• Developing OpenSAF in Java (or similar) would, in
  our opinion, be a laudable objective however, it
  would require a sustained effort and significant
  financial support. Is it worth it in this case?
  Or should we stick to a high level language?
• Where could the support come from? How can one
  make it a community-supported, sustainable
  effort?

40
The Future

• The alternative might be a new, modular, Matlab
  based research program that avoids the mistakes
  of the old ZMAP, and the ability to build
  stand-alone, streamlined modules for specific
  tasks (monitoring of completeness, rate changes,
  artifacts ). A license fee from users that
  raises about 1 man-year might be feasible.

The End
