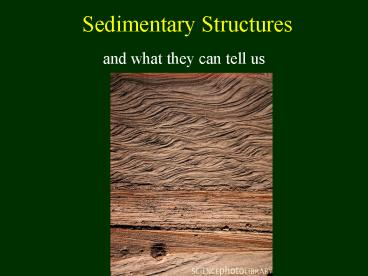

Sedimentary Structures

1
Sedimentary Structures

• and what they can tell us

2
Two Types

• Primary
• Produced by the currents that deposit the
  sediment
• Secondary
• Produced after the sediment has been deposited

3
Graded Bedding
(fining upward sequence)
UP
4
Graded bedding is typical of turbidites
Turbulent mixtures of sand, gravel, mud and
water that are produced by submarine landslides,
deposits fine upward and basinward, submarine
mudflows/debris flows
Bouma Sequence
Distalfar from source
Proximalclose to source
5
Distal Turbidites (Washington coast)
Scour surface
White sand, coarser
Gray shale, finer
6
Mud cracks are concave UP
7
Scour and Fill

• Process by which sediments (channel usually) are
  excavated by the action of current or high flow
  subsequent flow results in deposition and filling
  of the scour.

8
Current direction indicators
DOWNSTREAM
Asymmetric Ripple-marks
Steeper slope is downstream
DOWNSTREAM
Imbricated clasts
Elongate clasts dip upstream (pushed like falling
dominoes)
9
Ripples
Assymetrical Ripples
Symmetrical Ripples
Diagrams by Stephen A. Nelson Tulane University
10
Cross-beds tell current direction and sometimes
UP direction
Caused by avalanching sand down lee slope of
wave-like structures
DOWNSTREAM
Note that cross-beds are cut off on top,
asymptotic at bottom
11
Sand Waves

• Large Scale Ripples
• Straight Crests
• Planar Crossbeds

Diagrams by Stephen A. Nelson Tulane University
12
Dunes

• Large Scale ripples
• Sinuous crests
• Form trough crossbeds

13
Cross-beds in wind-blown dunes, Supai Sandstone,
Sedona AZ
14
Cross-beds in unlithified sands
15
Cross-beds and laminar beds in beach rock
16
Flute Casts Spoon-shaped sole markings on
bottom of beds, commonly caused by turbidity
currents
Top view
Side view
deepest
DOWNSTREAM
DOWNSTREAM
Flute casts are preserved on the bottom of
overlying sand beds
17
Examples of flute casts note flute shape(?)
18
Trace fossilstracks of organisms
19
Dinosaur Tracks, Tazones, Spain
dinoturbation
20
Soft-sediment deformation
21
Load casts or ball-and-pillow structures tell WAY
UP
22
This is just the beginning of what one can learn
from sedimentary structures (more in Strat/Sed)
