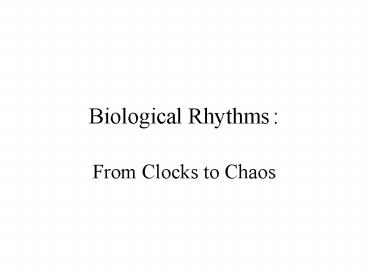

Biological Rhythms:

1
Biological Rhythms

• From Clocks to Chaos

2
Henri Poincaré started it all
3
Norbert Wiener Cybernetics
4
Late 1975


5
Outline

• Homeostasis -- in many forms
• Biological oscillators
• Starting and stopping oscillators (Bifurcations
  in physiological dynamics)
• Forcing oscillators Single vs. Periodic
• Conclusions

6
Outline

• Homeostasis in all of its forms
• Biological oscillators
• Starting and stopping oscillators (Bifurcations
  in physiological dynamics)
• Forcing oscillators Single vs. Periodic

7
Homeostasis
8
Externally Induced Fluctuations
9
Ion Channel Current Fluctuations
10
Spontaneous Fluctuations
11
Noise vs. Chaos
12
Outline

• Homeostasis in all of its forms
• Biological oscillators
• Starting and stopping oscillators (Bifurcations
  in physiological dynamics)
• Forcing oscillators Single vs. Periodic

13
Maintained by a periodic process
14
Different Perturbations Different Effects
15
Homeostatis in the Kidney
16
Islets of Langerhorns Constant Glucose Stimulus
17
Mutual Inhibition in the LobsterCells 1 2 both
active but they inhibit each other
18
Same in the Mouse Spinal CordReciprocal Neural
Oscillators
19
Making the Pupil OscillateA negative feedback
system
20
Neural Inhibition
21
Outline

• Homeostasis in all of its forms
• Biological oscillators
• Starting and stopping oscillators (Bifurcations
  in physiological dynamics)
• Forcing oscillators Single vs. Periodic

22
Gut Tapping in to an Oscillator
23
Soft Excitation(Supercritical Hopf Bifurcation)
Cardiac Cell Model (McAllister, Noble, Tsien)
24
Schematically
25
More Soft Excitation
Lung volume Phrenic activity
26
Still More Soft Excitation
27
Female orgasm
28
Visual HysteresisHard Excitation?
29
Hard Excitation(Subcritical Hopf Bifurcation)
30
Male orgasm
31
Outline

• Homeostasis in all of its forms
• Biological oscillators
• Starting and stopping oscillators (Bifurcations
  in physiological dynamics)
• Forcing oscillators Single vs. Periodic

32
Single Pulse Perturbation--Heart
33
Single Pulse Perturbation--Squid
Annihilation of action potentials
Annihilation of action potentials with residual
signs of limit cycles
34
Periodic Perturbation/Forcing
35
Conclusions
Homeostasis can be like a (mathematical) steady
state
Varieties of homeostasis steady, oscillating,
??chaotic??
Types of bifurcations Soft and Hard
Direct analogies between behaviour and
mathematical properties
Understanding normal biological properties ?
understand disease
Every example has been studied mathematically
36
Next LecturePeriodic Dynamic Diseases
Bifurcations at the Bedside
