Compression of Concatenated Web Pages Using XBW

1

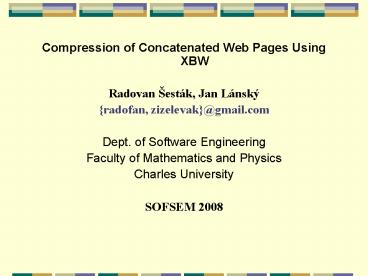

• Compression of Concatenated Web Pages Using XBW
• Radovan esták, Jan Lánský
• radofan, zizelevak_at_gmail.com
• Dept. of Software Engineering
• Faculty of Mathematics and Physics
• Charles University
• SOFSEM 2008

2
Synopsis

• Motivation
• Project XBW
• Structure
• Implemented methods
• Results
• surprising results
• Conclusion

3
Motivation

• EGOTHOR
• 15-20 MB files
• 1000 HTML pages
• Non-well-formed XML in UNICODE
• Text compression XML compression
• Large alphabet (words, syllables)
• XML tags processing

4
Structure

• Parser
• Dictionary / Trie
• BWT
• MTF

• RLE
• LZC, LZSS
• PPM
• AC, HC

All methods work over large alphabet
5
Structure
6
Parser

• UNICODE other encodings
• XML structure
• Can process non-well-formed XML files
• Dictionaries (D1) of used tag and attribute names
• We dont need encode explicit
• Large alphabet of elements
• Element symbol, syllable, or word
• Dictionaries of used elements (D2)
• We need encode explicit
• D1 ? D2

7
Dictionary of Elements

• Element symbol, syllable, or word
• Dictionary
• Represent in memory by trie structure
• Each element gets unique number
• Decompression into linked list
• Compression by methods TD2 a TD3

8
Dictionary - TD2

• Trie We go recursive (Deep first search) from
  root to nodes.
• We encode for each node
• Number of sons,
• Whatever string (from root to this node)
  represent a member of string set.
• For first son of each node we encode its value.
  For second and following sons we encode
  difference of values from previous brother.
• Coded values are small and repetitive
• The same prefix of two words is written only once

9
Dictionary - TD2
10
BWT

• Burrows Wheeler transformation
• Output is permuted input
• Similar prefixes are grouped together
• Effective only for large blocks
• Combination BWTMTFRLE
• Bzip
• ABRACADABRACA is transformed into CDARRCAAAAABB

11
BWT

• Encoding
• Compression speed is dependable on repetitiveness
  of input file
• We have implemented different sorting methods
  (see more in DCC 2008)
• Seward O(n2 log n)
• Sadakane O(n log n)
• Karkkainen O(n)
• Decompression is in linear time

12
MTF

• Move to Front
• Init Ordered list (L) of all symbols of input
  alphabet
• Step One symbol is read form input file and its
  order in L is written to output. Symbol is moved
  to front in list L.
• String ABCADAD is encoded as 0123411
• Data structure splay tree

13
RLE

• Run-length coding
• Tree or more same symbols in row in the file are
  replaced by one triplet
• Special symbol
• Repetitive symbol
• Length of repetition
• RLE versions 1,2,3 difference in encoding this
  triplet
• Compression and decompression are running in
  linear time.

14
RLE

• Versions have different memory requirements
• First version O(1)
• Second version O(n), where n is alphabet size
• string 0001000011112222222 gt 19 symbols
• version 1 special symbol
• 0001041427 gt 13 symbols
• version 2 special symbols 3, 4, 5 as shortcuts
  for 0, 1, 2
• 331344457 gt 9 symbols

15
LZC

• Dictionary compression method, based on LZ78
• Init Dictionary is filled by all symbols of
  alphabet
• Step
• From input is read maximal string S which can be
  found in dictionary.
• String FC is inserted into dictionary, C is
  symbol which followed F in input file.
• Number of index of phase in dictionary is set to
  output.

16
LZC

• Input file CABBADCABBADCAB
• Step number of algorithm step
• Index index of phrase in dictionary
• Position position in input file

17
LZSS

• Dictionary compression method, based on LZ77
• Repetitive sequences of symbols are stored in
  dictionary. Their occurences in sliding window
  are replaces by pointer to dictionary.
• Dictionary is part of compressed file
• Sliding window is prefix of uncompressed file
• Init sliding window is filled by space

18
LZSS

• Step
• We search a string in dictionary, which is equal
  with prefix of sliding window.
• We encode one bit indicator and string (P,L) or
  symbol C
• Data structure Binary search tree

19
PPM

• Lossless compression method
• Good results for text compression in natural
  languages
• High memory requirements
• For word and syllable versions very high
• Experiment in XBW let us PPM to output from BWT

20
PPM

• Based on adaptive statistical model
• Context length 0-N (N parameter)
• Step
• We start in context of length N.
• If current symbol occurs there, it is encoded by
  AC.
• Else we try context N-1
• Last context is -1, where all symbols have
  probability 1/(alphabet size)

21
Corpus
22
Results

• In paper 12 tables, 3 pages
• Compression ratio, Compression speed and
  decompression speed for
• BWTMTFRLEAC (best results)
• LZSS, LZC, PPM
• Over alphabet of Symbols, syllables, words
• Parser text mode, XML mode, binary

23
Results

• XBW Text mode, words, Kao for BWT

24
Results

• Comparation XBW and bzip2
• XBW words, blocks 20 MB, Kao for BWT
• XBW has twice better compression ration than
  bzip2
• XBW has compression time only twice worse than
  bzip2, decompression time has 2.5 times worse
  than bzip2.

25
Surprising results

• For large text files
• Words and syllables have better compression ratio
  than symbols
• Words and syllables have simular compression
  ratio.
• Compression speed forwords is best.

26
Surprising results

• Effect of XML parser is decreasing with
  increasing size of block. At 20 MB blocks was
  very small.
• Influence of MTF before LZ
• Usage of MTF after BWT has different effect on
  LZSS and LZC
• Compression ratio is rapidly fallen when we use
  MTF without BWT

27
Conclusion

• For Compression concatenated HTML pages we
  recomand (default XBW setings)
• BWTMTFRLEAC,
• BWT Kaos algorithm, RLE version 2
• Parser XML or text mode, words
• XBW
• http//xbw.sourceforge.net/
• High modularity, good testing tool
• We are still improving XBW
