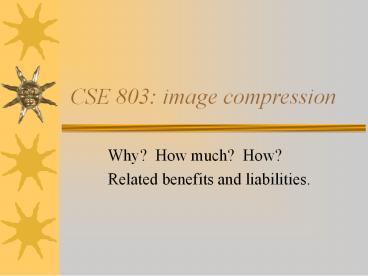

CSE 803: image compression

1
CSE 803 image compression

• Why? How much? How?
• Related benefits and liabilities.

2
topics

• color table concept .gif files
• brief notes on .jpg / wavelets, etc.
• motion-JPG concept
• metric for matching image regions
• motion compensation in MPG

3
Color table cheaper graphics

• image has 8-bit pixels
• each 8-bit number is an index into a color look
  up table
• can change colors without changing image

512 x 512 RGB image with 3x8-bit color values
requires 750K Bytes. 512 x 512 8-bit codes 256K
Bytes 256 x 3x8-bit color table 257K Bytes
4
GIF image format imagetable (plus other stuff)

• header information
• color table
• image pixels (up to 8 bits each) LZW compressed
• RGB data is stored in the color table and NOT
  in the image pixels themselves
• get good compression and ability to quickly
  change the colors
• there are only 256 different colors for any
  single image, but table RGB triples can be
  changed
• gif files are very good for line drawings

5
Types of compression

• Lossless no information is lost every bit of
  the original image can be recovered.
• if an image has no more than 256 different color
  triples in it, then color table can exactly
  recreate it.
• Lossy information is approximated the original
  image cannot be recovered exactly.
• Suppose there are 1000 color triples in the
  original image but we replace each by the closest
  one of a set of 256 triples in color table e.g.
  (218, 58, 150) ? (220, 60, 150)

6
JPG primarily lossy

• approximate 8 x 8 image blocks by sums of
  cosine waves
• replace 64 intensities by coefficients
• suppose 1.3 cos ( f(x,y) ) 2.5 cos (g(x,y)) is
  a good approximation to the 8 x 8 intensity
  surface then we only store 1.3 and 2.5.
• 2 coefficients replace 64 intensities

7
Interesting sidebar

• can find 15 faces F1, F2, , F15
• such that your face looks like a1F1a2F2
  a15F15.
• therefore, your face is compressed to 15 numbers
  (weights)
• example below uses an average of only 4 faces
• how to find the basis F1, F2, , F15 requires
  complex math and computing

8
Eigenfaces concept
9
Blackboard work on block matching

• sum of squared pixel differences
• mean-squared difference
• sum of absolute values of pixel differences
• all of the above are 0 when blocks are the same
• all of the above get large as more pixels are
  different between the images

10
MPEG motion compression
Video frame N and N1 shows slight movement most
pixels are same, just in different locations.
11
Can code frame Nd with displacments relative to
frame N

• for each 16 x 16 block in the 2nd image
• find a closely matching block in the 1st image
• replace the 16x16 intensities by the location in
  the 1st image (dX, dY)
• 256 bytes replaced by 2 bytes!

12
Frame approximation
Left is original video frame N1. Right is set of
best image blocks taken from frame N. (Work of
Dina Eldin)
13
Best matching blocks between video frames N1 to
N (motion vectors)
The bulk of the vectors show the true motion of
the airplane taking the pictures. The long
vectors are incorrect motion vectors, but they do
work well for image compression!
Best matches from 2nd to first image shown as
vectors overlaid on the 2nd image. (Work by Dina
Eldin.)
14
Motion vectors clustered to show 3 coherent
regions
All motion vectors are clustered into 3 groups of
similar vectors showing motion of 3 independent
objects. (Dina Eldin)
15
Flow vectors resulting from camera motion
Zooming a camera gives results similar to those
we see when we move forward or backward in a
scene. Panning effects are similar to what we see
when we turn.
16
The Decathlete game
(Left) Man makes running movements with
arms. (Right) Display shows his avatar running.
Camera controls speed and jumping according to
his movements.
17
Program interprets motion

• Opposite flow vectors means RUN speed determined
  by vector magnitude.
• Upward flow means JUMP.
• (c) Downward flow means COME DOWN.

18
Program analysis display
(Top left) Video frame of the player. (Middle
left) Flow from several frames. (Center) Jumping
of the hurdles over time.
19
Requirements for interest points

• Have unique multidirectional energy
• Detected and located with confidence
• Edge detector not good (1D energy only)
• Corner detector is better (2D constraint)
• Autocorrelation can be used for matching
  neighborhood from frame k to one from frame k1
• NHBD should have high energy

20
Matching interest point
Can use normalized cross correlation or image
difference.
21
Moving robot sensor
2 views and edges. Bottom right shows overlaid
edge images.
22
MPEG motion compression

• Some frames are encoded in terms of others.
• Independent frame encoded as a still image using
  JPEG
• Predicted frame encoded via flow vectors relative
  to the independent frame and difference image.
• Between frame encoded using flow vectors and
  independent and predicted frame.

23
MPEG compression method
IF1 is an independent frame encoded via JPEG.
PF4 is a predicted frame. Each 16x16 block is
matched to its closest match in P and represented
by a motion vector and a difference image. Frames
B1 and B2 between I and P are represented by two
motion vectors per each 16 x 16 block.
24
Another idea

• detect change in scene by histogram change
  easier to do than match blocks
• segment video automatically Seinfeld restaurant
  vs Seinfeld apartment
• can use motion vectors to dismiss changes due
  just to panning or zooming

25
Scene change news TV
26
Detect via histogram change
(Top) gray level histogram of intensities from
frame 1 in newsroom. (Middle) histogram of
intensities from frame 2 in newsroom. (Bottom)
histogram of intensities from street
scene. Histograms change less with pan and zoom
of same scene.
27
Motion analysis on current frontier of computer
vision

• Surveillance and security
• Video segmentation and indexing (check into Alex
  Jaimes IBM work, if time)
• Robotics and autonomous navigation
• Biometric diagnostics
• Training/teaching
