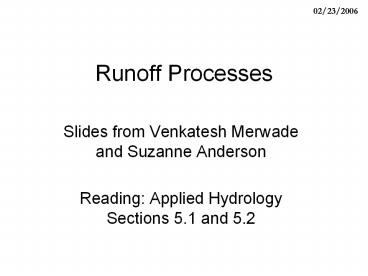

Runoff Processes

1
Runoff Processes
02/23/2006

• Slides from Venkatesh Merwade and Suzanne
  Anderson
• Reading Applied Hydrology Sections 5.1 and 5.2

2
Surface water

• Watershed area of land draining into a stream
  at a given location
• Streamflow gravity movement of water in
  channels
• Surface and subsurface flow
• Affected by climate, land cover, soil type, etc.

3
Sources of streamflow
http//uregina.ca/sauchyn/geog327/outline.html
4
Streamflow generation

• Streamflow is generated by three mechanisms
• Hortonian overland flow
• Subsurface flow
• Saturation overland flow
• Some texts mention groundwater ridging as an
  additional mechanism contributing to streamflow

5
Welcome to the Critical Zone
6
(No Transcript)
7
Critical zone architecture influences sediment
sources, hydrology, water chemistry and ecology
8
Fort Collins
The Colorado Front Range
Boulder
Golden
9
Fort Collins
The Boulder Creek watershed

• Precambrian crystalline bedrock
• Uniform climate history
• Three erosional states

Boulder
Limits of glacial and fluvial rejuvenation
Golden
10
Boulder Creek Critical Zone Observatory

• How do weathering and transport processes control
  the structure of the CZ?
• What is the impact of CZ structure on
  hydrological, geochemical and biological
  functions?

Glacial limits
Slope map draped over shaded relief.
11
(No Transcript)
12
Three experiments in one the geomorphic context
of Boulder Creek
Upper glaciated Middle steady, old Lower
rejuvenated
13
Front Range Rocky mountain surface
14
Lower Boulder Canyon-Betasso
15
Oregon Coast Range- Coos Bay
Channel head
Anderson et al., 1997, WRR. Montgomery et al.,
1997, WRR Torres et al., 1998, WRR
16
Hortonian Flow

• Sheet flow described by Horton in 1930s
• When iltf, all i is absorbed
• When i gt f, (i-f) results in rainfall excess
• Applicable in
• impervious surfaces (urban areas)
• Steep slopes with thin soil
• hydrophobic or compacted soil with low
  infiltration

Rainfall, i
i gt q
Infiltration, f
Later studies showed that Hortonian flow rarely
occurs on vegetated surfaces in humid regions.
17
Subsurface flow

• Lateral movement of water occurring through the
  soil above the water table
• primary mechanism for stream flow generation when
  fgti
• Matrix/translatory flow
• Lateral flow of old water displaced by
  precipitation inputs
• Near surface lateral conductivity is greater than
  overall vertical conductivity
• Porosity and permeability higher near the ground
• Macropore flow
• Movement of water through large conduits in the
  soil

18
Soil macropores
19
Saturation overland flow

• Soil is saturated from below by subsurface flow
• Any precipitation occurring over a saturated
  surface becomes overland flow
• Occurs mainly at the bottom of hill slopes and
  near stream banks

20
Streamflow hydrograph
Direct runoff

• Graph of stream discharge as a function of time
  at a given location on the stream

Baseflow
Perennial river
Snow-fed River
Ephemeral river
