Title: PCS channel assignment and handover schemes


1

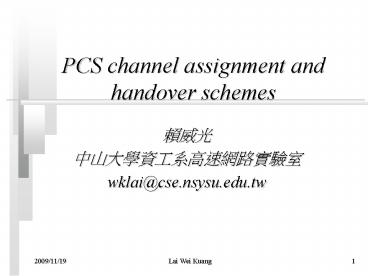

PCS channel assignment and handover schemes
  • ???
  • ??????????????
  • wklai_at_cse.nsysu.edu.tw

2
????
  • ???????
  • System Aspects of Cellular Radio
  • Channel Assignment Algorithms
  • ???????
  • ??

3
System Aspects of Cellular Radio
  • There are two main components in mobile radio
    systemsgt the radio interfacegt a fixed network
  • What makes public cellular radio complex?gt the
    control structure
  • The number of users a network can support is
    fundamentally dependent on the Common Air
    Interface (CAI) over which users communicate.

4
  • Other factsgt the amount of spectrum the
    regulators allocategt the size of the radio
    coverage area from a BSgt the amount of
    interference a particular radio link can
    tolerate.

5
System Planning in First- and Second-Generation
Systems
  • Hand Offgt Signaling between the mobile, the
    BSs, and control centers
  • Clustergt formed by cell(s)gt uses the entire
    allocated spectrum.
  • Co-channel interferencegt using the same channel
    between two mobiles.gt is contained to acceptable
    limits by the distance between the cells.

6
System Planning in First- and Second-Generation
Systems
  • If the cell sizes are decreased which causes a
    corresponding reduction in cluster size, the
    number of channels per unit area increases.
  • The most effective way of increasing network
    capacity is to decrease the cell size, but the
    complexity of the network infrastructure
    increases.

7
Growth Scenarios
  • In the start-up phase of a cellular network,
    capacity is not the problem.
  • As the network matures, capacity becomes
    increasingly important.
  • Cluster size is decreased while maintaining
    signal-to-interference ratios (SIRs) that ensure
    that link quality is acceptable.
  • Sectorization generally results in an increase in
    SIR.
  • Sectorization must be introduced with decreasing
    of cluster size.

8
Growth Scenarios
  • The minimum acceptable SIR (SIRmin) is
    system-specific.
  • By using discontinuous transmission(DTX),
    frequency hopping (FH) of the carrier and power
    control, such systems can allow lower SIRmin.

9
Microcells
  • "Microcells" are used in CT-2, PCS and DECT.
  • Conventional microcells are interconnected to
    mobile switching centers typically in a star
    configuration via standard transmission
    facilities, such as 1.5Mb/s(North-American TI
    Standard) or 2 Mb/s(European) links.
  • Some microcells are essentially "remote radiation
    sites".

10
HandOver Issues in FDMA and TDMA
  • HandOver(HO), or HandOff is the switching
    procedure when a MS changes its communication
    from one BS to an adjacent one when the received
    signal decreases below a system threshold.
  • There are two type of HOSoft HO(SHO) and Hard
    HO(HHO).
  • HHOgt break before make.gt communications of a
    MS with a BS are served before they are
    re-established with the new BS.

11
HandOver Issues in FDMA and TDMA
  • SHOgt both the existing BS and the BS that will
    ultimately assume responsibility for the call
    communicate simultaneously with the MS.
  • Preparing for an HOgt the decision when and
    where to HO must be made.gt both the handset and
    the network must switch.
  • The decision algorithm typically uses
    measurements of received signal strength
    indication (RSSI) and bit error rate (BER) to
    detect the need to HO and must identify a free
    channel in a neighboring cell.

12
HandOver Issues in FDMA and TDMA
  • Prioritized HO schemesgt some aim to minimize
    both the probability of forced termination of
    calls in progress due to HO failures, and the
    degradation in spectrum utilization.gt others aim
    at balancing or dissipating the teletraffic load
    across neighboring cells.

13
DCA in FDMA and TDMA Systems
  • FCA Fixed Channel Assignment.
  • Dynamic Channel Assignment (DCA) can in principle
    operate with FDMA or TDMA and with only modest
    enhancements to second-generation.
  • The assignment of channels may be done by a
    system that adapts to both the traffic loading at
    the BS and the interference on the channels.

14
DCA in FDMA and TDMA Systems
  • Traffic-adaptive systemgt channel borrowing in
    a traffic-adaptive system, when a cell is
    overloaded, it can use idle channel of its
    neighboring cell.gt Markov allocation assigns to
    each new call the first unused and
    non-interference channel in an order specific to
    the corresponding cell-site.

15
DCA in FDMA and TDMA Systems
  • Interference-adaptive systemgt lends itself to
    distributed DCA algorithms that are able to
    self-organize.gt The MS controls the channel
    assignment of a call without the need to
    communicate with other BSs or with a central
    controller.
  • The choice among acceptable channels is an
    important issue choosing the least-interfered
    channel provides most robust quality, while
    selection according a pre-defined order may lead
    to great capacity.

16
DCA in FDMA and TDMA Systems
  • By specifying the SIR thresholds to be higher
    than the minimum required for good link quality,
    robustness against measurement and decision
    errors may be achieved.
  • A simple algorithm used in transmitter power
    control is for each user to increase its transmit
    power when the SIR is inadequate and to decrease
    the SIR when it is more than adequate, and this
    succeeds whenever there is any set of power
    levels that allow all the stations to achieve an
    adequate SIR.

17
DCA in FDMA and TDMA Systems
  • Power control greatly enhances performance, and
    the DCA process need not cause unacceptable
    channel reassignment or call-failure rates even
    in the presence of high user demand.
  • The best way of integrating interference-adaptive
    power control with channel assignment is
    currently unknown.
  • Important issues of DCAgt re-assignment may be
    necessary.gt Delay must be controlled.gt SIR
    measurement and channel-search techniques.gt
    TDMA-based DCA requires base-to-base synchrony
    for full capacity gain.

18
Code Division Multiple Access CDMA Systems
  • Of paramount importance is the fact that CDMA
    uses single-cell clusters.
  • No frequency planning is required in CDMA
    networks due to the on-cell clusters which all
    use the same carrier frequency.
  • SHO is used in CDMA to avoid near-far problems at
    the cell-edge due to cell-membership ambiguity.
  • Softer SHO (SSHO) is used between sectors of the
    same cell.

19
Channel Assignment Algorithms
  • PCS ????
  • PCS ????
  • Wireless Resource
  • Wired Resource
  • Mobility Management Resource
  • Cells for frequency reuse

20
(No Transcript)
21
  • Channel ?????
  • Hand-off channel assignment request
  • Initial call channel assignment request
  • Channel ????????
  • Forced termination
  • Blocked call

22
  • ????
  • ??? Mobile user??,?????????????????? , ????
    Channel assignment ?????????
  • ????? NPS , RCS, FIFO, MBPS ????????????? ,
    ?????????????????????? ,???????
  • 10 Pf Po

23
(No Transcript)
24
  • ??????????
  • NPS ( Non-Prioritized Scheme)
  • RCS ( Reserved Channel Scheme)
  • Queuing Priority Scheme (QPS)
  • MBPS
  • FIFO
  • Genetic Algorithms

25
NPS ???
  • Non-Prioritized Scheme(NPS)?Handoff channel
    assignment? Initial call channel assignment????,?
    cell ?? channel???,???Forced Termination ?
    Blocked Call????? channel ????? queuing ???

26
RCS ???
  • Reserved Channel Scheme(RCS)???cell??channels????
    ,?????? Handoff ?Initial call??????? Handoff

27
Handoff area ??
  • ?????cell ??????handoff area,??handoff area
    ???,??handoff ? channel ???????channel
    ????,???queuing ???
  • ??? handoff area ?,??????? cell ?
    channel,???cell???????channel,?????handoff???,????
    ?cell???channel???handoff??????cell ?base
    station???queue?(?MS?? handoff area ?)???? cell
    ?channel???,????handoff????????Forced
    Termination????
  • FIFO , MBPS ??? handoff area ??????

28
FIFO?MBPS ???
  • ?????????? handoff area ???
  • ??queue??First In First Out (FIFO),????MS
    ??handoff area ??(?????cell ?????),?????channel???
    priority,? Measure -Base Priority Scheme (MBPS)?

29
???????
  • ????????
  • ? blocked call ? forced termination ???????
  • ??? ?? handoff ? channel ????? queueing ?? ,
    ???????? traffic load ???

30
?????????
  • ?? blocked call ? forced termination ?????
  • ???????? , ???? initial call ? handoff ???
    channel ?????? ??? ??????? , ?? channel
    ?????????????
  • ??? handoff ? initial call??? channel ?????? ,
    ???? initial call queuing ???

31
(No Transcript)
32
A. Variables 5 tc the call holding time of an
MS
tdh the channel occupation time of a handoff
call tdo the channel occupation time of a new
call tm,i the residence time of an MS at i-th
cell ??? ??tc ? the mean call holding
time. ??? ??tm,i ? the mean MS residence time
in a cell 1/? the mean degradation interval
when the MS handoffs from a cell to a neighboring
cell ?o the new call arrival rate to a cell ?h
the handoff call arrival rate to a cell
33
  • fc (tc ) the exponential density function of a
    call holding time tc
  • fm (tm,i ) the exponential density function of
    tm,i
  • fm(s) the Laplace transform of fm(tm,i)
  • Pf the forced termination probability
  • Po the new call blocking probability
  • Pc the probability that a call is completed
  • (neither blocked nor force-terminated).
  • Pnc the probability that a call is not
    completed
  • (either blocked or force-terminated)
  • E(J) the expected number of handoffs when the
    call is forced terminated
  • or successfully terminated
  • (1- Po)E(J) the expected number of handoffs
    before a call terminated
  • (either completes or is forced terminated or is
    initially blocked)

34
  • Basic assumptions
  • ?The incoming calls to an MS are a Poisson
    process.
  • ?tc is the time duration between the beginning of
    a call and the completion of a call, the call
    holding time. It is assumed to be exponentially
    distributed with a density function fc(tc) and an
    average value ??? (i.e., and Etc 1/?).

35
  • ?tm,i is the time duration that an MS stays in a
    cell i, the residence time of an MS at i-th cell.
    It is assumed to be exponentially distributed
    with a density function fm(tm,i) and an average
    value ??? (i.e., and Etm,i ???).

36
Basic Results
  • PrK k is the probability of a K-handoff call
    ?????1 ? fm (?)2?fm(?)k?1 (1)

  • (2)
  • Etdh Etdo 1 ? ?? ? ?)? (3)
  • ?h ??1 Po??? ? ?Pf ) ?0 (4)

37
  • Pnc 1 (1 Po)/(1 ?Pf /?) (5)

38
  • Pc (the probability that a channel is
    available for initial access) (the probability
    that every handoff access is successful during
    the call holding time)


  • (7)
  • Pc ( 1 - Po ) ( 1 Pf ) Ek
  • Po initial call channel ????????
  • Pf handoff channel ????????
  • Ek is the expected number of handoffs during
    the call holding time if the initial call is not
    blocked and is not forced terminated during
    handoffs

39
  • A. We first derive the expected value of k.
  • E k ? (Prk i) i (i 0 ?)
  • From equation (1), Pr K k ?????1 ? fm (?
    )2? fm (? )k1
  • Let A ?????1 ? fm (? )2 and B ? fm (? )
  • E k A (B0 1) (B1 2) (B2 3)
  • E k A /(1 B)2 (because 1 2X 3X2 4X3
    1 /(1 ? X )2 )
  • ?????1 ? fm (? ) 2 1/1 ? fm (? )2
  • ??? (9).
  • Note that E(J) is equal to E(k) when Pf is zero
    and is less than E(k)
  • when Pf is not zero.

40
B. Now we can begin to derive the optimal value
of Pc and the best proportion.
  • y c?? ? ?) (10) from equation (3)
  • Let the service rate for handling handoff calls
    be x, where x ? y. Then the service rates for
    handling initial calls are y x.
  • We assume there are very few initial calls
    blocked and very few handoff calls forced
    terminated because of time-outs so they are
    negligible

41
Po 1 (y x)/?o, (y x) lt ?o (if (y x) ?
?o, then Po 0) Pf 1 (x /?h ), x lt ?h (if x
? ?h, then Pf 0) From equation (4), ?h ??1
Po??? ? ?Pf )?o We have Pf 1 (x/?h) 1
x(? ? ?Pf)/?o?(y ? x)/?o gt Pf ?(y ? x)
? x?/?y (11) From equation (8), Pc' (1 ?
Po)(1 Pf ) Ek Let Ek w Pc (1 ? Po) (1
Pf ) Ek (y x)/?o 1 ? ?(y ? x) ?
x?/?yw (? ? ?)wxw(y ? x) / (?y)w?o
42
Let C (?y)w?o and D (? ? ?)w Pc (D/C )xw(y
? x) (C, D, y, and w are constants) When xw(y ?
x) has the extreme value, the Pc has the extreme
value. We differentiate the xw(y ? x) and get the
following equation. dxw(y ? x)/dx wxw-1(y
x) xw (-1) Thus, when wxw-1(y x) xw (-1)
0, we have the extreme value. gt x (w/(w
1))y (12) If we differentiate xw(y ? x) twice, we
have the following equation. dwxw1(y x) xw
(-1) /dx w(w ? 1)xw2 (y ? x) wxw1( -1 )
wxw1 wwy/(w 1)w2(-y) lt 0 (x w y /(w
1))
43
  • The approximation to the call completion
    probability, Pc, has the nice property of easier
    computation and manipulation.
  • When the proportion of the handoff calls and the
    initial calls is w 1 (x (w/(w 1)) y), the
    alternative call completion probability, Pc, has
    the maximum value.

44
  • Pc c?/ ?o, where Ek w ???. (13)
  • The value of the approximation to the call
    completion probability is proportional to the
    number of channels on each cell and inversely
    proportional to the mean call holding time and
    the new call arrival rate to a cell. Its value is
    not dependent on the value of the mean MS
    residence time

45
C.
  • When x (w/(w 1))y, the values of the call
    completion probability and the alternative call
    completion probability are equal.

46
If we substitute equations (9) and (10) into
equation (12), we have the following equation. x
(w/(w 1))y (???)c?? ? ?)/(???) 1 c?
(14) Then we substitute equations (10) and (14)
into equation (11) and get the following
equation. Pf ?(y ? x) ? x?/?y (c?? ?
c??)/?y 0 If Pf 0, Pc Pc 1 ? P0 (15).
47
  • When Pf is not zero but close to zero, the
    difference between the call completion
    probability and the approximation to the call
    completion probability is very close to zero.

48
  • Pc
  • ? (1 Po)Pr(K 0) (1 Po) (1 Pf)Pr(K 1)
  • (1 Po) (1 Pf)2Pr(K 2) (1 P0)
    (1 Pf)w
  • (1 Pr(K 0) Pr(K 1) Pr(K w 1))
  • ? Pc Pc ? (1 Po)Pr(K 0) (1 Po) (1
    Pf)Pr(K 1) (1 Po) (1 Pf)2Pr(K 2)
  • (1 Po)(1 Pf)w1Pr(K w 1) (1 Po)
  • (1 Pf)w(Pr(K 0) Pr(K 1) Pr(K w
    1))
  • (1 Po)Pr(K 0)(1 (1 Pf)w) (1 Po)Pr(K
    1)
  • (1 Pf)(1 (1 Pf)w1) (1 Po)Pr(K
    w 1)
  • (1 Pf) w 1 (1 (1 Pf))
  • ?(1 Po)(1 (1 Pf)w)

49
  • If ? gtgt ?, then w 0. The difference between the
    call completion probability and the approximation
    to the call completion probability is equal to
    zero
  • If ? is not far larger ?, the difference is equal
    to zero only if the value of the Pf is equal to
    zero

50
  • In reality, the value of w is very close to 0 in
    most cases. For example, when the mean call
    holding time is 3 minutes and the mean portable
    residence time is 30 minutes, the value of w is
    1/10 and when the mean call holding time is 3
    minutes and the mean portable residence time is
    10 minutes, the value of w is 3/10.

51
  • ????????????????????
  • The queue size must be large enough
  • The time-out for a handoff call can not be
    adjusted
  • The time-out for an initial call can be adjusted
    within tolerable ranges

52
  • ?????????????
  • Single queue or Dual queues
  • FIFO or Priority queue
  • ? initial call time_out value ? Statistical
    Multiplexing ???????

53
  • SFTT ???
  • ???? ( Single queue )
  • channel ??????????? ( FIFO )
  • ????????( Time out )
  • ??? initial call ??( Time out )??? , ???? channel
    ?????????????

54
SFTT ???
55
SFTT ???
56
  • SPTT ???
  • ???? ( Single queue )
  • ????????( Priority )?????
  • ????????( Time out )
  • ??? initial call ??( Time out )??? , ???? channel
    ?????????????

57
SPTT ???
58
SPTT ???
59
  • DFTS ???
  • ????( Dual queue )
  • channel ??????????? ( FIFO )
  • ????????( Time out )
  • ??????(Statistical Multiplexing)?????????

60
DFTS ???
61
DFTS ???
62
  • DPTS ???
  • ????( Dual queue )
  • ????????( Priority )?????
  • ????????( Time out )
  • ??????(Statistical Multiplexing)?????????

63
DPTS ???
64
DPTS ???
65
Simulation Results
66
(a) The forced termination probability.
(b) The new call blocking probability.
(C)The call incompletion probability.
Figure 10. Performance of six schemes. The mean
MS residence time is 30 minutes. The mean call
holding time is 3 minutes. The mean degradation
interval is 18 seconds. The number of channels in
each cell is 50
67
Figure 11. The SFTT scheme with different 1/ ?
under heavy traffic.
68
Figure 12. The SFTT scheme with different 1/?
under light load
69
??
  • (1) Giving priority to handoff calls over initial
    calls would not yield better call completion
    probabilities in general
  • (2) The proportions of handoff calls and initial
    calls will influence the call completion
    probabilities

70
  • (3) The implementation of the priority scheme has
    the effect of decreasing the call incompletion
    probabilities. However, it might also have the
    negative effect of increasing the forced
    termination probabilities.

71
  • (4) The implementation of the statistical TDM has
    the effect of decreasing the call incompletion
    probabilities when the average new call arrival
    rates are high. It is because when there are many
    new calls, the ratio of initial calls and handoff
    calls served can be tuned with the statistical
    multiplexing.

72
  • (5) The average values of time-outs for initial
    calls and handoff calls are another main factor
    for the proportions between handoff calls and
    initial calls. The values of time-out for initial
    calls can be adjusted to some degree and still
    within tolerable ranges, especially when portable
    data communications becomes popular.

73
  • (6) If the new call arrival rates are not very
    high, longer average time-outs for initial calls
    have lower call incompletion probabilities. When
    the mean arrival rate is high, 80 Erlangs in our
    simulation, the longer average time-outs in
    contrast have higher call incompletion
    probabilities. Because if we have longer average
    time-outs for initial calls when the mean arrival
    rate is high, the proportions of initial calls
    being served are too many.

74
References
  • System Aspects of Cellular Radio, IEEE
    Communications Magazine, January 1995 by Raymond
    Steele, James Whitehead, and W. C. Wong
  • Introduction to Mobile Network Management by
    Yi-Bing Lin, National Chiao Tung University
    Series in Telecommunication, ?????, 1997.
  • Channel assignment for initial and handoff calls
    to improve the call completion probability,Wei
    Kuang Lai, Yu-Jyr Jin, Hsin Wei Chen, and Chieh
    Ying Pan, IEEE Transactions on Vehicular
    Technology, vol. 52, no. 4, pp. 876 - 890, July
    2003.
Write a Comment
User Comments (0)
About PowerShow.com
