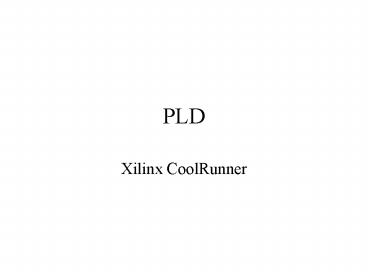

PLD

1
PLD

• Xilinx CoolRunner

2
reference

• CoolRunner/CoolRunner-II datasheet
• Application Note
• 5V Tolerance Techniques for CoolRunner-II
  Devices, XAPP429

3
Xilinx CPLDs Low Cost Solutions At All Voltages
4
CPLD Product Portfolio

• 3.3V core
• 2.7V - 5V I/O
• LVCMOS, LVTTL
• Low power
• Fast Zero Power

• 1.8V core
• 1.5V - 3.3V I/O
• SSTL, HSTL, LVCMOS, LVTTL
• Lower power
• DataGATE
• Clocking features
• Clock Divide
• CoolCLOCK
• DualEDGE

• 2.5V core
• 1.8V - 3.3V I/O
• LVCMOS, LVTTL
• I/O Banking

• 3.3V core
• 2.5V - 5.0V I/O
• LVCMOS, LVTTL

5
One Ultimate CPLD Solution for All Designs
Lowest Power 28µW 16µA typical stand-by
Low Cost 0.18µ small die size Lowest cost
packaging
High Performance 3.0ns TPD, FMAX 385Mhz Improved
features
Storage Systems, Routers
Set-Top Box, Cell phone
Handheld, Portable Equipment
6
CRII

• Processe lower cost FZP 0.18µ design
• High performance, 1.8 volt, 100 digital core, up
  to 385MHz
• Ultra low power, industry lowest dynamic static
  ratings
• Product feature rich, complete product offering
• Multiple I/O standards with input signal
  hysteresis
• Advanced system timing features
• Clock doubler for gt 500MHz Ftoggle rate
• Clock divider for lower power
• Even lower power consumption with CoolCLOCK
  DataGATE
• 32 to 512 macrocell densities with optimized
  packaging

7
Key Features

• RealDigital design methodology
• Total CMOS PLDs,
• 180nm, 1.8V, digital core
• 3.0ns TPD, 385MHz FMAX (32mc device)
• I/O
• HSTL, SSTL, LVTTL, LVCMOS
• Multiple I/O banking on larger devices
• Input port with Hysteresis function
• Clocking
• DualEDGE FlipFlop
• Clock Divider and CoolCLOCK
• Low power
• 28.8µW at 1.8V, even lower power possible with
  DataGATE

8
The RealDigital CPLD Advantage
9
CRII Architecture
??????
10
Function Block
11
Macrocell Architecture
Control Termsclocking (CTC), asynchronous set
(CTS), asynchronous reset (CTR), output enable
(CTE)
12
PAL PLA
XPLA3 use PLA (full connected OR matrix)
13
PAL PLA (contd.)
??????????,????????,????
14
Function of Flip Flop (1)
D-FF
T-FF
15
Function of Flip Flop (2)
Latch
16
DualEDGE triggered registers
process (clock) begin if (clockevent) then
... end if end process

• double system performance

17
I/O Block Architecture
500 mV of hysteresis will be added
when Schmitt-trigger inputs are selected.
??????????
For HSTL/SSTL
???????/??????
Outputs can be directly driven, 3-stated or
open-drain configured. slow or fast slew rate
output signal is selectable
18
Slew Rate Control
19
Input Hysteresis

• All I/O pins support input hysteresis
• Increase separation of true versus false levels
• Enabled on a per-pin basis
• Ideal for slow edge rate,noisy signalsnoise
  immunity
• Analog comparators sensors
• Hall effect switches
• IR input
• R/C oscillators / crystals
• Reduces power consumption by eliminating false
  switching
• Reduces cost by eliminating external Schmitt
  trigger buffers

20
Schmitt Trigger
21
Schmitt Trigger (contd.)
22
Schmitt trigger input vs. saving power

• When input signal have low noise and fast rise
  time edge, disable schmitt trigger
• When input signal have slow rise time
  edge,enabling schmitt triggernormal input buffer
  will consume more power during the transition.

23
Bus Holder
Bus hold??I/O ?????,???????????CRII???????I/O
pin??????????????????????,????????,????????,??????
????????????
24
IO Standard
output pins are grouped in large banks to support
different IO standard at the same time
25
OD Gate
????????
26
DataGATE
???? ???? ?????
????????
???
27
Additional Clock Options

• Division
• Division by 2,3,4,8,10,12,14,16
• DualEDGE
• Each macrocell has the ability to double its
  input clock switching frequency.
• CoolCLOCK
• For additional power savings,by combining the
  clock division circuitry with the DualEDGE
  circuitry

28
CoolCLOCK
29
Design Security

• Designs can be secured during programming to
  preventeither accidental overwriting or pattern
  theft via readback
• Four independent levels of security
• These security bits can be reset only by erasing
  the entire device

30
Timing Model (1)
a fast path into the macrocel
represents one aspect of the overall architecture
from a timing viewpoint. Each little block is a
time delay that a signal will incur if the signal
passes through such a resource.
Fold-back NAND path
Fast input path to each macrocell if used as an
Input Register
universal control terms
31
Timing Model (2)
32
Timing Model (3)
?????????
???2-56?????????
33
Timing Model (4)
34
Timing Model (5)
35
Timing Model (6)
36
Timing Model (7)
37
Timing Model (8)
38
Timing Model (9)
39
Power Saving techniques

• ICdV/dt
• ICdV 1/dt
• ICdV f
• dVv2-v1V-0V
• IC V f
• PI VC V2 f
• PTotalPstatic C V2 f

40
Power Saving techniques

• FReduce system speed, average toggle rate
• Avoid input floating to turn off one of the 2
  transistors (P and N channals)
• Increase input edge speed to avoid input spends
  more time biased in the linear region.
• Eliminate bus conflicts caused by two output
  buffers driving a line at the same time in
  opposite directions.
• Weak pull-up 10k,the larger the less power
  consumed but slower bus response time
• Recommend bus hold circuit, remove pull-up.exept
  special circuit like I2C SDA line.

41
Power Saving techniques

• Bus terminations
• Pull-down resistors reduce reflections in high
  speed designs
• valuetransmission lines impedance, positioned
  as close to the load pin as possible. Consume
  more power.
• Avoid using it by using a very short
  transmission line
• Or insert a series termination resistor
  positioned at the source pin valuetransmission
  lines impedance. But it will allow one
  reflection at the load.
• Reduce system voltage
• Reduce bus loading
• Capacitive bus component lumped-gateof
  inputbuffer of other CMOS devices
  /distributed-routingof the trace on the PCB
• Resistive bus component

42
Design Example (Shifter)
Normal Shifter
43
Design Example (DDR Shifter)
DDR Shifter
44
Design Example (Counter)
Counter
45
5V Tolerance Techniques forCoolRunner-II Devices

• a thick gate oxide provides a high amount of
  voltage tolerance, but sacrifices speed and
  threshold levels. A thin gate oxide makes for a
  faster transistor, but the overvoltage tolerance
  is poor
• CR II thickness 70 Angstroms. This results in an
  "absolute" limit of about 4.2V.
• The CoolRunner-II data sheet lists the absolute
  maximum input voltage as 4.0V.

46
5V ? CRII (1)
47
5V ? CRII (2)
1n1418 capacitance 4pf, forward voltage 1V,
recovery 4ns
48
5V ? CRII (3)
For any particular diode, an increase in
resistance value will result in slower edge
transition, and lower power consumption. The
converse also applies a lower value resistor
will result in faster edges, but more power is
consumed
49
5V ? CRII (4)
Diode factors capacitance /forward voltage/
switching characteristics 2pf, switching speed
of 1ns. (faster than the 1n4148)
50
5V ? CRII (5)
n-channel MOSFET Benefit not dissipating any
power in a termination resistor.
The voltage at the pin of the CPLD is determined
by the value of the termination voltage minus the
threshold voltage.
51
Applications

• Demo Board
• MP3 Player
• CR 2 8051 Interface
• Logic Analyzer

52
Demo Board
Fruit Battery
53
MP3 Player
54
CR 2 8051 Interface (1)
55
CR 2 8051 Interface (2)
56
Logic Analyzer
