FinFET

1

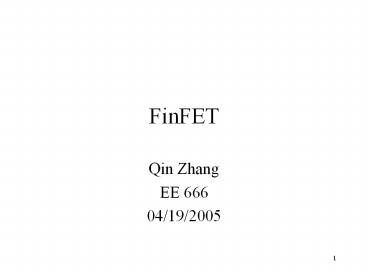

FinFET

• Qin Zhang
• EE 666
• 04/19/2005

2
Outline

• Introduction
• Design
• Fabrication
• Performance
• Summary

3
Introduction

• Double-gate FET (DGFET) can reduce Short Channel
  Effects (SCEs)
• Reduce Drain-Induced-Barrier-Lowering
• Improve Subthreshold Swing S

Medici-predicted DIBL and subthreshold swing
versus effective channel length for DG and
bulk-silicon nFETs
E J Nowak, I Aller, T Ludwig, K Kim R V Joshi,
C-T Chuang, K Bernstein and R Puri, IEEE Circuits
and Dev. Magazine, p20-31, Jan/Feb 2004
4
Introduction

• Three Types of Double-gate FET

Quasi-COMS structure Relatively simple FAB
J Kretz, L Dreeskornfeld, J Hartwich, and W
Rosner, Microelectronic Eng. 67-68, p763-768, 2003
5
Introduction

• First FinFET - DELTA (DEpleted Lean-channel
  TrAnsistor)

D.Hisamoto, T.Kaga, Y.Kawamoto, and E.Takeda,
IEEE Electron Dev. Lett., vol.11, no.1, p36-38,
Jan 1990
6
Design - Geometry
Hfin gtgt Tfin Top gate oxide thickness gtgt sidewall
oxide thickness
Effective channel length Leff Lgate 2Lext
Effective channel width W Tfin 2Hfin
H -J L Gossmann, et al., IEEE Trans on
Nanotechnology, vol.2, no.4, p 285-290, 2003
Gen Pei, et al., IEEE Trans on Electron Dev.,
vol.49, no.8, p1411-1419, 2002
7
Design - Dependence of Vth and S Swing on Hfin

• The saturation of Vth roll-off and S is observed
  when Hfin is increased from 20 nm to 90 nm
• The critical Hfin needed for saturation is
  dependent on Tfin
• For larger Tfin, the critical Hfin is
  correspondingly larger

Gen Pei, et al., IEEE Trans on Electron Dev.,
vol.49, no.8, p1411-1419, 2002
8
Design - Dependence of Vth and S Swing on Tfin

• Vth roll-off and S change more and more rapidly
  as Tfin changing
• from 10 nm to 60 nm, and slow down after that
• Fin thickness reduce can suppress short channel
  effects, but the
• variation will change the performance of the
  device a lot

Gen Pei, et al., IEEE Trans on Electron Dev.,
vol.49, no.8, p1411-1419, 2002
9
Design - SCEs with Leff/Tfin
Leff/Tfin gt 1.5 is desirable
Kidong Kim, et al., Japanese J of Appl. Phys.,
vol.43, no.6B, p3784-3789, 2004
10
Design - Other Optimization

• Nonrectangular Fin
• Hydrogen annealing to
• round off the corners
• Source-Drain Fin-Extension Doping
• Tradeoff regarding SCEs and S/D series resistance
• Dielectric Thickness Scaling
• Threshold Voltage Control
• Channel doping with symmetric poly-Si gate
• Asymmetric poly-Si gate
• Metal gate

Xusheng Wu, IEEE Trans on Electron Dev., vol.52,
no.1, p63-68, 2005 Weize Xiong, et al., IEEE
Electron Dev. Lett., vol.25, no.8, p541-543,
2004 Vishal Trivedi, IEEE Trans on Electron Dev.,
vol.52, no.1, p56-62, 2005 Jakub Kedzierski, et
al., IEEE Trans on Electron Dev., vol.51, no.12,
p2115-2120, 2004
11
Fabrication

• 6.5 nm Si fin by Berkeley Team
• ---- Smallest in 2002

Poly-Si
Si fin
Yang-Kyu Choi et al., Solid-State Electronics 46,
p1595-1601, 2002
12
Fabrication - Spacer Lithography
The thickness of spacer at the sidewalls
determines the fin thickness
Alternative Electron Beam Lithography (20nm
gate length and 15nm fin thickness was achieved)
Yang-Kyu Choi et al., Solid-State Electronics 46,
p1595-1601, 2002
W Rosner, et al., Solid-State Electronics 48,
p1819-1823, 2004
13
Fabrication - Process Flow
Easy in concept----Tough to build
(a) SiN is deposited as a hard mask, SiO2 cap is
used to relieve the stress. (b) Si fin is
patterned (c) A thin sacrificial SiO2 is
grown (d) The sacrificial oxide is stripped
completely to remove etch damage (e) Gate oxide
is grown (f) Poly-Si gate is formed
10 nm gate length, 12 nm fin width
Chenming Hu, et al. Dept. of EECS, UC-Berkeley,
IEDM, p251-254, 2002
14
Performance
Chenming Hu, et al. Dept. of EECS, UC-Berkeley,
IEDM, p251-254, 2002
15
Performance - IV Characteristics

• The drive currents are 446 uA/um for n-FinFET and
  356 uA/um for
• p-FinFET respectively
• The peak transconductance of the p-FinFET is very
  high (633uS/um at
• 105 nm Lg), because the hole mobility in the
  (110) channel is enhanced

Chenming Hu, et al. Dept. of EECS, UC-Berkeley,
IEDM, p251-254, 2002
16
Performance - Speed and Leakage

• Gate Delay is 0.34 ps for n-FET and 0.43 ps for
  p-FET respectively at 10 nm Lg

• Gate leakage current is comparable to planar FET
  with the same gate oxide thickness

Chenming Hu, et al. Dept. of EECS, UC-Berkeley,
IEDM, p251-254, 2002
17
Performance - Short Channel Effects
Medici-predicted DIBL and subthreshold swing
versus effective channel length for DG and
bulk-silicon nFETs

• The subthreshold slope is 125 mV/dec for n-FET
  and 101 mV/dec for p-FET respectively
• The DIBL is 71 mV/V n-FET and 120 mV/V for p-FET
  respectively

Chenming Hu, et al. Dept. of EECS, UC-Berkeley,
IEDM, p251-254, 2002
18
Summary
Easy in concept----Tough to build

• Double-gate FET can reduce Short Channel Effects
• and FinFET is the leading DGFET
• Optimization design includes geometry, S-D
  fin-extension doping, dielectric thickness
  scaling, threshold voltage control.
• Fabrication of FinFET is compatible with CMOS
  process
• 10 nm gate length, 12 nm fin width device has
  been fabricated and shows good performance
