Introduction to FinFet

1

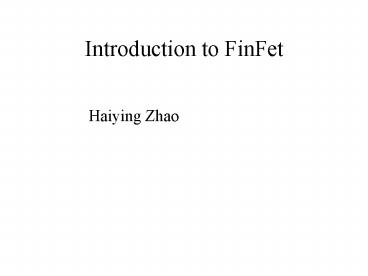

Introduction to FinFet

• Haiying Zhao

2
What does FinFet look Like
Bulk nmos
Silicon on insulator
FinFet
3
What does FinFet look like
3D view of FinFET
3D view of multi-fin FinFET
4
What does FinFet look like
5
Moores law and scaling theory

• Ideal scaling
• Reduce W,L by a factor of a
• Reduce the threshold voltage and supply voltage
  by a factor of a
• Increasing all of the doping levels by a
• (W,L,tox,VDD,VTH, etc, are scaled down by a
  factor a)
• For a ideal square-law device, Id is reduced by
  a, but gm and intrinsic gain
• Gm ro remain the same.
• As scaling into submicron region, Short Channel
  effects prevent further scaling.

6
Barrier lowering increases as channel length is
reduced, even at zero applied drain bias, because
the source and drain form pn junction with the
body, and so have associated built-in depletion
layers associated with them that become
significant partners in charge balance at short
channel lengths, even with no reverse bias
applied to increase depletion width
Short Channel EffectsDIBL
DIBL drain induced barrier lowering. DIBL
d(Vth)/d(Vds)
7
Short Channel Effects Subthreshold swing

• Biasing a nmos in subthreshold resgion, Vgs lt
  Vth, Vds is large enough.
• Id u Cd W/L (KT/q)2 (exp(Vgs Vth)/M))
• Cd is capacitance of the depletion layer
  under gate.
• M (1 Cd/Cox)KT/q
• Id f(Vgs-Vth)
• To turn off the transistor, How much reduction of
  (Vgs-Vth) could lead to a small enough Id.
• Subthreshold Swing S d(Vgs)/d(log(Id)) 2.3
  KT/q( 1 Cd/Cox)
• The smaller S is , the better it is.
• Bad Subthreshold Swing will result in higher
  off-state current if the Vgs applied to turn off
  the transistor is the same.

8
Short Channel Effects Velocity Saturation

• V u E ( E is small enough)
• V Vsat ( E is strong enough)
• As Vgs increases , the drain current saturates
  well before pinch-off occurs.

9
Barrier lowering increases as channel length is
reduced, even at zero applied drain bias, because
the source and drain form pn junction with the
body, and so have associated built-in depletion
layers associated with them that become
significant partners in charge balance at short
channel lengths, even with no reverse bias
applied to increase depletion width
Short Channel EffectsDIBL
DIBL drain induced barrier lowering. DIBL
d(Vth)/d(Vds)
10
Conclusion

• To reduce short channel effects, we need to
  reduce Xd(channel depletion layer thickness), Xj(
  Junction depletion width),Xox (oxide layer
  thickness under gate).

The scale length of bulk MOSFET is an indication
of Lg. Lggt
11
Dealing with Short Channel Effects in bulk MOSFET

• 1.Increasing body doping concentration
• 2.Using halo implant

High doping density results in Lower carrier
mobility high tunneling effect which increases
off-state currents Larger depletion capacitors
leading to high subthreshold swing which
increases off-state currents Larger parasitic
capacitance, Cgd, Cds.
12
Dealing with Short Channel Effects in Fully
depleted Silicon on Insulator (SOI)
Use ultra-thin film (tsi is small) as the
conducting body, depletion layer is confined in
the film.( Xdlt tsi). Eliminate the junction
parasitic capacitors. Cuff off the leakage
current path from drain to substrate.
13
From FD/SOI to FinFET

• Bend up the gate and narrow the gate. Fin width
  2 film thickness
• The effect body thickness is reduced by 2. Xd can
  be regarded as
• Fin width /2. To obtain good control of SCE, Leff
  gt 1.5Wfin ( Fin width).
• Finfet can operate at two mode, single gate and
  double gate.

14
FinFet characteristics
Lg 15nm
Some values
Threshold Voltage 0.196 V Subthreshold Slope
72 mV/decade Off Current 70 ?A/?m DIBL 64.67
mV/V
Lg 30nm
15
Approximate dc I-V equations?

• Square law?
• One way is using nth power law to computer the
  FinFet current.

16
FinFet Challenges or Opportunities

• Carrier mobility
• Lightly doped or undoped fin body increases
  carrier mobility.
• Short channel length enables velocity
  overshoot, which increases mobility.
• Low Vth decreases the vertical electric field
  ,which increases carrier mobility.

17
FinFet Challenges or Opportunities

• Tunneling effects
• Gate to channel tunneling,
• Band to band tunneling at
• PN junction

18
FinFet Challenges or Opportunities

• Parasitic resistance a raised source/drain
  structure can be used to reduce the parasitic
  resistance.
• However, the overlap capacitance is increased.
• Prasitic resistance is the main adverse factor
  which prevents finfets application, which leads
  to lower speed and high noise.

19
FinFet big advantages

1. Having excellent control of short channel effects
   in submicron regime and making transistors still
   scalable. Due to this reason, the small- length
   transistor can have a larger intrinsic gain
   compared to the bulk counterpart.
2. Much Lower off-state current compared to bulk
   counterpart.
3. Promising matching behavior.

20
Applications

• Low power design in digital circuit, such as RAM,
  because of its low off-state current.
• Power amplifier or other application in analog
  area which requires good linearity.
