Discovering Compound and Proper Nouns

1

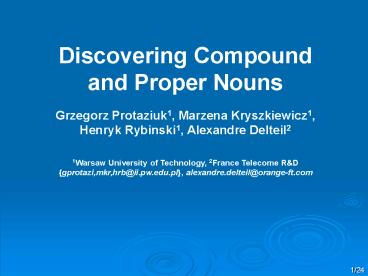

Discovering Compound and Proper Nouns Grzegorz
Protaziuk1, Marzena Kryszkiewicz1,Henryk
Rybinski1, Alexandre Delteil2 1Warsaw
University of Technology, 2France Telecome
RD gprotazi,mkr,hrb_at_ii.pw.edu.pl,
alexandre.delteil_at_orange-ft.com
2
Plan of the presentation

• Definitions
• Grammatical patterns
• Method
• Experiments

3
Multiword expressions

• Compound nouns - represent notions, have a rigid
  syntactic structure.e.g. information
  retrieval, Warsaw University of Technology.
• Idioms expressions the meaning of which almost
  never can be derived from the meaning of words
  constituting the expressions (a little
  possibility of modifying the syntax).
• Collocations this class consists of associated
  words, i.e. words that frequently co-occur in
  text. (syntactic structure is not rigid).

4
Definitions (1)

• Compound noun or multiword term sequence of at
  least 2 words used as a name (indicator) of one
  notion or one thing.
• Examples
• Warsaw University of Technology
• object oriented programming
• frequent pattern
• association rule

5
Definitions (2)

• Distance between the words in a sequence
• The distance between two words w1 and w2
  included in a sequence ws, denoted as
  distancews(w1,w2), is defined as the number of
  words in the considered sequence between those
  words.
• Example
• Given the sentence It is very interesting
  problem, the distance between the word It and
  the word interesting is equal to 2, and the
  distance between is and very is equal to 0.

6
Grammatical patterns (1)

• Formally, a grammatical pattern is a pair
  P,G,where P ltPOS1, POS2,, POSngt, where
  POSi pos1,,posn denotes a non-empty set of
  valid parts of speech at the ith position,
• and G max_gap12, max_gap23,, max_gapn-1,n,
  where max_gapi,i1 is the maximal distance
  between some successive words in the sentence
  which are used to fulfill the grammatical
  pattern at the positions i and i1.

7
Grammatical patterns (2)

• When a sentence meets the grammatical pattern.
• A sentence snt ltw1, w2, , wmgt supports the
  grammatical pattern gp P,G, P ltPOS1,
  POS2,, POSngt, G max_gap12, max_gap23,,
  max_gapn-1,n,if exists a sequence of integers
  (i1, i2, ..., in), i1lti2lt...ltin, such that
  pos(wi,1) ? POS1, pos(wi,2)?POS2,, pos(wi,n)?
  POSn, where pos(w) denotes the part of speech in
  the context of the sentence snt to which the
  word w belongs
• and distancesnt(wi,j, wi,j1) ? max_gapj,j1, 1?
  j ? n-1.

8
Grammatical patterns (3)

• Example
• A sentence
• A pattern lt(noun, noun, preposition,
  noun), (0,0,0)gt
• Search for the following proper noun Warsaw
  University of Technology
• We select the following words Warsaw,
  University, of Technology.
• These words do not fulfill the pattern.
• The distance constraints are not fulfilled as
  e.g. distance( Warsaw, University) 5 gt
  max_gap12 0.

In Warsaw, in the buildings belonging to
University there are auditoria with audio-visual
equipment of advanced technology.
In Warsaw, in the buildings belonging to
University there are auditoria with audio-visual
equipment of advanced technology.
9
Assumptions (1)

• The words building multiword terms or multiword
  proper nouns occur generally one by one in texts.
• In most cases multiword terms consisting of
  nouns, prepositions, and adjectives.
• Many proper nouns consist of only nouns and a
  preposition.

10
Assumptions (2)

• Multiword term a sequence of words belonging to
  the following part of speech adjective, noun,
  preposition which occurs in given corpus at least
  in the minSup text units.
• The minSup threshold is given explicate by a
  user.
• Text unit may be either document or paragraph or
  sentence.

11
Problem statement

• To discover frequent word sequences which meets
  the grammatical pattern, where frequent means
  that a sequence occurs in more text units than
  given threshold.

12
Input data

• Documents written in English
• the Reuters documents (rather short)
• granularity at paragraph level
• granularity at document level
• the data mining scientific papers (rather long)
• granularity at paragraph level

13
Algorithm

• T-GSP algorithm developed from the GSP
  algorithm.
• Main difference
• dealing this text
• application of grammatical patterns causes that
  monotonic property (If one subset of an itemset
  is not frequent, then the itemset itself cannot
  be frequent) wrt. word-sequences does not hold.
• Example
• gp1 (noun,noun,(0)), gp2
  (noun,preposition,noun), (0,0)
• sequence ltUniversity, Technologygt is
  infrequent
• sequence ltUniversity, of, Technologygt is
  frequent
• prune step done based on POS tags

14
Data patterns versus text patterns
15
Experiment 1

• Finding multiword terms composed of nouns.
• The patterns including only nouns
• gp1 ltnoun, noungt,lt0gt
• searching for two consecutive nouns e.g.
  Newcastle United,
• gp2 ltnoun, noun, noungt,lt0,0gt
• searching for 3 consecutive nouns, e.g.
  information extraction system.

16
Experiment 1 - summary

• E1.1 Input data paragraphs from the Reuters
  documents, minSupp 7, number of all the
  discovered patterns 563.
• E1.2 Input data documents from the Reuters
  repository, minSupp 5, number of all the
  discovered patterns 744.
• E1.3 Input data paragraphs from the papers,
  minSupp 4, number of all the discovered
  patterns 1406.

17
Experiment 1 - conclusion

• The obtained results prove that the method allows
  finding
• proper nouns, e.g. President Bill Clinton,
  Eastern Europe, and Columbia Pictures
• multiword terms, e.g. carbon dioxide, credit
  card, or information retrieval system.

18
Experiment 2

• Finding multiword terms composed of two nouns and
  one preposition
• Grammatical patterns
• gp3 ltnoun, preposition, noungt,lt0,0gt,
• gp4 ltnoun, preposition, noungt,lt0,1gt,
• gp5 ltnoun, preposition, noungt,lt0,2gt.
• Searching for phrases such as Institute of
  Research with three various specifications of
  gaps between the preposition and noun.

19
Experiment 2 - summary

• E2.1 Input data paragraphs extracted from the
  Reuters document, minSupp 7, number of all
  discovered patterns 37 for the gp3, 67 for the
  gp4, 77 for the gp5.
• E2.2 Input data the Reuters document,minSupp
  5, number of all the discovered patterns 61 for
  the gp3, 99 for the gp4, 137 for the gp5.
• E2.3 Input data paragraphs extracted from the DM
  scientific papers, minSupp 4, number of all
  discovered patterns 158 for the gp3, 402 for the
  gp4, 529 for the gp5.

20
Experiment 2 - conclusion

• The Reuters repository
• proper nouns e.g. Bank of Japan, Union of
  Kurdistan, Republic of China,
• common phrases e.g. thousands of people,
  end of year, barrels of oil, and rate of
  percent.
• The scientific DM papers
• proper nouns (or parts of them) e.g. Workshop
  on Logics, University of Maryland,
  Conference on Artificial,
• multiword terms - e.g. structures of
  ontologies, specification of
  conceptualization.
• Phrases discovered by applying the gp4 pattern,
  but not discovered by applying the gp3 (such as
  rest of paper or Journal of Computer) may be
  incomplete.

21
Experiment 3

• Finding multiword terms composed of three nouns
  and one preposition
• Grammatical patterns
• gp6 ltnoun ,noun,preposition,noungt,lt1,0,
  1gt,
• gp7 ltnoun,noun,preposition,noungt,lt2,0,2
  gt.
• searching for phrases such as Warsaw
  University of Research with two various
  specifications of gaps between the words.

22
Experiment 3 - summary

• E3.1 Input data paragraphs extracted from the
  Reuters document, minSupp 7, number of all the
  discovered patterns 13 for the gp6, 21 for the
  gp7.
• E3.2 Input data the Reuters document, minSupp
  5, number of all the discovered patterns 20 for
  the gp6, 33 for the gp4.
• E3.3 Input data paragraphs extracted from DM
  papers,minSupp 5, number of all the discovered
  patterns 57 for the gp6, 101 for the gp7.

23
Experiment 3 - conclusion

• the Reuters documents
• mostly the proper nouns, e.g. Daiwa Institute
  of Research, or Patriotic Union of Kurdystan.
• multiword terms e. g. box office during
  Friday.
• the DM scientific papers mainly consists of parts
  of names of
• conferences e.g. International Conference on
  Learning
• publications e.g. Proceedings Workshop on
  Ontology, Lecture Notes in Computer
• titles of the papers or some text units within
  the papers. Formal Ontology in Systems
• multiword terms e.g. acquisition hyponyms
  from text, core system for german.

24
Further research

• Method of improvement the process of selecting
  candidates for multiword terms and for proper
  nouns
• Using the approach for discovering associations
  between words
• Applying additional tags (e.g. categories) into
  texts analyzing process

25
Experiment 3.1

• Input data paragraphs extracted from the Reuters
  document, minimal support 7, number of all the
  discovered patterns 13 for the gp6 pattern, 21
  for the gp7 pattern.
• Selected results
• ltPort,conditions,from,Shippinggt (12,12)
• ltChicago,Board,of,Tradegt(12,12)
• ltPort,conditions,from,Lloydsgt (12,12)
• ltPictures,unit,of,Seagramgt (11,11)
• ltConseil,suprieur,de,audiovisuelgt (8,8)
• ltPictures,unit,of,Viacomgt (8,8)
  ltPictures,unit,of,Incgt (8,8)

26
Experiment 3.2

• Input data the Reuters document, minimal
  support 5, number of all the discovered
  patterns 20 for the gp6 pattern, 33 for the gp4
  pattern.
• Selected results
• ltPort,conditions,from,Shippinggt (12,12)
• ltPort,conditions,from,Lloydsgt (12,12)
• ltChicago,Board,of,Tradegt (12,12)
• ltPictures,unit,of,Seagramgt (11,11)
• ltConseil,Suprieur,de,Audiovisuelgt(8,8)
• ltPictures,unit,of,Viacomgt (8,8)
  ltPictures,unit,of,Incgt (8,8)

27
Experiment 3.3

• Input data paragraphs extracted from DM papers,
  minimal support 5, number of all the discovered
  patterns 57 for the gp6 pattern, 101 for the gp7
  pattern.
• Selected results
• ltOntology,Infrastructure,for,Semanticgt (68,68)
• ltWonderWeb,Infrastructure,for,Semanticgt(58,58)
• ltClass,rdf,about,owlgt (17,17) ltowl,rdf,about,rdfs
  gt(16,16)
• ltNational,Conference,on,Artificialgt(16,16)
• ltNational,Conference,on,Intelligencegt(15,16)
• ltInternational,Journal,of,Computergt (14,14)
• ltInstitute,University,of,Karlsruhegt (12,12)
• ltInternational,Journal,of,Human-gt(11,11)

28
Experiment 1.1

• Input data paragraphs from the Reuters
  documents, minimal support 7, number of all the
  discovered patterns 563.
• Selected results
• ltUnited,Statesgt 263 ltHong,Konggt 155
• ltPrime,Ministergt 143 ltNew,Yorkgt 113
• ltinterest,ratesgt 76 ltSouth,Africagt 69
  ltWalt,Disneygt20
• ltPresident,Billgt 33 ltPresident,Bill,Clintongt 33,

29
Experiment 1.2

• Input data documents from the Reuters
  repository, minimal support 5, number of all the
  discovered patterns 744.
• Selected results
• ltUnited,Statesgt 151 ltPrime,Ministergt 114
• ltnews,conferencegt 86 ltNew,Yorkgt 82
• ltHong,Konggt 57 ltinterest,ratesgt 52
• ltPresident,Billgt33 ltPresident,Bill,Clintongt33

30
Experiment 1.3

• Input data paragraphs from the papers, minimal
  support 4, number of all the discovered patterns
  1406.
• Selected results
• ltSemantic,Webgt 186 lthttp,wwwgt 119
• ltArtificial,Intelligencegt 89 ltowl,Classgt 75
• ltInternational,Conferencegt 73 ltrdf,resourcegt 68
• ltOntology,Infrastructuregt 68 ltknowledge,basegt
  68
• ltProject,WonderWebgt 67 ltMachine,Learninggt 50
• ltcon-,ceptsgt 29

31
Experiment 2.1

• Input data paragraphs extracted from the Reuters
  document, minimal support 7, number of all
  discovered patterns 37 for the gp3 pattern, 67
  for the gp4 pattern, 77 for the gp5 pattern.
• Selected results
• ltpress,on,Tuesdaygt (34,34,34) ltBoard,of,Tradegt(13
  ,13,13)
• ltrate,of,percentgt (12,14,17) ltmillions,of,dollars
  gt (12,13,13)
• ltunit,of,Seagramgt (12,12,12) ltUnion,of,Kurdistangt
  (7,7,7)
• ltpercent,in,yeargt (7)

32
Experiment 2.2

• Input data the Reuters document, minimal
  support 5, number of all the discovered
  patterns 61 for the gp3 pattern, 99 for the gp4
  pattern, 137 for the gp5 pattern.
• Selected results
• ltpress,on,Tuesdaygt (34,34,34) ltBoard,of,Tradegt
  (12,12,12)
• ltunit,of,Seagramgt(12,12,12) ltmillions,of,dollarsgt
  (11,12,12)
• ltconditions,from,Lloydsgt (12,12,12)
• ltrate,of,percentgt (11,13,16)
• ltnewspapers,on,Tuesdaygt (11,11,11)
• ltUnion,of,Kurdistangt (7,7,7)

33
Experiment 2.3

• Input data paragraphs extracted from the DM
  scientific papers, minimal support 4, number of
  all discovered patterns 158 for the gp3 pattern,
  402 for the gp4 pattern, 529 for the gp5 pattern.
• Selected results for the pattern gp3
• ltConference,on,Artificialgt35 ltApplications,of,Ont
  ologiesgt7
• ltpoint,of,viewgt 23 ltUniversity,of,Manchestergt 7
• ltUniversity,of,Karlsruhegt 19 ltinstances,of,concep
  tsgt 6 ltDepartment,of,Computergt14
  ltcorpus,of,textsgt 6 ltWorkshop,on,Ontologiesgt 14
  ltManagement,of,Datagt 6
• ltdomain,of,interestgt14 ltlevel,of,abstractiongt 6
  ltConference,on,Knowledgegt13 ltConference,on,Machin
  egt 6

34
Experiment 3.1

• Input data paragraphs extracted from the Reuters
  document, minimal support 7, number of all the
  discovered patterns 13 for the gp6 pattern, 21
  for the gp7 pattern.
• Selected results
• ltPort,conditions,from,Shippinggt (12,12)
• ltChicago,Board,of,Tradegt(12,12)
• ltPort,conditions,from,Lloydsgt (12,12)
• ltPictures,unit,of,Seagramgt (11,11)
• ltConseil,suprieur,de,audiovisuelgt (8,8)
• ltPictures,unit,of,Viacomgt (8,8)
  ltPictures,unit,of,Incgt (8,8)

35
Experiment 3.2

• Input data the Reuters document, minimal
  support 5, number of all the discovered
  patterns 20 for the gp6 pattern, 33 for the gp4
  pattern.
• Selected results
• ltPort,conditions,from,Shippinggt (12,12)
• ltPort,conditions,from,Lloydsgt (12,12)
• ltChicago,Board,of,Tradegt (12,12)
• ltPictures,unit,of,Seagramgt (11,11)
• ltConseil,Suprieur,de,Audiovisuelgt(8,8)
• ltPictures,unit,of,Viacomgt (8,8)
  ltPictures,unit,of,Incgt (8,8)

36
Experiment 3.3

• Input data paragraphs extracted from DM papers,
  minimal support 5, number of all the discovered
  patterns 57 for the gp6 pattern, 101 for the gp7
  pattern.
• Selected results
• ltOntology,Infrastructure,for,Semanticgt (68,68)
• ltWonderWeb,Infrastructure,for,Semanticgt(58,58)
• ltClass,rdf,about,owlgt (17,17) ltowl,rdf,about,rdfs
  gt(16,16)
• ltNational,Conference,on,Artificialgt(16,16)
• ltNational,Conference,on,Intelligencegt(15,16)
• ltInternational,Journal,of,Computergt (14,14)
• ltInstitute,University,of,Karlsruhegt (12,12)
• ltInternational,Journal,of,Human-gt(11,11)
