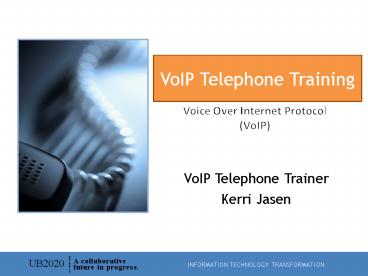

VoIP Telephone Training

1
VoIP Telephone Training
Voice Over Internet Protocol(VoIP)

• VoIP Telephone Trainer
• Kerri Jasen

2
Training Objectives

• Provide an overview and basic understanding
  ofVoIP telephone features and functionality
• Introduce advanced features and functionality
• Provide support and training informationNOTEFor
  specific departmental telephone configuration
  and functionality, please contact your
  departmentalVoIP Telephone Coordinator

3
Dialing from a VoIP Telephone
Campus to Campus Dial all seven digits North
645-2000 South 829-2000 Center of Excellence
881-2000 Campus to Off-Campus Local dial all
seven digits 662-2000 Long Distance and
International Calling dial additional
numbers 1 area code number 0 11
country code city code number Note UB
pays for and closely monitors long distance and
international VoIP calling usage. Dialing
Instructions At a Glance To update LDAP entries,
see your Departmental Coordinator
Dialing 9 is not required
4
In an Emergency
Downtown Campus Locations (except for COE)911
5
VoIP Telephone Support

voip.buffalo.edu
6
VoIPTrainer

• Account Registration and Activation

• UB email address victoria_at_buffalo.edu
• Password DO NOT use your UBIT password

7
Features
Its just a phone

8
VoIP Telephone Buttons and Features

• 1 Handset

2 LCD Screen
1

• 3 Foot stand Adjustment

2
4 Help

• 5 Volume

3
6 Sound Controls
4
5
6
9
Volume ButtonAdjust Ring and Call Volume
10
VoIP Telephone Buttons and Features
7
10
8
9
11
Soft Key Buttons
12
Standard Soft Key Template
13
Phone Buttons
2 Button Model
6 Button Model
Side Car / 14 Buttons
14
Phone Button Options

• Line or Directory Numberto receive and place
  calls from
• Speed Dialallows you to press a button to place
  a call
• Busy Lamp Field (BLF)allows an operator to see
  if others are on their phones

15
Configuration Examples
2 Button Model
Button 1 Persons Direct NumberButton 2
Speed Dial
Button 1 Departmental NumberButton 2
Persons Direct Number
Button 1 Departmental NumberButton 2 Speed
Dial
16
Configuration Examples
6 Button Model
Button 1 Departmental NumberButton 2
Persons Direct Number Button 3 BLF for
Chair Button 4 BLF for Co-worker Button 5
Speed Dial to Assistant Button 6 Speed Dial to
IT Desk
Button 1 Persons Direct NumberButton 2
Departmental Number Button 3 BLF for
Dean Button 4 BLF for Faculty Button 5 BLF
for Faculty Button 6 Speed Dial to Assistant
17
Configuration Examples
Side Car / 14 Buttons
Button 1 Departmental NumberButton 2
Persons Direct Number Button 3 BLF for
Dean Button 4 BLF for Deans Assistant Button 5
Speed Dial to Assistant Button 6 Speed Dial
to IT Desk
Buttons 7 20 BLF for Faculty
Buttons 21 34 BLF for Staff
18
Using a VoIP Telephone
19
Place a Call
1

• Pick up the handset and enter a number OR
• Press the SPEAKER button and enter a number OR
• Press the unlit HEADSET button and enter a number
  OR
• Press the lit HEADSETbutton, press the NEW CALL
  soft key, then entera number

3/4
2
20
Answering a Call
1

• Lift the handset OR
• Press the SPEAKERbutton OR
• Press the unlit HEADSET button OR
• Press the ANSWER soft key if the headset button
  islit OR
• Press the flashing line button

5
3/4
2
21
Hold and Resume

• While on a call, press the Hold soft key
• To retrieve a call, press the Resume soft key

22
Transfer a Call

• While on a call, press the Transfer soft key,
  then dial the third partys number
• When the third party answers, announce thecall,
  press the Transfersoft key again, thenhang up
• If the third party isbusy or unavailable,press
  the EndCallsoft key, then pressthe Resume soft
  keyto return to the first party

23
Make a Conference Call

• While on a call, press the More soft key, then
  the Confrn soft key, the first caller will
  automatically be placed on hold
• Dial the next partysnumber, when the nextparty
  answers, press theConfrn soft key to add
  thiscaller to the conference
• Repeat the processto establish up tosix callers

24
Manage Multiple Incoming Calls

• To answer an incoming call while on another call,
  press the Answer soft keyThe first call is
  automatically placed on hold.
• Use the Navigation buttonto return to the first
  caller, then press the Resumesoft key

25
Call Forwarding
26
Park Soft Key
27
Park Soft Key
28
Park Soft Key
29
Join Soft Key
30
Join Soft Key
31
Join Soft Key

32
Join Soft Key
33
iDivert Soft Key
34
Feature Buttons
Its still just a phone
35
Feature Buttons

• messages

directories

• settings

Retrieve voice mail messagesfrom old phones
before they are removed from your desk
36
Set Up Voice Mail

• Press the Messages button
• Enter the default password 828648986 followed by

• Change your name,greeting and passwordfrom the
  Set Up Optionswithin the voice mail system
• Follow the prompts tocomplete the process

Change your password Set up voice mail
ASAP
37
Access Voice Mail

• Press the Messages button
• Enter your password followed by
• Follow the prompts to access your messages

38
Voice Mail Menus
During Messages
1
Restart Message
Retrieve Messages
2
Save
1
New
3
Delete
1
3
Saved
4
Slow Playback
3
2
Deleted
7
Rewind Message
9
Fast-forward

Fast-forward to End
39
VoIP Voice Mail Menu Document
To print, go to voip.buffalo.eduClick on
VoIP Voice Mail Menu
40
Access Voice Mail Remotely

• Dial 645-3333
• When connected, press
• Enter your User ID(7 digit phone number)
  followed by
• Enter your password followed by

41
Feature Buttons
messages

• directories

settings

• Call Logs
• Missed, Received, Placed
• Corporate Directory
• Personal Directory
• Personal Address Book
• Personal Fast Dials

42
DirectoriesMissed, Received, Placed
43
DirectoriesPlaced Calls
44
DirectoriesPlaced Calls
45
Feature Buttons

• messages

directories

• settings

• Adjust
• Rings
• LCD screen contrast

46
Change Ring Type
47
Change Ring Type
48
Change Ring Type
49
Change Ring Type
50
Ring Selection
51
Change Contrast of LCD Screen
52
Change Contrast of LCD Screen
53
Change Contrast of LCD Screen
54
Change Contrast of LCD Screen
55
CallManager User Interface

• voip.buffalo.edu/callmanager

56
CallManager User Interface Login
Default Password is 12345 VoIP Phone Quick
Reference

• Browser Password
• between 5 and 25 characters
• letters and/or numbers
• no spaces

57
CallManager User Interface User Options Menu
58
User Options Menu User Settings Change Browser
Password and Phone Pin
59
User Settings Change Browser Password and Phone
Pin

• Browser Password
• between 5 and 25 characters
• letters and/or numbers
• no spaces

Default 12345
Default 12345678

• Phone Pin
• between 5 and 25 characters
• numeric only
• no spaces

VoIP Phone Quick Reference
60
Users Options Menu Device Line Settings /
Incoming Call Forwarding
61
Device Line Settings / Incoming Call Forwarding
Cisco User Guide
62
Line Settings Incoming Call Forwarding
63
Line Settings Incoming Call Forwarding
64
Device Speed Dials Add New / Associated with a
Button / Abbreviated Dialing
65
Speed Dials Add New / Associated with a Button
6453160
Tina Work
Tina Work
66
Speed Dials Associated with a Button
67
Speed Dials / Abbreviated Dialing Add New / Not
Associated with a Button
6453160
Tina Work
Tina Work
68
Speed Dials / Abbreviated Dialing Not Associated
with a Button
69
Speed Dials / Abbreviated Dialing Not Associated
with a Button
70
User Options Menu Personal Address Book
71
Personal Address Book Add New
72
Personal Address Book Data Entry
Kerri
Jasen
Kerri
jasen_at_buffalo.edu
6451234
73
DirectoriesPersonal Directory
74
Personal DirectoryPersonal Address Book and
Personal Fast Dials
75
Personal Address BookSearch
76
Personal Address BookEntry Found
77
Personal Address BookEntry / Access to Fast Dial
Directory
78
User Options Menu Fast Dials
79
Fast Dials Add New
80
Fast Dials / Raw Entry Enter Data/ NOT associated
with Personal Address Book
4
6452727
81
Personal DirectoryPersonal Fast Dials
82
Personal Fast Dials Phone ListingRaw Entry / NOT
Associated with Personal Address Book
83
Fast Dials / Associated with Personal Address
Book Add New
Nick Name
Begins with
84
Fast Dials / Associated with Personal Address
Book Search
Kerri
Nick Name
Begins with
85
Fast Dials / Associated with Personal Address
Book Populate and Save
6451234
4
6451234
86
Personal DirectoryPersonal Fast Dials
87
Personal Fast Dials Phone ListingAssociated with
Personal Address Book
88
DirectoriesCorporate
89
Corporate DirectorySearch
90
Corporate DirectoryEntry Found
91
Speed Dials vs. Fast Dials

• Speed Dials

• Fast Dials

• Phone directory
• Search feature
• Dial from directory
• Set up from phone
• Set up from web interface

• No phone directory
• No search feature
• Dial from line button on phone
• Use AbbrDial soft key to dial
• Set up from web interface

92
Password and Pin Numbers

• Phone Password

Browser Password

• - Access additional phone features online using
  the CallManager User Interface
• - Default 12345
• - 5 to 25 characters
• - Letters and/or numbers, no spaces

• - Access voice mail
• - Default 828648986
• - 5 to 10 characters
• - System will not allow
• Your telephone number
• The same digits, 44444
• A sequence of digits, 12345

Phone Pin

• - Log in and out of Personal Directory
• - 5 and 25 characters
• - Numeric only, no spaces

93
Remember Its just a phone!

• New dialing formats
• voip.buffalo.edu
• VoIP Quick Reference Guide
• VoIPTrainer Online Training Software
• CallManager User Interface
• Voice Mail
• Retrieve voice mail messages from old phones
• Set up VoIP voice mail ASAP
• Reset password

94
