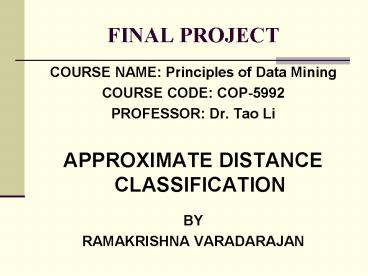

FINAL PROJECT

1
FINAL PROJECT

• COURSE NAME Principles of Data Mining
• COURSE CODE COP-5992
• PROFESSOR Dr. Tao Li
• APPROXIMATE DISTANCE CLASSIFICATION
• BY
• RAMAKRISHNA VARADARAJAN

2
AN OVERVIEW

• THE PROBLEM Curse of Dimensionality.
• THE SOLUTION.
• THE METHODS.
• ADC PROJECTIONS.
• EXAMPLES.
• EVALUATING THE PROJECTIONS.
• IMPLEMENTATION OF THE METHOD.
• RESULTS.

3
THE PROBLEM

• Classification and clustering in high dimensions
  are NOTORIOUSLY DIFFICULT PROBLEMS.
• Instead of searching for clustering structure of
  the original, highdimensional observations, it
  is common practice to employ dimension reduction
  methods.
• The question How to project? naturally arises.

4
THE SOLUTION

• In 1997, Cowen and Priebe 4 introduced a class
  of non linear projections that is easy to
  construct and has been demonstrated to preserve
  clustering structure in high-dimensional data
  sets that strongly cluster.
• The motivation behind their work is to reduce
  dimensionality while approximately preserving
  inter-cluster distances.
• The projections developed by Cowen and Priebe
  approximately preserve inter-class distances.

5
THE METHOD

• Consequently the classification and clustering
  techniques based on them are referred to as
  Approximate Distance Classification and
  Clustering methods or ADC methods for short.
• ADVANTAGES
• No Pre-processing needed.
• No Data dependent adjustments needed.
• Performs surprisingly well on very high
  dimensions in which the conventional methods fail
  for theoretical and computational reasons.
• Very Simple and Effective technique.

6
ISSUES TO BE ADDRESSED

• While using ADC METHODS we come
• across the following issues
• How many projections do we need to generate to
  get some that are useful?
• How do we distinguish the best'' (or most
  useful) projections from the rest?

7
ADC PROJECTIONS

• Given a set of observations in a highdimensional
  space we first seek a projection of the data into
  a lowerdimensional space for which approximate
  inter-cluster distances are maintained.
• Definition Let SX1,X2,,Xn be a collection
  of n vectors (n-instances) in d-dimension
  (d-attributes). Let D be a subset of S
  (instances) and . denote the L2 norm. The
  associated ADC map is defined as the function.
• ADC-D Xi ? min Xi Z . where Z is an
  element of D.
• L2 NORM

8
WITNESS SETS

• The set D (the subset of instance set) in the
  above definition will be referred to as the
  witness set that generates its associated
  projection.
• Clearly each ADC map is completely determined by
  the witness set used and each determines a
  projection from d-dimension to 1-dimension.
• In what follows, we will always choose the
  witness set entirely from one of the classes,
  without loss of generality.

9
THE ALGORITHM

• For each possible witness set S sampled from the
  data(only from a single class) This loop
  iterates for all different possible witness sets
• For each instance I of the data This loop
  iterates for all data instances
• For each element Z of the above selected witness
  set This loop iterates for the number of
  witness elements
• Calculate the distance between the instance I and
  witness element Z
• Find the minimum of the above calculated
  distances, d-min
• The Instance I is mapped to d-min in the
  lower-dimensional space
• Evaluate the resulting projection using CROSS
  VALIDATION
• THEN SELECT THE BEST PROJECTION !!!

10
EXAMPLE ADC PROJECTION

• IRIS DATA
• Number of Instances 150 (50 in each of three
  classes)
• Number of Attributes 4 numeric, predictive
  attributes and a class
• attribute.
• Example instances of iris data ( first five)
• 5.1,3.5,1.4,0.2,Iris-setosa
• 4.9,3.0,1.4,0.2,Iris-setosa
• 4.7,3.2,1.3,0.2,Iris-setosa
• 4.6,3.1,1.5,0.2,Iris-setosa
• 5.0,3.6,1.4,0.2,Iris-setosa
• 5.4,3.9,1.7,0.4,Iris-setosa
• In our definition
• S set of all instances D subset of instances
  called witness set
• Lets select a witness set of size 2 randomly
  (always within one class). While doing ADC
  projection we dont take class attribute to
  consideration for dimensionality reduction.
• D (5.0,3.6,1.4,0.2) and (5.4,3.9,1.7,0.4)

11
EXAMPLE ADC PROJECTION (continued)..

• Now we apply the ADC projection for the first
  instance of IRIS data First Instance
  5.1,3.5,1.4,0.2.
• Calculate distance between first instance and
  (5.0,3.6,1.4,0.2) by using L2 norm( Distance
  Formula). Result will be 0.141.
• Calculate distance between first instance and
  (5.4,3.9,1.7,0.4) by using L2 norm( Distance
  Formula). Result will be 0.616.
• Then find the minimum of the 2 results. In our
  case it is 0.141.
• So the first instance is projected to 0.141.
• Repeat this procedure for all the remaining
  instances to get the overall projection of the
  IRIS data by the selected witness set.

12
IDENTIFYING GOOD WITNESS SETS

• You can vary the size of the witness set and also
  the elements in the witness set, but within a
  single class to preserve the inter-cluster
  distances and relationships.
• Once the data is projected using a selected
  witness set, the resulting projected data is
  classified using a conventional method( for
  example K-nearest neighbor or any other
  classification algorithm).
• We call the conventional function used in
  combination with the ADC, the ADC-sub classifier.

13
EVALUATING THE PROJECTIONS

• There are many existing methods to measure the
  quality of a projection.
• The projection generated by D can be evaluated
  with respect to a particular ADC sub-classifier
  by using CROSS-VALIDATION.
• When presented with a new unlabeled observation
  X, the method classifies by projecting X to
  one-dimensional space using ADC-D and then
  labeling ADC-D (X) using the selected ADC-sub
  classifier.

14
PROCEDURE SO FAR..

• First, we sample w witness sets from the set of
  all size s subsets of the training data in a
  single class. For example In IRIS data, there
  are 3 classes( 50 instances in each). So if we
  select the size s to be 3, there are 50 C 3
  19600 possible witness sets and we can sample
  any number (w) from it for projection.
• Evaluate the witness sets using Cross-Validation.
• Now we select the r best scoring witness sets,
  where r is called filtering parameter.
• THE PARAMETERS w, s AND r CAN BE VARIED.

15
IMPLEMENTATION

• A program in java that reads the IRIS data and
  performs ADC projections on it.
• THE INPUT size and the elements in the witness
  set chosen.
• THE OUTPUT The reduced 1-dimension arff file
  that can be classified using a ADC sub-classifier
  (e.g. k-nearest neighbor) later on to evaluate
  the witness set chosen.
• The program reads the iris.txt file in arff
  format and performs the mapping using the witness
  set parameters from the user.

16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
THANKS

• QUESTIONS ?
