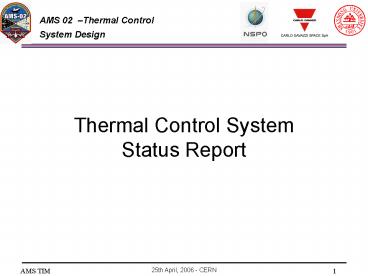

Thermal Control System Status Report

1
Thermal Control System Status Report
2
SUMMARY

• AMS configuration, weight status an schedule (M.
  Molina)
• Summary of ongoing/ completed tests  (G. Ambrosi)
• LSS studies (W.Du / ZC Zhao)
• STA status (mechanical parts production and
  radiators design) (X. Zhu/ G. Xin)
• TTCS status (J. v Es / ZC Huang / Z. He)

3
TCS Definition
Tracker
Zenith

• System TCS comprises
• Main radiators
• Tracker radiators
• Cryo radiators

Radiator
Tracker
Main Wake
Main Ram
4
Recent TWG activities

• Thermal chamber inspection at Terni with NSPO
  (with Dr. J.R. Tsai and Dr. S. Chen) 6 February
  2006
• Crates, XPD, star tracker, thermal tests
  supervision
• Investigation meeting at SYSU about TTCS EM
  testing 20-23 March 2006
• C. Vettore, A. Pauw, A. Alvino
• AMS Thermal modelling
• On ISS, in LSS

5
AMS 3.4 vs. 4.0
6
Clear anodized

• USS02 changed t/o properties (1)

MLI
Beta Cloth
Silver Teflon
Version 3.3
Version 4.0
7
Clear anodized

• USS02 changed t/o properties (2)

MLI
Beta Cloth
Silver Teflon
Version 3.3
Version 4.0
8
Clear anodized

• USS02 changed t/o properties (3)

MLI
Beta Cloth
Silver Teflon
Version 3.3
Version 4.0
9
Pre-survey comparison

• Pre-survey (16 cases) has been done to compare
  version 4.0 with version 3.3
• Results for Upper and Lower Trunnion bridges and
  for Vacuum Case are shown

10
Upper trunnion bridge temperature differences
11
Lower trunnion bridge temperature differences
12
VC average weighed temperature differences
13
Vacuum case

• In the hottest cases the average temperature
  increases from 21C to 22C
• In the coldest cases the average temperature
  increases from 25C to 24C
• A long time transient needs to be run to assess
  the average-over-mission behaviour

14
Long-time transients RESULTS
15
Survey status (196 cases)

• 60 completed

16
Mass budget

• Target mass for the TCS 274 Kg
• We anticipated 19 Kg saving only 15 Kg possible
• TTCS condenser not feasible
• Further MLI weight breakdown refinement
• Wake radiator and PDS baseplate redesign expected
  for June 2006

17
Mass saving continuing effort

• Integrated analysis (survey)
• ONGOING
• Deatiled design of MLI
• ONGOING AT NASA FOR NASA BLANKETS, ON HOLD FOR
  THE OTHERS
• Precise determination of TTCS weight saving
• CLOSED -8.2 Kg
• Decision pending 1.7 Kg inserts in TRD honeycomb
  panel for zenith radiator fixation

18
(No Transcript)
19
Lower TOF Thermal Test
20
TV/TB test scope

• To demonstrate the ability of equipment to
  operate when
• exposed to extreme operational temperatures
• after being exposed to extreme non-operational in
  vacuum environment.
• To test the thermal design in hot and cold
  conditions
• To verify the heater power budget and the
  thermostats performances
• To define the minimum environmental temperature
  that the non operative TOF can experience
• To validate the thermal math model (TMM and GMM)

21
Temperature measurement point

• Temperature reference point inside the box at
  PMT level
• Temperature control points outside the box on
  the TOF carbon fiber outer surface

22
PMT tv test (done by INFN-BO)
23
thermal test profile

24
TOF temperature levels

• Aging issue
• Quantitative assessment about PMTs aging (vs.
  temperature) from the supplier is missing
• Test levels agreed by TOF team
• TOF team recommends to limit as much as possible
  PMT working at the maximum temperature.
• Decision to be made
• all-test-long TOF is powered ON
• OR
• TOF is powered ON at max temp for minimum
  duration which allows functional tests

25
Analysis results along beta range
26
TCS schedule
27
