Chapter 11 Wave Motion

1

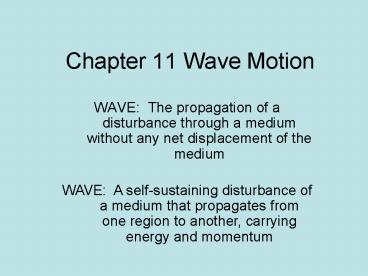

Chapter 11 Wave Motion

• WAVE The propagation of a disturbance through a
  medium without any net displacement of the medium

WAVE A self-sustaining disturbance of a medium
that propagates from one region to another,
carrying energy and momentum
2
Chapter 11 Wave Motion

• The disturbance advances not the material medium

Waves are generated by an object in simple
harmonic motion
3
Click to view animation.
4
Click to view animation.
5
Click to view animation.
6
Chapter 11 Wave Motion

• Two basic types of mechanical waves

Longitudinal and Transverse
7
Chapter 11 Wave Motion

• LONGITUDINAL Wave
• A wave in which the particles of the medium
  oscillate in simple harmonic motion parallel to
  the direction of the wave propagation.

Longitudinal waves are a combination of both
COMPRESSION (squeezing) and RAREFACTION
(elongation)
8
Fig 11.18, p. 384
Slide 8
9
Chapter 11 Wave Motion

• TRANSVERSE Wave
• A wave in which the particles of the medium
  execute simple harmonic motion in a direction
  perpendicular to its direction of propagation.

10
Fig 11.2, p. 372
Slide 10
11
Fig 11.3, p. 372
Slide 11
12
Chapter 11 Wave Motion

• Characteristics of a transverse wave

DISPLACEMENT, y, of a particle in a wave is the
displacement of that particle from its
equilibrium position and is measured by the
vertical distance, y . (in meters)
13
Chapter 11 Wave Motion

• Characteristics of a transverse wave

AMPLITUDE, A, is the maximum value of the
displacement. (in meters)
WAVELENGTH, ?, is the distance, in the direction
of propagation, in which the wave repeats itself.
(in meters)
14
Chapter 11 Wave Motion

• Characteristics of a transverse wave

PERIOD, T, is the time it takes for one complete
wave to pass a particular point. (in seconds)
FREQUENCY, f, is the number of waves passing a
particular point per second. (in Hz, cycles/sec,
sec-1, or /sec)
15
Chapter 11 Wave Motion

• SPEED OF PROPOGATION, OR VELOCITY

16
Chapter 11 Wave Motion

• SPEED OF A TRANSVERSE WAVE ON A STRING

Depends upon Tension, T, of the string and mass
per unit length
17
Chapter 11 Wave Motion

• Reflection of a wave at a boundary
• End of string not fixed rigidly
• Pulse is reflected with same speed and in same
  orientation.
• End of string fixed rigidly
• Pulse is reflected with same speed, but is
  inverted

18
Fig 11.10, p. 377
Slide 18
19
Fig 11.11, p. 377
Slide 19
20
Fig 11.12, p. 378
Slide 20
21
Chapter 11 Wave Motion

• Reflection and Transmission of a wave at the
  boundary of two different media
• Less dense to more dense
• Pulse slows down
• Wavelength of transmitted wave is less than
  wavelength of incident wave.

22
Chapter 11 Wave Motion

• Reflection and Transmission of a wave at the
  boundary of two different media
• Less dense to more dense
• Pulse slows down
• Wavelength of transmitted wave is less than
  wavelength of incident wave.

23
Chapter 11 Wave Motion

• More dense medium to a less dense medium
• transmitted wave moves faster than the incident
  wave
• has a longer wavelength.

24
More dense
Less dense
Same tension different densities
Notice different pulse widths
Inverted reflection
Fig 11.13a, p. 378
Slide 24
25
Less dense
More dense
Same side reflection
Notice different pulse widths
Fig 11.13b, p. 378
Slide 25
26
Fig 11.39, p.398
Slide 26
27
Fig 11.40, p.399
Slide 27
28
Fig 11.41, p.399
Slide 28
29
(No Transcript)
30
Open at one end.
The end of a pipe that is open has an anti-node
(max pressure)
Fig 11.44, p.403
Slide 30
31
Open at both ends.
The end of a pipe that is open has an anti-node
(max pressure)
Fig 11.45, p.403
Slide 31
32
Fig 11.46, p.404
Slide 32
33
Click to view animation.
34
Click to view animation.
35
Click to view animation.
