Review of Regional Activities

1

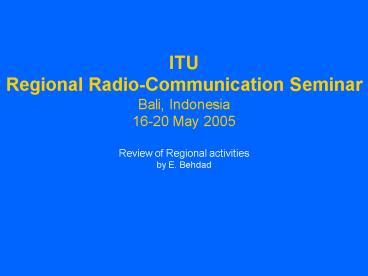

ITU Regional Radio-Communication Seminar Bali,
Indonesia 16-20 May 2005 Review of Regional
activities by E. Behdad
2
Agenda

• Activities related to Broadcasting issues
• Frequency Planning for
• Bhutan
• Indonesia
• Afghanistan
• Digital Terrestrial Broadcasting
• DSB
• DTTB
• Activities related to Spectrum Management
  Radio
• Monitoring
• Establishment of National Spectrum Management
• Myanmar
• Afghanistan
• East Timor
• Training courses on Radio Monitoring
• Development of a new software for Developing
  countries
• (SMS4DC)

3
Bhutan Broadcasting Project

• Current situation
• A 1 KW TV transmitter covers Thimphu
• A 50 KW - SW transmitter covers Radio programmes
  all over the country
• One 20 W FM TX three 1KW Repeaters cover
  western parts of the country
• Distribution of TV programmes Mainly through
  cable networks with some days
• daly and existing TXs.

• Master Frequency Plan for FM TV Broadcasting
• A thorough sight surveying through the whole
  country
• Developing frequency plans for TV and FM.
• Identifying the location of TV FM stations
  and
• Proposing appropriate distribution links
  between the studio(s) and TX

• Obstacle for Nationwide coverage lack of
  distribution links between
• the studios and transmitter stations
  identified in master frequency plan
• due to countrys mountainous
  situation.

• Solution, Implementation of ITU Satellite
  Up-Link TVRO project
• Establishing a Satellite Up-link Station in
  Thimphu,
• Establishing TVRO stations in Rural Areas that
  are electrified.

• Current situation of Up-link project, ITU is
  looking for a partner
• to sponsor 50 of project costs.

4

ITU activities in Indonesia

• VHF/ UHF FM Master Frequency Plans for
  Republic of Indonesia
• Phase I
• Train designated National Experts on Planning
  principals
• Study current situation of FM TV (VHF UHF)
  Broadcasting networks
• in the large cities and their consistencies
  with the technical standards
• Examine Frequency Licenses issued for TV FM
  Broadcasting in
• Jakarta and the Other large cities from
  technical point of view for their
• compliances with the relevant technical
  standard
• Develop VHF/UHF FM Plans for Java Bali
  Islands

• Phase II
• Review the developed plan by National experts for
  the rest of the country and modify it wherever
  is needed.
• Study compatibility of all Frequency Licenses
  issued in Indonesia for TV FM with newly
  developed master Frequency Plan,
• Enhance the trained staff abilities with further
  training on the shortcoming issues that have been
  identified in their developed plan.

5

• ITU activities in Afghanistan (Broadcasting)
• ITU Emergency support to the MoC (Project No.
  7AFG/02/001)

• Master Frequency plan for Sound and Television
  Broadcasting
• MF Sound Broadcasting Service
• Train the designated national experts on
  principal of Frequency planning
• Introduce ITU GE-75 plan to the national
  experts
• review, adjust determine the coverage area of
  GE-75 assignments
• VHF - FM Sound Broadcasting Service
• Introduce ITU-GE84 Plan
• review, adjust modify GE84 VHF-FM assignments
  of Afghanistan
• develop a New FM-BC frequency assignments
• Development of a new comprehensive television
  broadcasting plan

6

• ITU activities on DTB
• ITU/ABU collaborative Project on DSB

• Project objectives
• To determine whether the broadcasting
  environment within the
• selected countries is conducive to
  implementation of digital radio
• services.

• Implementation Strategy
• carrying out country specific techno-economic
  analyses by circulating
• a pro-forma-style Questionnaire
• assessment of the individual responses
• face-to-face meetings
• Recommendations

• Beneficiary Broadcasters (Countries)
• RTB Brunei,
• RTPRC China,
• AIR India,
• VOV Viet Nam,
• IRIB Iran,
• PBC Pakistan,
• SLBC Sri Lanka,
• NTB Thailand and
• TRT Turkey.

7
ITU activities on DTB ITU ABU COLLABORATIVE
PROJECT on DVB

• Project objectives to assist ASP Television
  Broadcasters to make the
• digital
  shift

• Implementation Strategy
• carrying out country specific techno-economic
  analyses by circulating
• a pro-forma-style Questionnaire
• assessment of the individual responses
• face-to-face meetings
• Recommendations

• Beneficiary Broadcasters (Countries)
• RTB Brunei,
• RTPRC China,
• DDI India,
• VTV Viet Nam,
• IRIB Iran,
• PTV Pakistan,
• RTM Malaysia,
• MRTV Mongolia,
• TVRI Indonesia,
• NTB Thailand and
• TRT Turkey.

8
ITU activities on DTB ITU/AIBD Workshop on DTTB
(Digital Terrestrial Television Broadcasting)

• Workshops Objectives, To enhance the TV engineers
  competence
• on principal of DTTB, Frequency Network
  Planning including
• Refreshing the participants on conventional
  Television Broadcasting by reviewing the
• history of Television, current colour
  television and frequency planning in analogue
• environment,
• Why digital Broadcasting, DTTB requirements,
• Digitalisation of Audio video signals, source
  coding, multiplexing, scrambling
• conditional access, forward error
  correction and digital modulation
• Digital Network planning including an overview
  on frequency planning and spectrum
• management system, ITU-R relevant
  recommendations, interference and coordination
• procedures and Analogue Network for Digital
  Broadcasting
• case studies.

• Workshops organized so far Thailand 2001, Brunei
  2002, I.R.of Iran 2003,
• Vietnam 2004. The venue for this year is
  Jakarta Indonesia.

• Beneficiary countries Afghanistan, Bangladesh,
  Brunei, Cambodia, China,
• India, Indonesia, Iran, Laos, Maldives,
  Mongolia, Myanmar, Nepal, Pakistan,
• Philippines , Sri Lanka, Thailand, Vietnam,

9
ITU activities in Afghanistan Cont.

• ITU/IRN/AFG Project for Rehabilitation of the
  Information and
• Communication Training Institute (ICTI) in
  Kabul,
• (Project No. 9AFG/02/002)
• Existing ITCI building fully rehabilitated
• New building designed, constructed, furnished
  and equipped with all utility (water,
• electricity, air-conditioning), to provide
  adequate space for classrooms, laboratories
• conference hall, administration and
  management, mosque, health unit. coffee shop
• and restaurant as well as a dormitory with
  capacity of 120 persons
• Short training courses on ICT related matters
  for young Afghan students
• On duty training courses for MoC staff to update
  them on their ongoing activities
• Academic courses in two years for training the
  students in technician levels
• Academic courses in 4 years for training the
  students in Telecommunications
• engineering levels.

• Ad-hoc assistance under ITU-BDT special
  programme for
• Least Developed Countries.

10

• ITU activities in Afghanistan (SMS)
• ITU Emergency support to the MoC (Project No.
  7AFG/02/001)

• Spectrum Management and Radio Monitoring
• Development of a new Radio-communication Law
• Development of Afghanistan Radio Frequency
  Spectrum Allocation Table
• Development of Afghanistan National Spectrum
  Management System
• Development of a Frequency Fee calculation
  Formula
• Development of a comprehensive
  Radio-communication Handbook
• Training courses on SMS and Radio Monitoring
• Preparation of Technical specifications for
  Fixed and Mobile Monitoring
• Stations and supervising the bidding process

• Development of Fixed wired Wireless Network
  Access Plan for
• Kabul and five other major cities in
  Afghanistan,
• Access Network Engineering
• Technical Specifications for Fiber Optic Cable
  Networks
• Wireless Local Loop (WLL) network.
• Preparation of Tender Document for Construction
  of Copper Cable Local
• Telephone Network for Kabul city and the other
  5 major cities

• Development of MoC Financial Management System
  Creation a
• link between MoC MoF to connect to the MoF
  server.

11
ITU activities in Afghanistan (Cont.)
12
ITU activities in Afghanistan (Cont.)
MAIN MENU
???? ????
13
ITU activities in Afghanistan (Cont.)

Applicant Form (front page) (?English)
14
ITU activities in Afghanistan (Cont.)
Data entry Form (English)
15
ITU activities in Afghanistan (Cont.)

Licensing Form (English)
16
ITU activities in Afghanistan (Cont.)

Assigned frequencies in different services in
each band
17
ITU activities in Afghanistan (Cont.)
18
Frequency Fee Calculation Formula
Nature of service
Location coefficient
User classification
Monthly fee B.A.T.S.L.U
Bandwidth (MHz)
Covered area (km2,km3)
Using Duration (1-59)
19
Covered area examples
20
Coeffient for diferent tyoe of services

21
ITU activities in Afghanistan (Cont.)
Training courses on Radio Spectrum Monitoring
22
ITU Activities in Myanmar SMS, Radio Monitoring
MCT

• National Spectrum Management System
• Data collection (analyzing current situation of
  frequency utilization
• Considering the present and future spectrum
  requirements
• Development of National frequency allocation
  Table
• Development of national Radio-communication
  handbook
• Installation of Windows Basic Automated Spectrum
  Management System
• (WinBASMS) and training the national experts

• Radio Monitoring
• Train the national experts on Radio Monitoring
  Measurement techniques to
• provide back-up information for spectrum
  manager
• Verify wanted unwanted signals detect the
  unauthorized
• transmissions identify the source of
  interference
• Measure the spectrum band occupancy

• Calibration of existing Monitoring equipment
• Recommendation for establishment of an
  efficient Fixed monitoring
• station

23
Multipurpose Community Tele-center in Myanmar

• MCT as a means for provision of access to
  information
• communication Technologies in remote and Rural
  areas.
• Project started in November 2002 and was
  completed
• in March 2004.
• Location Phaunggyi area with a very limited
  access to any kind of
• communications facilities,
• Population 20,000
• The MCT Centre equipped with
• Two servers, ten computers, and auxiliaries,
• A copier machine,
• A digital camera,
• An over-head projector,
• A network laser printer,
• A colour printer,
• VCR TV sets
• A VAST Terminal as transmission link (an iPSTAR
  Satellite System),
• Power, water supply, Air conditioning system for
  server,
• Class rooms and furniture,

24
Multipurpose Community Tele-center in Myanmar

• Beneficiaries
• The Civil Service Society Institute,
• Central Cooperative College,
• 10 primary Schools 2 High Schools,
• Teacher Training College,
• Township Development Office,
• 2 Station Hospitals and
• Hlegu Education College.
• Services
• Telephony,
• Distance education distance learning,
• Computer Training,
• Health and Telemedicine,
• Cultural Information,
• Community hall facilities
• Business information,
• Office facilities,
• Professionnel training
• High-speed internet access (incoming 256 Kbs,
  outgoing 128 kbs) and e-mail services are also
  available

25
ITU activities in East Timor SMS

• Phase I (implemented)
• Analyzing the current status of Frequency
  Management system.
• Training on Spectrum management Techniques
• Installation of WinBASMS Training on Data
  Entry into WinBASMS
• Provision of an Application form user manual
  for the new applicant
• Data Collection Form Data Entry into the
  WinBASMS
• Peace Keeping Force (PKF) data transferring
  the data from PKF
• to the WinBASMS,
• Transferring the SMS responsibility from PKF to
  the Ministry of Transport,
• communications Public Works.

• Phase II ( underway)
• Development of National Frequency Allocation
  Table,
• Development of Radio-communication Handbook
  (Law)
• Installation of ITU-new developed software
  (SMS4DC) Training

26
Training on Radio Monitoring and SMS for ASP 23
31 May 2005 (Beijing, China)

• Training Programme
• Fundamentals of Radio Spectrum Management,
• Basic Technical Parameters Propagation
• EMC (Electromagnetic Compatibility Analysis)
• Database and GIS (Geographic Information System
• Transceiver Architectures, including
  Modulations demodulation techniques,
• matching units transformation lines,
  Antennas, etc.
• Fundamental of Radio Spectrum Monitoring
• General principle of DF, engineering features
  DF Antennas
• Unwanted signals and enforcement of
  Radio-communications Law
• Equipment Calibration and measurement techniques
• Practically measurement of Frequency,
  Field-strength, Power flux-density,
• Spectrum occupancy, Bandwidth Modulation.
• Specific measurements by mobile monitoring
  station
• Data analysis and Reports
• Beneficiary countries
• Afghanistan, Indonesia, Myanmar, Maldives,
  Solomon Island and Vietnam

27
An overview on ITU - SMS4DC (underdevelopment)
