Title: Embedded Passive Components in Circuit Boards


1

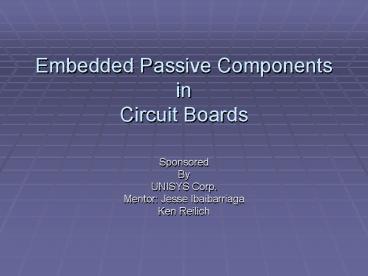

Embedded Passive Components in Circuit Boards
  • Sponsored
  • By
  • UNISYS Corp.
  • Mentor Jesse Ibaibarriaga
  • Ken Reilich

2
Team Members
  • Victor Kohr
  • Emmanuel Okonta
  • Wing Ho Lam
  • Roland Pang

3
Agenda
  • Gantt Chart
  • Simulations
  • Cost Comparison
  • Demo of the cost software

4
Gantt Chart
5
Modified Simulations
  • Improved Area
  • Vias Capacitance and Inductance are Taken into
    Account.
  • Embedded Capacitor indeed has NO Traces nor Vias
    Connected to it.
  • CMOS Load Replaces the Resistive Load.
  • Assumptions
  • Simple Driver (AC source)
  • Z0 50 ohm for the TMLs

6
Cross section of a Via
7
Calculation of capacitance and inductance of Via
  • C 1.41ErTD1/(D2-D1)pF
  • Erelectric permeability of the PCB
  • Tthickness of the PCB
  • D1diameter via pad, in
  • D2diameter of clearance hole, in
  • In our case,
  • 1.41(4.5f)(50m)(24m)/(36m-24m) 63fF
  • L 5.08hIn(4h/d)1nH
  • hlength of via, in
  • ddiameter of via pad, in
  • In our case,
  • 5.08(50m)ln(4(50m)/(36m)1) 689pH

8
Discrete Capacitor (Modified)
9
Impedance of Discrete Capacitor
Impedance (ohm)
Resonant _at_ 274MHz
Frequency (Hz) )
10
Embedded Capacitor (Modified)
11
Impedance of Embedded Capacitor
Impedance (ohm)
Resonant _at_ 2.3 GHz
Frequency (Hz)
12
Discrete Resistor (Modified)
13
Simulation Results
Gain in DB
Cutoff_at_490Mhz
Frequency (Hz)
14
Difficulty Of Searching Information On Prices
  • Technical and marketing department are separated
  • Confidential information
  • Product are too new that they do not have price
    yet
  • Miscommunication

15
Integrated Circuit Price List
16
Information On Price And Performance Of Embedded
Capacitor
