Ecopath, Ecosim, and fisheries management??

1

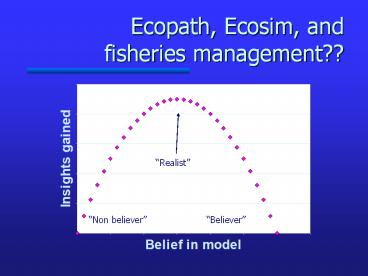

Ecopath, Ecosim, and fisheries management??
Realist
Believer
Non believer
2
Some terminology

• ECOPATH - Builds a food web
• ECOSIM - One way to make this web dynamic
• ECOSPACE - An attempt at spatial modeling
• EwE (from www.ecopath.org) is one implementation.
• Semi-black box
• This useful for initial work (data exploration,
  basic tradeoffs, in other words, ecological
  priors)
• Currently insufficient for extensive formal
  confrontation of models and data
• Most work here was performed with Ecosim
  algorithms, outside of the black box

3
Model distribution

• EwE (from www.ecopath.org) is one implementation.
• Semi-black box
• This is v. powerful for some uses (data
  exploration, tradeoffs)
• Currently insufficient for extensive formal
  confrontation of models and data
• Our aim is to build in both of these areas
  (current use and better tools).

4
In the beginning was DYNUMES...

• ECOPATH
• Began with Polovina 1984, updated by Christensen
  and Pauly (early 1990s) - statistics added until
  current (year 2000) version. But basic equations
  are unchanged (and well-examined) for over 10
  years.
• ECOSIM (and ECOSPACE)
• Recent work to make a food web dynamic, theory
  and practice new (some is un-reviewed with ad-hoc
  corrections).
• Unified (open?) format is strength

5
Why try to use the whole food web in a
predictive model?

• Eastern Bering Sea

6
What is the use of a mass-balance ecosystem
model, anyway?

• First and foremost, stock-scale (usually annual)
  data integration, hypothesis exploration.

7
Use may be a qualitative communication of
trade-offs

• This model may do whatever you want, there are
  good and bad examples.
• But what you have to do to get what you want may
  be very instructive.
• Dont mistake the explorations for yield
  predictions.

8
Not a single species replacement used in
conjunction

• First steps to large marine scale predator/prey
  management
• Climate shifts vs. noise (pulses) vs.
  interspecies vs. fishing.
• The secret life of metrics (total system biomass?
  T.L. of catch?)
• Ecological theory.
• Sensitive (but mysterious) species issues.
• Predator culling is a real issue
• current back-of-the-envelope approaches may be
  worse (these models show culling may or may not
  work). But models are the only way...
• Data quality
• Reconciliation, sensitivity, and targeting new
  data.
• Will more data help (the predator culling issue).
• Radical re-design of working an ecosystem.
• Command, control, or along for the ride?

9
Criticisms

• Its a model
• So is everything

10
Criticisms

• Its a model on the wrong scale
• Stocks, not processes

11
Criticisms

• Its a biomass dynamics model
• Its one tool among many.

12
Biomass dynamics are poor dynamics???

• Its our conceptual basis (MSY).
• Replace one set of assumption (constant Ms) with
  another (simplified age structure).
• A balance between necessary complexity across
  species.
• A complement to age-structured (single or
  multi-species) models.
• The why wont our hypothesis work with simple
  models challenge.
• Where it breaks down, detail may be added (delay
  difference etc.).

13
Comparison (deterministic forecast)

• Single species
• M(age) fixed, estimated
• Growth/Bio fixed or DD at age
• Recruit(0) f(N, B)
• Partial recruitment to fishery, spawning
• climate, other spp added through external
  parameters
• MSFOR
• M(age) f(pred(age), prey(age))
• Growth/Bio fixed or DD at age
• Recruit(0) f(N,B)
• Partial recruitment to fishery, spawning,
  ontogenetic (given data)
• Climate external
• Ecosim
• One or two pools -2 pools have internal delay
  structure
• M(juv,adu) f(Bpred,Bprey)
• Growth/Bio(juv/adu) f(Bpred,B prey)
• Recruit(0) f(Bpred, Bprey)
• (If one pool, recruit is fixed prop. Cost of
  growth)
• Knife-edged recruit to fishery, spawning,
  ontogenetic, climate still external

14
Criticisms

• Its an equilibrium biomass dynamics model
• Mass-balance is a perturbable starting point
• Mass-balance is not an equilibrium assumption.
• (First, a look at the mass balance process).
• In moving from Ecopath to Ecosim, an equilibrium
  is built.
• This confrontation is the major work to discuss.
• (Overcompensatory functional responses, etc.).

15
A single trophic relationship
Bi
Q/BjDCijBj
P/BjBj
Bj
P/BjBj Ii Ei - SjQ/BjDCjBj - Other
loss
0 (Mass Balance)
16
Solving each unknown

• P/BiBiEEi FBi SjQ/BjDCjBj i
• P/B, EE unknown
• top down (demand) solution.
• Q/B unknown, B unknown
• top down / one prey item
• Catch (FB) should be known.
• Diet composition must be known.
• Generalized inverse for over- or under-determined
  models.

17
Sources of dissipation
(Q/B)
(P/B)
(1-G)
(1-EE)
18
Sources of dissipation (EE is the key).

• EE is what you dont know about the system.
• May include known time trends in the accounting
  (BA biomass accumulation).

QGEE
(Q/B)
(P/B)
(1-G)
(1-EE)
19
Mass-balance (Ecopath step) reconciles data - not
in itself an equilibrium

• Data issues
• always a mix of good, bad, and ugly
• a different way of reconciling conflicts
• Combine and compare
• Harvest/stock assessments
• Diet data
• Bioenergetics/growth
• Mortality/rate studies
• Lower trophic level production

20
The (black) art ofmodel balancing

• Benefit you start to see the trade-offs
  (necessary correlations).
• Its where you first address data quality.
• Reconciliation of scales, techniques, and
  sources.
• What must you do to reconcile multiple single
  species assessments
• Like the black art of Bayesian priors

21
The equilibrium question

• All models have an equilibrium.
• Ecosim starts there its an Ecopath to Ecosim
  transition issue.
• Fast rebound (overcompensation) may be tuned.
• Sensitivity approach may be implemented to fix
  this (spin up approach).

22
Bioenergetics
B P/B Q/B DC EE Catch BA etc. (mass accounting)
Alternate stable states??
23
ECOPATH to ECOSIM

• From a zero-dimensional equilibrium state to a
  zero-dimensional dynamic equation

Q/BBj
Prey
P/BBi
Predator
EE
24
Dynamics of overlap - (one predator one prey)
Its cold down there!
V
Bj
B-V
aijVijBj
vij (Bi-Vij)
Bi - Vij
Vij
Assume fast equilibrium for Vij
vijVij
dVij /dt vij(Bi-Vij) - vijVij - aijVijBj
25
The appearance of Density Dependence

• dVij /dt vij(Bi-Vij) - vijVij - aijVijBj 0
• Vij vijBi/(2 vij aijBj)
• Cij (Bi,Bj) aijvijBiBj
• (2 vij aijBj)

Prey biomass
Cij (or Minstant)
Cij /Bj
Predator Biomass
26
Mathematically, halfway between the trickle and
the vat

• Cij (Bi,Bj) vijBi
• ( 2vij 1 )
• aijBj
• Integrate limited smaller spatial and temporal
  dynamics (more or less)
• Single vulnerability parameter X 2v/aBj ratio
• AGE STRUCTURE
• Possible example good evidence for this
  functional response, both by age (e.g. pollock)
  and by density-dependence (e.g. halibut).

27
One predator, many prey

• Prey switching exists as a complex of 3 variables

• base diet, vulnerability, feeding time to modify
  suitabilities
• Captures some age-structure dynamics without the
  age structure
• Basic assumption is that biomass is not
  independent of diet, age structure.
• Switch or die?
• Invasions/vast changes not captured.

28
Age-structure simulation
Smaller biomass implies younger age structure
through changing relative vulnerability set by
v parameters.
29
MSFOR vs. Ecosim?

• Different sides of the same coin
• Simplify age structure (Ecosim) or simplify
  consumption (MSVPA).
• MSVPA assumes fixed suitabilities at age.
• Ecosim assumes changing suitabilities with
  biomass (and therefore with age and foraging
  combined).
• Hybrid methods are quite possible.

30
Fishing in Ecosim

• By individual species or gear type
• may apply to a species directly, or as an effort
  multiplier to gear.
• Gear type applies exploitation rate on multiple
  species group...bycatch is tied to gear effort.

31
Model behavior

• Top-down (fishing) experiments
• Apex predators behave as single-species models
  with (over?) compensatory growth of prey.
• Pella-Tomlinson form if prey is fixed.
• Cascades appear below apex predators.
• Middle and lower trophic level fishing results
  are unpredictable.

32
MSY and overcompensation in base scenarios
Phytoplankton
Zooplankton
Fish

• (Aydin 2001 submitted)

33
The effect of vulnerability on MSY
Phytoplankton
Zooplankton
Fish

• Fish
• Catch
• Zoop
• B/B0

34
age-structure and bioenergetics

• Some basic decisions in the model need to be
  revisited in the next generation.
• Coordination with MSVPA
• Energy partitioning
• Myers et al.
• Bioenergetics decisions.
• But led to compesation/depensation.

35
MSY and bioenergetic overcompensation

• Another example passive vs. active metabolism in
  zooplankton

Fish
Phytoplankton
Zooplankton
36
Fit to single species?
37
Additional data anomalies in consumption

• Systematic anomalies in consumption rates?
• Food habits
• Predator size
• Prey size
• abundant year classes
• Age class models
• Run the model backwards? Too much noise!
• Evidence of alternate stable states?

38
Recruitment

• A delay-difference equation with juveniles
  divided into monthly pools
• Size vs. age at recruitment tuneable
• Energy apportionment strategies
• Individual growth rates
• Knife edge recruitment to fishery, spawning, and
  ontogenetic switch.
• Spawning biomass is indirect measure.
• This is a primary simplification (also for
  afternoon discussion).

39
Model behavior

• Bottom-up (forcing) experiments
• Time scale (frequency) is important.
• Who responds the fastest?
• Invasions are not predictable.
• Explanations may be dangerous
• External (climate) hypotheses must exist
• (EBS climate fitting as case-study afternoon)
• climate image

40
mesoscale and migrations

• Mesoscale
• Reasonable as single-species models for fishing
  experiments
• Seasonal changes, aggregations on prey may lead
  to detectable systematic changes in foraging
  parameters
• Migrations
• Model may be damped by external food sources.

41
Needed to make ECOSIM rigorous

• Many of the problems listed (prey switching,
  etc.) are not specific to Ecosim.
• Basic fitting exists.
• Thorough peer-reviewed testing against
  single-species, MSVPA models.
• An improved statistical framework.
• This is the next major development (come see the
  quantitative seminar!).

42
Fitting 1979-2000

• First
• Vul fitting indicates low vuls (vlt0.05) fits
  better (recruitment dominated??)
• Kept vuls at 0.3

43
The confrontation can it be done, what do we
learn?

• Ecopath as priors.
• Specification of full-scale problem in progress
  (balancing importance and covariance of
  bioenergetics, foraging, mortality).

44
Bioenergetics
B P/B Q/B DC EE Catch BA etc. (mass accounting)
Still Blowing up at 3 am
Ecopath as priors to examine correlation using
population and life history trade-offs, some
single-species models
45
Meanwhile, culling in a simple model

• Can we reasonable predict the results of a
  removal of the top predator?
• Groundfish are near MSY
• FM
• 80 of M from mammals
• 15 of M from pred. Fish
• 5 unidentified
• Can we increase yield (while holding effort
  constant) by removing mammals?

46
Yes (made to happen)
(Truism killing an animal will stop it from
eating but where does the energy end up?)
47
Our confidence?

• Perform 1000s of draws, allowing start out of
  equlibrium drawing
• Diets from uniform 30
• Vuls from range between 0.1 and 0.6
• All others (P/B, Q/B, passive/active respiration)
  from uniform 10

48
Results often down, not up
Biomass after 50 years/start biomass

• Mammal vs. predatory fish fish wins
• Improving diet data unlikely to help this
  picture.
• Possibility of improving mammals through lower
  fishing also uncertain.
• Admission this is a simple, tightly-wired web
  (vuls tightly wired??).
• What about more complex webs?
• What about climate variability?
• What about the unmodeled, inedible predator?
• WHAT ABOUT PROCESS UNCERTAINTY INCREASE???

49
Command, control, or along for the ride?

• If we cant predict manipulations (esp. in light
  of added climate variability), we should aim/add
  to our objectives the minimization of
  unpredictable cascades, rather than the
  optimization of multispecies yields or specific
  trophic-based rebuilding plans.
• A healthy ecosystem (without homeostasis).
• How much did all fish go through regimes before
  we fished them?

50
Laundry list 1

• Model savvy in current uses
• Endangered (im)possibilities (restore S.S.L.s
  through prey?)
• Climate and causality seeking.
• Seeking key/critical species interactions and
  uncertainties.
• Model behavior and improvement.
• Radical rethinking (the impossible MSY and
  variability?)

51
Laundry List for management discussion (some may
work or may have worked)

• First steps to large marine scale predator/prey
  management
• Necessary in a loosely/tightly wired system?
• Climate shifts vs. noise vs. interspecies vs.
  fishing.
• The secret life of metrics (total system biomass?
  T.L. of catch?)
• Ecological theory (cultivation/depensation).
• Communication of alternatives.
• Endangered and HAPC species Issues.
• Predator culling is a real issue
• current back-of-the-envelope approaches may be
  worse (these models show culling may or may not
  work).
• Data quality issues
• Reconciliation.
• Sensitivity/targeting new data.
• Radical re-design of working an ecosystem.
• Command, control, or along for the ride?
