The Underpass.part 2

1

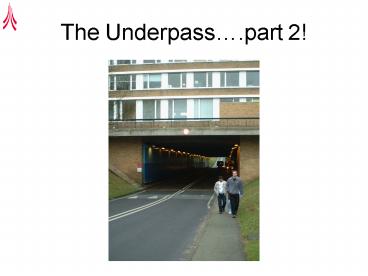

The Underpass.part 2!
2
User Interaction

• Technologies
• RFID tag embedded in student ID card
• RFID readers track users position and relocate
  the displays accordingly
• Display is a ruggedised flat screen (TFT or
  similar), with PC resolution or better (1200dpi
  ).
• Touch screen displays capable of managing more
  than one user session
• Waterproof safe guaranteed not to electrocute
  users!

3
No user present
4
User is detected (position and ID)
OPEN
5
User activates wall
My Buses
My Adverts
My Events
6
User finds a bus
Selected BusNone selected
Due in-
My Buses
Bus6376152
DestinationHeysham (Asda)Lancaster
(Sugarhouse)Garstang (Lodge Rd)
Due in5mins7mins10mins
Select other bus
My Adverts
My Events
7
User selects a bus
Selected Bus63 (Asda)
Due in5 mins
My Buses
My Buses
My Adverts
My Events
8
User views adverts
Selected Bus63 (Asda)
Due in1 min
My Buses
My Buses
My Adverts
All Categories
OPEN
My Events
9
User is warned of bus arrival
Selected Bus63 (Asda)61 (Asda)
Due in!NOW!7mins
My Buses
My Buses
My Adverts
All Categories
!! The 63 bus to Asda is here !!(Next bus to
Asda is 7mins away)Cancel
OPEN
My Events
10
User leaves area, screen blanks
OPEN
11
Contextual Information Required

• RFID associate information with a unique
  person
• Location Sense that a person is close to
  interactive wall and display in relevant position
  on wall
• History System must store history of users
  interactions and deal with this in intelligent
  way to present preferences in categories aka
  Amazon, eBay. For example
• My Buses
• Last 3 buses caught
• Bus for Roc Soc Event, next Tue
• My Ads
• Cars for Sale
• My Events
• Rock Society events
• Grad College Events

12
Contextual Information Required (cont)

• Public Transport Information
• Buses estimated time of arrival. (GPS?)
• Taxi Prices
• Further User Information (college, societies,
  clubs)
• Built up by scanning and updating RFID
• when joining club or society
• when joining university college
• when watching a film in campus cinema

13
Questions and Feedback.?
