Title: GOAL


1

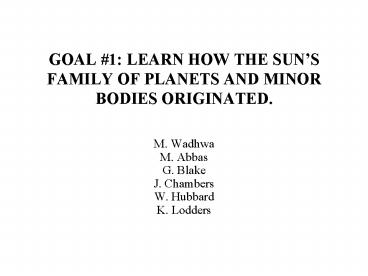

GOAL 1 LEARN HOW THE SUNS FAMILY OF PLANETS
AND MINOR BODIES ORIGINATED.
  • M. Wadhwa
  • M. Abbas
  • G. Blake
  • J. Chambers
  • W. Hubbard
  • K. Lodders

2
Introduction
  • Our solar system was born about 4.6 billion
    years ago when the collapse of a cloud of gas and
    dust resulted in the formation of a nascent Sun
    surrounded by an accretion disk. Subsequently,
    condensation and coalescing of materials in the
    disk formed solid aggregates that became the
    building blocks of the major and minor solar
    system bodies including the planets and their
    moons, asteroids, Kuiper-belt objects and comets.
    Many of the characteristics of our solar system,
    and the bodies within it, were established during
    the first billion years or so if its history.
    This is also the period during which life emerged
    on Earth, and possibly in other places in the
    solar system. However, processes active since
    this earliest epoch have either overprinted or
    erased much of the record of conditions and
    processes in the early solar system, making it
    extremely challenging to decipher this record.
    Nevertheless, this record is still well preserved
    in the physical and chemical characteristics of
    some solar system materials, such as the oldest
    rocks on the Earth, Moon and Mars, primitive
    asteroidal meteorites, and comets. Moreover,
    novel approaches involving theoretical modeling,
    computer simulations and experiments, as well as
    astronomical observations of other newly born
    star systems, allow us to probe through the
    depths of time to better understand the
    conditions and processes occurring in the
    earliest history of our own solar system.

3
OBJECTIVE 1 Understand conditions in the solar
accretion disk and processes marking the initial
stages of planet formation
  • Investigation 1a Chemical and isotopic
    compositions of primitive meteorites and their
    components Blake.

4
OBJECTIVE 1 Understand conditions in the solar
accretion disk and processes marking the initial
stages of planet formation
  • Investigation 1b Physical, chemical and isotopic
    characteristics of comets and KBOs Blake.

5
OBJECTIVE 1 Understand conditions in the solar
accretion disk and processes marking the initial
stages of planet formation
  • Investigation 1c Theoretical modeling of nebular
    dynamics to account for the physical and chemical
    characteristics of primitive solar system
    materials and astronomical observations of
    accretion disks Lodders.
  • Lodders The history of the solar nebula - the
    gaseous accretion disk surrounding the Sun during
    its birth plays a central role in understanding
    the origin of the solid and gaseous planets as
    well as the other small bodies in the solar
    system. Accretion disks observed around other
    young stars can provide snapshots of the physics
    and chemistry that also must have been ongoing
    when our solar system formed. Although currently
    disk observations may not yet have the spatial
    resolution necessary for detailed studies, such
    observations will give valuable tests for
    dynamical models of planet formation around young
    stars.
  • The gas and dust from an interstellar molecular
    cloud went through various processes in the solar
    nebula and resulted in the formation of the Sun
    and planets. Several questions about these
    processes are still lingering unanswered. What
    are the time scales for photochemical and
    thermochemical reactions involving the compounds
    which influenced the opacity and hence the energy
    transport and mixing processes within the solar
    nebula? What is the influence of magnetic field
    driven turbulence on dynamical mixing of gas and
    dust in accretion disks? How much unprocessed
    interstellar cloud material remains in primitive
    objects such as comets and Kuiper-Belt Objects
    located in the outer solar system, and how much
    was preserved in the asteroid belt from where
    most primitive meteorites originate? What
    compounds of the life-sustaining elements carbon,
    oxygen and nitrogen were inherited by the solar
    nebula from the interstellar medium? The
    questions about the carbon and oxygen containing
    compounds are of renewed interest because recent
    spectroscopic analyses of the solar photosphere
    indicate that these elements are almost a factor
    of two less abundant in the Sun and in the
    overall solar system than previously thought.
  • The relatively recent observations of gas giant
    planets quite close to a central star in other
    solar systems suggest that planets may form at
    some distance from the central star and then
    migrate inwards toward the star. By analogy, such
    processes may also have played a role in the
    solar system. If so, the gravitational tug from
    the migration of large, massive gas-giant planets
    could have influenced the accretion history
    (e.g., late accretion of volatile-rich
    planetesimals) of the terrestrial planets.

6
OBJECTIVE 1 Understand conditions in the solar
accretion disk and processes marking the initial
stages of planet formation
  • Investigation 1d Theoretical modeling and
    experimental obervations of the processes
    involved in the initial stages of planet
    formation Abbas.
  • Chambers modifications by Hubbard and Abbas
    The formation of planets involves a number of
    steps with different physical and chemical
    processes occurring at each stage. For the rocky
    planets, early stages involved interactions
    between dust grains and diffuse, turbulent gas in
    a microgravity environment. Later stages involved
    high speed collisions between large solid bodies
    and gravitational interactions during near
    misses. Giant planets such as Jupiter are mostly
    composed of gas but a large solid core may have
    been necessary to trigger their formation. Such
    cores would have formed in the same way as the
    rocky planets. The ice-rich giant planets Uranus
    and Neptune may be the incomplete cores of
    hydrogen-rich giant planets similar to Jupiter
    and Saturn, suggesting that the Suns primordial
    gas nebula was too tenuous or already lost when
    Uranus and Neptune formed. Gravitational
    interactions between growing planets and the
    Sun's protoplanetary nebula played a big role in
    determining the current configuration of the
    planetary system. Theoretical simulations of
    these processes and of the rate of migration of
    primordial giant planets, as affected by the
    nebula, will help us to understand the present
    and past architecture of our solar system and
    extrasolar planetary systems. However,
    theoretical models need to be based on
    observations and experimental data.
  • Interpretation of observations of emissions from
    dust grains as well as modeling of the
    protoplanetary disk processes is based on
    radiative transfer models that involve
    experimental measurements of the optical
    properties. These measurements include complex
    refractive indices, and extinction properties or
    opacities of the analogs of dust grains in the
    protoplanetary disk, in particular in the
    infrared and the UV spectral regions. The dust
    grains in the disk are generally charged, and the
    grain charge influences the grain dynamics,
    grain-grain and grain-gas interactions, grain
    coagulation and evolution. Experimental
    investigations of grain charging processes by
    photoemission (photoelectric yields of micron to
    submicron size dust grains), collisions with gas
    phase electrons, and by triboelectric and contact
    charging processes are needed to provide more
    realistic information to understand and model the
    processes involved. In addition, experimental
    investigations of the growth and sticking
    efficiencies of dust grains by studying
    condensation processes of volatile gases on dust
    grains will provide valuable information for
    studies of the growth of dust grains in the early
    stages. Thus, studying dust grain sticking and
    collisions in a turbulent, low pressure gas and
    in microgravity will provide an important
    foundation for our understanding of the early
    stages of planetary growth and essential ground
    truth for computational models of planet
    formation. The processes involved in collisions
    between large solid bodies and the dispersal or
    reaccumulation of fragments can best be
    understood by observing these processes and their
    outcome in the modern asteroid belt and planetary
    ring systems. The asteroid belt bears the scars
    of many energetic collisions in its history.
    Flybys, orbiting spacecraft and sample return
    missions will tell us much about the outcome of
    violent collisions between asteroids as well as
    the gentler collision that allowed these bodies
    to accumulate from dust grains and small solids.
    Our limited understanding of planetary migration
    can be enhanced using constraints based on the
    modern orbital arrangement and chemical makeup of
    the main-belt, Trojan and Kuiper-belt asteroids.
    Current theories of planet formation infer that
    chance played an important role in determining
    the shape of the Solar System. For this reason,
    continuing efforts to detect and characterize
    extrasolar planets will improve our understanding
    of the processes involved by determining the
    range of possible outcomes.

7
OBJECTIVE 2 Learn about the earliest processes
occurring on the surfaces and interiors of
planets and minor bodies
  • Investigation 2a Physical and chemical
    characteristics of asteroids and their
    relationship to meteorites ?.

8
OBJECTIVE 2 Learn about the earliest processes
occurring on the surfaces and interiors of
planets and minor bodies
  • Investigation 2b Studies of ancient rocks on the
    Earth, Moon and Mars Wadhwa.
  • Wadhwa The earliest processes occurring in the
    inner solar system have left their imprint on the
    rock record on the terrestrial planets.
    Unfortunately, rocks on the Earth older than
    about 3.5 billion years have been almost
    completely eradicated by processes such as
    impact, weathering, tectonics and biological
    activity. Nevertheless, although rare, there are
    still localities where rocks and minerals that
    preserve a record of the first billion years of
    Earth history may be found and petrologic,
    chemical and isotopic investigations of these
    materials can help us to understand the
    environment on the early Earth and the processes
    that shaped it. Unlike the Earth, the Moon still
    retains a substantial record of the formation of
    the Earth-Moon system. The latest computational
    models indicate that the Moon was formed by the
    energetic impact of a Mars-sized body into the
    early Earth. The Apollo and Luna samples and
    lunar meteorites are helping to elucidate some of
    this early history, but the limited regions of
    the Moon sampled by these materials restricts
    their ability to address some fundamental
    questions. For example, we still have only
    limited constraints on how the impact flux varied
    in the region of the Earth-Moon system during the
    first billion years of solar system history, even
    though this issue has important implications on
    questions relating to the environment on the
    early Earth and the timing of emergence of life
    on this planet. The South Pole-Aitken basin on
    the Moon, one of the largest impact structures in
    solar system, exposes materials from the deep
    crust and possibly the upper mantle, and provides
    an opportunity to sample materials unlike those
    that have been previously available. Moreover,
    impact melts from this structure would provide
    the opportunity to obtain a precise age of the
    basin-forming event. The ancient highlands of
    Mars also preserve a record of the earliest
    processes occurring on that planet. Remote
    analyses by spacecraft and detailed studies in
    state-of-the-art laboratories on Earth of
    returned samples of ancient Mars rocks will be
    invaluable towards a better understanding the
    earliest conditions and processes on the
    terrestrial planets.

9
OBJECTIVE 2 Learn about the earliest processes
occurring on the surfaces and interiors of
planets and minor bodies
  • Investigation 2c Interior structure and
    chemical-isotopic compositions of the deep
    atmospheres of the giant planets and comparison
    with characteristics of exoplanets Hubbard.
  • Lodders In our solar system, most of the
    planetary mass is in Jupiter, Saturn, Uranus, and
    Neptune. Still, their deep atmospheric
    composition as well as the interior structure
    remains poorly known. How much water do they
    contain? What is the cloud-layer structure in the
    gas-giant planets? How big are their deep cores
    and if their cores indeed exist, how and when did
    these cores form? Information on the isotopic
    composition of C, N, O, and the noble gases is
    another desired diagnostic tool to understand
    giant planet formation and evolution.
    Self-consistent models for the formation and
    evolution of all giant planets require better
    observational data of the chemical and physical
    properties that only can be provided by
    spacecraft missions. The Galileo Mission to
    Jupiter showed us that that entry-probe
    measurements can lead to valuable results but
    reliable in-situ measurements of the abundances
    of methane, ammonia, water, the noble gases,
    compounds containing elements such as e.g.,
    sulfur and phosphorus, are required for all outer
    planets to build a solid base for models of giant
    planet formation in the outer solar system.
  • Hubbard We now have our first measurements of
    atmospheric compositions in giant planets
    orbiting other stars. Interpretation of these
    measurements depends on many poorly understood
    processes such as cloud formation, deep
    convection and local weather, and effects of
    irradiation from the parent star. The same
    processes are at work in the atmospheres of our
    own giant planets. Some hot exoplanets may even
    have observable silicate clouds analogous to
    those thought to be buried deep in the
    atmospheres of our own giant planets, together
    with more easily observable water vapor.
    Definitive measurement of Jupiters deep water
    abundance is needed to understand the formation
    processes for giant planets, and will soon be
    needed for comparison with exoplanet
    measurements. While the highly successful
    Galileo probe gave us our first look at Jupiters
    atmospheric chemistry, it did not reach high
    enough pressures to definitively measure water, a
    key tracer of Jupiters formation.
    Interpretation of the probe data was complicated
    by local meteorology, and at the deepest levels,
    the probes interior temperature was far higher
    than planned. The available Jupiter probe
    abundance results are a puzzling combination of
    some values that are higher than expected (e.g.,
    noble gases that are indicative of
    low-temperature enrichment processes) and some
    that are much lower than expected (e.g., the
    noble gas neon). However, the probe confirmed an
    important result from interior modeling studies,
    namely that Jupiters envelope is enhanced in
    elements heavier than hydrogen and helium. The
    next step in experimentally understanding these
    results is to probe Jupiters atmosphere again,
    preferably at locations that have varying
    meteorology, as well as to deeper levels, say to
    about 100 bars. Similarly, it is essential to
    make comparable measurements in the atmospheres
    of our other three giant planets. New revisions
    of abundances of the elements carbon and oxygen
    in the Sun itself are upsetting the paradigm for
    the interior structure of the Sun and its helium
    abundance, and it is certain that comparable
    measurements in our giant planets and extrasolar
    giant planets will lead to far-reaching and
    revolutionary changes in our understanding of
    planetary formation and evolution.
Write a Comment
User Comments (0)
About PowerShow.com
