Testing Webbased applications

1

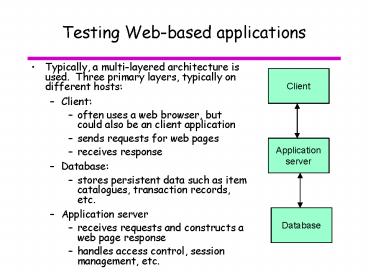

Testing Web-based applications

• Typically, a multi-layered architecture is used.
  Three primary layers, typically on different
  hosts
• Client
• often uses a web browser, but could also be an
  client application
• sends requests for web pages
• receives response
• Database
• stores persistent data such as item catalogues,
  transaction records, etc.
• Application server
• receives requests and constructs a web page
  response
• handles access control, session management, etc.

Client
Application server
Database
2
The Client layer

• Web pages are represented by HTML, the HyperText
  Markup Language.
• The protocol to send and receive web pages from a
  web server is HTTP, the HyperText Transfer
  Protocol.
• Whats useful to know about HTTP in this context?
• It was intended as a request response protocol
  without any state.
• It is entirely text-based and (somewhat)
  human-readable.

3
Application Servers

• Typical functions
• Management of concurrent sessions and
  transactions
• Construction of dynamic and static web pages
• Arrange for storage and retrieval of persistent
  data
• Handling of business logic
• Security

4
For this presentation

• Some assumptions on the environment for the
  purposes of this presentation
• Code is based on the Java Enterprise Edition (EE)
  software development kit
• Use of a web application server that conforms to
  the Java EE specification

5
Java Application Servers

• Java EE servers use the concept of a container
  in which processing of a session is handled.
• Java classes are deployed into a container, and
  then interact with the container to provide
  functionality for the server.
• The container manages the creation and life cycle
  of the objects deployed within, and access to
  these objects.

6
Java Application Servers
Container
HTTP request
Servlet
Filter
Enterprise JavaBean (EJB)
Client / Browser
Java Server Page (JSP)
Tag Library
HTTP response, containing HTML
Application server
DB
7
Server options

• Production-capable server
• Apache Tomcat, Sun JAS, Glassfish (for EE 5),
  JBoss, BEA, IBM WebSphere, Oracle Application
  Server, JOnAS, ...
• Simplified server
• Jetty
• No server
• Mock object generator that provides mocks for the
  HTTP interface or the DB interface.

8
Part 1 Testing the client

• If the purpose of testing is to test behaviour at
  the client, then various approaches are possible.
• Use an actual production-capable application
  server (including possibly even the database
  layer).
• Use an application server (perhaps a with stubs
  for web pages
• Web pages are empty or nearly so, with no dynamic
  content.
• Replace the application server with a stub or
  mock object that works with the HTTP protocol.
  The mock connection is the interface to the
  client.
• Test client objects directly with JUnit.

9
Testing the client
HTTP request
Embedded Application Server
Client / Browser
JUnit Test Case
HTTP response, containing HTML
10
Testing the client
HTTP request
Mock Connection
Client / Browser
JUnit Test Case
HTTP response, containing HTML
11
HTTP primary commands

• GET request a resource
• GET /awilliam/csi5118 HTTP/1.1Host
  www.site.uottawa.ca
• POST submit data for processing
• POST /index.html HTTP/1.1Host
  www.example.com...Content-type
  application/x-www-form-urlencoded...searchwordf
  indmeoptionsearchsubmitgo

File to retrieve
File from which data was posted
Form data
12
HTTP responses

• HTTP returns a numeric 3-digit code, header
  information, plus content.
• Frequent codes
• 200 OK request was satisfied, and message
  contains content.
• HTTP/1.1 200 OK ... Content-length
  43794 Content-type text/html ... lthtmlgt ...
  lt/htmlgt
• 404 Not found the resource requested could not
  be located.

Success
Content information
Web page in HTML
13
Potential test purposesat the Client Interface

• Check that when a user action occurs, the correct
  data is put into an HTTP request
• Link has correct uniform resource locator (URL)
  address.
• Data in POST command is as expected, and
  formatted correctly.
• Check that when an HTTP request is sent to the
  server, the response is as expected.
• HTTP response is correct
• HTML response is correct
• Search for particular items within a web page to
  see if they are included (especially for
  dynamically generated pages)
• Correct page
• Correct page elements (buttons, etc.)
• Data is as expected.

14
Sample Web client that returnsa string read
from a web server

• public class WebClient
• public String getContent( URL url )
• StringBuffer content new StringBuffer()
• try
• HttpURLConnection connection
• (HttpURLConnection)
  url.openConnection( )
• connection.setDoInput( true )
• InputStream is connection.getInputStrea
  m( )
• byte buffer new byte2048
• int count
• while ( -1 ! ( count is.read( buffer
  ) ) )
• content.append( new String( buffer,
  0, count ) )
• catch ( IOException e ) return null

15
Client test strategies

• To test this client, we have to arrange for some
  known data to appear from the URL, and be sure
  that the client reads it correctly.
• Two approaches
• Use an embedded server that we can control.
• Use a stub or mock object for the connection.

16
Test strategy 1 Embedded server
HTTP request
Embedded Application Server
Client / Browser
JUnit Test Case
HTTP response, containing HTML
17
Jetty

• Jetty is a small application server that can be
  embedded within a Java application.
• http//www.mortbay.org/
• For running JUnit, Jetty can be started within
  the same virtual machine.
• Jetty can be provided with various contexts and
  handlers
• Essentially, a context defines a relative URL for
  which the Jetty server will accept requests.
• Handlers tell Jetty how to construct responses.

18
Setup for Embedded Jetty Server

• public class WebClientTest
• private static HttpServer server
• _at_BeforeClass
• public static void setUpBeforeClass( ) throws
  Exception
• server new HttpServer()
• SocketListener listener new
  SocketListener()
• listener.setPort( 8080 )
• server.addListener( listener )
• HttpContext context1 new HttpContext()
• context1.setContextPath( "/testGetContentOK"
  )
• context1.addHandler( new TestGetContentOKHan
  dler() )
• server.addContext( context1 )
• HttpContext context2 new HttpContext()
• context2.setContextPath( "/testGetContentNot
  Found" )
• context2.addHandler( new NotFoundHandler()
  )
• server.addContext( context2 )

Handler for requests
URL for the context will be httplocalhost8080/te
stGetContentOK
19
Jetty Handlers

• public class TestGetContentOKHandler extends
  AbstractHttpHandler
• public void handle( String pathInContext,
  String pathParams,
• HttpRequest theRequest,
  HttpResponse theResponse )
• throws HttpException, IOException
• OutputStream out theResponse.getOutputStre
  am( )
• ByteArrayISO8859Writer writer new
  ByteArrayISO8859Writer( )
• writer.write( "It works" )
• writer.flush( )
• theResponse.setIntField( HttpFields.__Conten
  tLength,
• writer.size( ) )
• writer.writeTo( out )
• out.flush( )
• theRequest.setHandled( true )

20
Sample test Teardown

• _at_Test
• public void testGetContentOK( ) throws
  MalformedURLException
• WebClient client new WebClient( )
• URL url new
• URL("http//localhost8080/testGetConten
  tOK")
• String expected "It works"
• String actual client.getContent( url )
• assertEquals( expected, actual )
• _at_AfterClass
• public static void tearDownAfterClass( ) throws
  Exception
• server.stop()

21
Strategy 2 No server
HTTP request
Stub Connection
Client / Browser
JUnit Test Case
HTTP response, containing HTML
22
Strategy 2 Implementation
HTTP request
Client / Browser
Stub URL Stream Handler
JUnit Test Case
URL
Stub URL Connection
HTTP response, containing HTML
Stub Stream Handler Factory
23
Stub for the URL connection

• public class StubHttpURLConnection extends
  HttpURLConnection
• private boolean isInput true
• protected StubHttpURLConnection( URL url )
• super( url )
• public InputStream getInputStream( ) throws
  IOException
• ByteArrayInputStream bais
• new ByteArrayInputStream( new String(
  "It works" )
• .getBytes( ) )
• return bais

24
Sample test Setup

• _at_BeforeClass
• public static void setUpBeforeClass( ) throws
  Exception
• URL.setURLStreamHandlerFactory(
• new StubStreamHandlerFactory() )
• _at_Test
• public void testGetContentOK( ) throws
  MalformedURLException
• WebClient client new WebClient( )
• URL url new
• URL("http//localhost8080/testGetConten
  tOK")
• String expected "It works"
• String actual client.getContent( url )
• assertEquals( expected, actual )

25
Part 2 Testing Application Server Classes

• In-container approach
• This is the actual environment in which the class
  would be run.
• Requires deploying classes to an application
  server (complex, time-consuming setup)
• Access to classes for test purposes is restricted
  by the container.
• Out-of-container approach
• Requires stubs or mock objects for interactions
  with the container.
• Not the actual running environment.
• Once the container environment is simulated,
  tests can be run quickly.

26
Java Application Servers (reprise)
Container
HTTP request
Servlet
Filter
Enterprise JavaBean (EJB)
Client / Browser
Java Server Page (JSP)
Tag Library
HTTP response, containing HTML
Application server
DB
27
Servlets

• Servlets are a mechanism for an application
  server to construct dynamic web page content.
• Example
• User enters a value into a text field on a web
  page and clicks a submit button.
• An HTTP command is constructed by the browser and
  sent to the server.
• The application server will parse the HTTP
  command, determine which session the command
  belongs to, and construct an HttpServletRequest
  object containing the request information.
• The servlets function is to create an
  HttpServletResponse object that contains
  information needed to create the HTTP reply that
  contains the HTML to be displayed in the users
  browser.

28
The Servlet Environment
Container
HTTP request
Servlet
HttpServletRequest
Browser
HttpServletResponse
HTTP response, containing HTML
Application server
DB
29
A (small) Sample Servlet

• Purpose As part of handling a request, this
  method checks to see if the session associated
  with the request has stored a attribute
  indicating that the session was authenticated.
• public class SampleServlet extends HttpServlet
• implements Servlet
• public boolean isAuthenticated(
  HttpServletRequest request )
• HttpSession session request.getSession(
  false )
• if ( session null )
• return false
• String authenticationAttribute ( String )
  session
• .getAttribute( "authenticated" )
• return Boolean.parseBoolean(
  authenticationAttribute )

30
How to test the Servlet?

• Because this method asks for the containers
  session parameters, direct JUnit test cases are
  not possible in this environment.
• The HttpServletRequest object is created by the
  container and is only available there. The
  request also must return a valid HttpSession to
  check the attribute.
• To test this code without the container, mock
  objects for the HttpServletRequest and
  HttpSession objects are needed.

31
Servlet Testing approaches

• Three ways of running test cases for this servlet
  will be shown here.
• Out of container, using mock objects created by
  EasyMock.
• In container, using the Apache Tomcat server and
  Cactus
• In container, using the embeddable Jetty server
  and Cactus.

32
Out-of-container Strategy
Servlet
HttpServletRequest
JUnit Test Case
HttpServletResponse
Mock DB
33
The sample servlet, again

• public class SampleServlet extends HttpServlet
• implements Servlet
• public boolean isAuthenticated(
  HttpServletRequest request )
• HttpSession session request.getSession(
  false )
• if ( session null )
• return false
• String authenticationAttribute ( String )
  session
• .getAttribute( "authenticated" )
• return Boolean.parseBoolean(
  authenticationAttribute )

34
Mock objects test case setup and teardown

• public class MockObjectTest
• private SampleServlet servlet
• private HttpServletRequest theRequest
• private HttpSession theSession
• _at_Before
• public void setUp( ) throws Exception
• servlet new SampleServlet( )
• theRequest
• EasyMock.createMock(HttpServletReques
  t.class )
• theSession EasyMock.createMock(
  HttpSession.class )
• _at_After
• public void tearDown( ) throws Exception
• EasyMock.verify( theRequest )

35
Mock object test case test method

• _at_Test
• public void testIsAuthenticatedTrue( )
• EasyMock.expect( theRequest.getSession( false
  ) )
• .andReturn( theSession )
• EasyMock.expect( theSession.getAttribute("authe
  nticated") )
• .andReturn("true")
• EasyMock.replay( theRequest )
• EasyMock.replay( theSession )
• boolean expected true
• boolean actual servlet.isAuthenticated(
  theRequest )
• Assert.assertEquals( expected, actual )

36
Running the test case

• All the previous test case needs to run is to
  ensure the EasyMock class library is available.
• Tests are run without using an application
  server, and are run directly by JUnit.
• Advantages
• Test is easy to set up and will run quickly
• Disadvantages
• The test is not running in the actual servlet
  container, and we dont know if the container
  will provide the correct request or not.

37
In-container Strategy (1)
Container
Servlet
JUnit Test Case
Request
Response
Application server
Test DB
38
In-container Strategy (2)
Container
Servlet
JUnit Test Case
Request
JUnit Test Proxy
Response
Application server
Test DB
39
In-container testing with Cactus

• Cactus part of the Apache Jakarta project
• jakarta.apache.org/cactus
• Cactus is a framework to install a test component
  inside an application server, and to communicate
  with that test component.
• Extension of the JUnit framework
• Result You can run JUnit tests from outside the
  container, but have the tests executed inside the
  container.

40
How Cactus Works

• Cactus uses a proxy mechanism to run test cases
  at the client, and redirect the requests to a
  copy of the test case inside the server
  container.

41
In-container testing with Cactus

• What is required
• Include the JUnit and Cactus libraries as part of
  the deployment to the application server
  container.
• Implement a client redirector that takes a JUnit
  test case run outside the container, and
  duplicate it within the container.
• Implement a server redirector that lets Cactus
  intercept incoming requests during test case
  execution and provide them as objects to the test
  case.
• Provide a mechanism to get the test case results
  back from the container to the test runner.

42
Cactus JUnit test cases

• Test class must inherit from one of the following
  classes
• org.apache.cactus.ServletTestCase, to test a
  servlet
• org.apache.cactus.FilterTestCase, to test a
  filter
• org.apache.cactus.JspTestCase, to test a Java
  server page

43
Cactus JUnit test cases

• For a servlet test case, the JUnit test case will
  have access to the following objects
• request
• response
• config
• session
• The servlet context can also be accessed
  indirectly.

44
Structure of a Cactus test

• begin(), end() executed on the client side
  before and after each test case
• setUp(), tearDown() executed on the server side
  before and after each test case
• testXXX() a test method, to be executed within
  the server container
• beginXXX(WebRequest request) a method to be
  executed on the client immediately before
  testXXX().
• The parameter is used to set up the request to be
  passed to the server.
• endXXX(WebResponse theResponse ) a method to be
  executed at the client immediately after
  testXXX(). This is used to verify the HTTP
  response from the user.

45
Cactus Test Case Execution

• Here is the order of execution of the various
  methods

46
First In-Container Test Project

• Goal Execute a servlet test case on an Apache
  Tomcat application server.
• Create an Eclipse dynamic web project
• The target server is defined at project creation
  time.
• Eclipse will create the web.xml deployment
  descriptor for the project.
• Using the servlet wizard to create the servlet
  will add the servlet to the deployment descriptor

47
Additions to Deployment Descriptor

• Cactus redirectors must be added to the web.xml
  file, so that they can be part of the project
  deployment.
• ltservletgt
• ltservlet-namegtServletRedirectorlt/servlet-namegt
• ltservlet-classgt
• org.apache.cactus.server.ServletTestRedirect
  or
• lt/servlet-classgt
• lt/servletgt
• ltservlet-mappinggt
• ltservlet-namegtServletRedirectorlt/servlet-namegt
• lturl-patterngt/ServletRedirectorlt/url-patterngt
• lt/servlet-mappinggt

48
Test class, part 1

• public class TomcatCactusTest extends
  ServletTestCase
• private SampleServlet servlet
• _at_Before
• public void setUp( ) throws Exception
• servlet new SampleServlet( )
• _at_Test
• public void testIsAuthenticatedTrue( )
• session.setAttribute( "authenticated", "true"
  )
• boolean actual servlet.isAuthenticated(
  request )
• boolean expected true
• assertEquals( expected, actual )

49
Test class, part 2

• _at_Test
• public void testIsAuthenticatedFalse( )
• boolean actual servlet.isAuthenticated(
  request )
• boolean expected false
• assertEquals( expected, actual )
• public void beginIsAuthenticatedNoSession(
• WebRequest theRequest )
• theRequest.setAutomaticSession( false )
• _at_Test
• public void testIsAuthenticatedNoSession( )
• boolean actual servlet.isAuthenticated(
  request )
• boolean expected false

50
Eclipse view of projectwith Cactus deployment
descriptor
51
Libraries needed

• For the client
• junit.jar from JUnit
• servlet-api.jar from target Application Server
• cactus.jar
• aspectjrt.jar
• commons-httpclient.jar
• commons-logging.jar
• For the server
• junit.jar from JUnit
• Application server libraries
• cactus.jar
• aspectjrt.jar
• commons-logging.jar

52
Libraries added to Eclipse projectfor Cactus
53
Test run on Tomcat Server
54
Cactus Jetty

• Cactus is used to run test cases inside the
  container provided by Jetty.
• Jetty can run the previous servlet test case that
  was run on the Tomcat server.
• Since Jetty is embedded, the server will be
  started by the test case.
• Cactus provides a wrapper to set up tests within
  Jetty by doing a combined server start-up and
  test case deployment.

55
Cactus test wrapped for Jetty

• // The _at_RunWith line is needed for JUnit 4 to run
  test suite
• _at_RunWith( AllTests.class )
• public class JettyCactusTest
• public static Test suite( )
• // The next line adapts a JUnit 4 test for
  a JUnit 3 runner
• Test suite3 new JUnit4TestAdapter(
  TomcatCactusTest.class )
• System.setProperty( "cactus.contextURL",
• "http//localhost8080
  /test" )
• TestSuite suite new TestSuite( "All
  tests with Jetty" )
• suite.addTest( suite3 )
• return new JettyTestSetup( suite )

56
Test run on embedded Jetty server
57
Part 3 End-to-end Testing

• Application server functions
• Receive HTTP request
• Look up and connect to database.
• Send query to database and obtain ResultSet
• Construct HTTP response
• Normally, a web page that includes data from the
  ResultSet.

Client
Application server
Database
58
The Servlet Environment
Container
HTTP request
Servlet
HttpServletRequest
Browser
HttpServletResponse
HTTP response, containing HTML
Application server
DB
59
Test setup
Container
dbUnit
JUnit
Cactus
HTTP request
Servlet
HttpServletRequest
JUnit
HttpServletResponse
Application server Tomcat 6.0
httpUnit
HTTP response, containing HTML
MySQL 5.0 DB
60
Resource Location on Servers

• To find resources (such as a database) on a
  server, a naming service can be used to associate
  a resource name with a specific location.
• A directory service an extension of a naming
  service can be used to locate resources based
  on attributes.
• To use the directory or naming service, an access
  protocol must be used.
• General example Lightweight Directory Access
  Protocol (LDAP)
• Java-specific example Java Naming Directory
  Interface (JNDI)

61
Data sources

• A generic interface DataSource can be used for
  obtaining a connection to a resource
• One implementation a JDBC connection
• JNDI returns a DataSource implementation object
  as a result of locating a requested resource.

62
Specifying an Application Server Resource

• Web application that specifies use of a resource
  on a server, contained in META-INF/context.xml
• lt?xml version"1.0" encoding"UTF-8"?gt
• ltContext path"/CustomerApp" docBase"CustomerApp"

• debug"5" reloadable"true"
  crossContext"true"gt
• ltResource name"jdbc/csi5118"
• auth"Container"
• type"javax.sql.DataSource"
• maxActive"100 "
• maxIdle"30"
• maxWait"10000"
• username"csi5118"
• password"(insert password)"
• driverClassName"com.mysql.jdbc.Driver
  "
• url"jdbcmysql//localhost3306/csi51
  18"/gt
• lt/Contextgt

63
Code in Servlet to access JNDI resource

• public class MyJndiDataSource implements
  DataSource
• // The jndiName string is server-dependent.
  This works for
• // Apache Tomcat 6.0
• private String jndiName "javacomp/env/jdbc/c
  si5118"
• private DataSource dataSource
• public MyJndiDataSource( ) throws
  NamingException
• InitialContext context new
  InitialContext()
• dataSource (DataSource) context.lookup(
  jndiName )
• public Connection getConnection( ) throws
  SQLException
• return dataSource.getConnection( )

64
Testing Database Code in ServletUse Cactus for
In-Container Testing
Container
Cactus
dbUnit
JUnit
JUnit Test Case
Servlet
JUnit Test Proxy
Application server
Test DB
65
In-Container Servlet-Database Testing

• Essentially, there is no difference between a
  client-database test case, and a servlet-database
  test case, except
• JNDI is used to look up the data base at the
  server.
• The test case must inherit from ServletTestCase,
  and be run by Cactus.
• dbUnit can still be used for setting up the
  database from the server.

66
Constructing a web page response

• The simplest approach is to have the servlet
  write HTML code to the responses output stream.
• More advanced approach use Java Server Pages
  (JSP), or the Java Server Faces (JSF) framework

67
Example CustomerServlet

• protected void doGet( HttpServletRequest request,
• HttpServletResponse
  response )
• throws ServletException, IOException
• // Get data from database
• ListltCustomergt customers getCustomerData(
  request )
• // Create HTML response
• response.setContentType( "text/html" )
• PrintWriter pw response.getWriter( )
• pw.println( "lthtmlgtltheadgtlttitlegtCustomer
  Listlt/titlegtlt/headgtltbodygt" )
• pw.println( "lth2gtCustomer listlt/h2gt" )
• pw.println( "lttable border\"1\"gt" )
• pw.println( "lttrgtltthgtIDlt/thgtltGiven
  namelt/thgtltFamilynamelt/thgtlt/trgt" )
• for ( Customer aCustomer customers )
• pw.println( "lttrgt" )
• pw.println( "lttdgt" aCustomer.getId( )
  "lt/tdgt" )
• pw.println( "lttdgt" aCustomer.getGivenName(
  ) "lt/tdgt" )
• pw.println( "lttdgt" aCustomer.getFamilyName
  ( ) "lt/tdgt" )

68
Result from running Servlet
69
HTML returned by Servlet
70
Checking a Web Page

• The next step is to verify a response back at the
  client, by ensuring that a web page with the
  expected information is returned.
• The HttpUnit tool can be integrated with Cactus
  to check results returned by an application
  server.
• Open source tool at
• http//httpunit.sourceforge.net
• Be careful when using Cactus and HttpUnit
  together, as they both have WebResponse classes
• Cactus org.apache.cactus.WebResponse
• HttpUnit com.meterware.httpunit.WebResponse

71
Items that can be located

• Links in web page
• A link has a click() method that can be used to
  follow the link
• Tables
• Determine number of rows and columns
• Obtain table contents by position
• Forms
• Locate form items, and set/check their values
• Click buttons
• Others
• Images
• Frames
• Cookies
• HTML elements

72
Web response checking with Cactus

• Checking the web page response is done in the
  method endXXX, where testXXX is the test method
  that is run.
• endXXX is run at the client, so it has the HTTP
  response sent by the server.

73
Test for doGet for Customer Servlet

• Aside from exceptions that could be thrown, there
  is no output checking in the test case.
• The response is verified by endDoGet()
• _at_Test
• public void testDoGet( ) throws Exception
• CustomerServlet servlet
• servlet new CustomerServlet( )
• servlet.doGet( request, response )

74
Checking the Response with HttpUnit

• public void endDoGet( WebResponse theResponse )
• throws SAXException
• assertTrue( theResponse.isHTML( ) )
• int numTablesExpected 1
• int numTablesActual theResponse.getTables(
  ).length
• assertEquals( numTablesExpected,
  numTablesActual )
• WebTable theTable theResponse.getTables(
  )0
• // Rows can be similarly checked
• int colsExpected 3
• int colsActual theTable.getColumnCount( )
• assertEquals( colsExpected, colsActual )
• // Example of checking a table cell
• String expected "ID"
• String actual theTable.getCellAsText( 0, 0
  )

75
Running the End-to-End Test
76
Summary

• Tools needed to run the end-to-end test
• Eclipse Integrated Development Environment
• Apache Tomcat Java application server
• MySQL Database
• JUnit For running test cases
• Cactus In-container testing
• dbUnit For database test setup
• httpUnit For checking the web page
