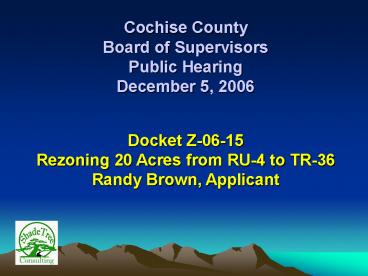

Cochise County

1
Cochise County Board of Supervisors Public
HearingDecember 5, 2006 Docket
Z-06-15 Rezoning 20 Acres from RU-4 to TR-36
Randy Brown, Applicant
2
Outline

• Provide a project overview
• Review water conservation off-set measures
• Babocomari Update
• Review rezoning conditions recommended by County
  staff
• Conclusion / Summary

3
Project Overview

• 20 acres with 20 homes
• Site-built homes only
• Minimum of 1,700 sf livable
• Conforms to Babocomari Plan
• policies growth designations
• Water Conservation Measures
• Detention basins
• Landscaping w/ drought-tolerant/low-water use
  plants
• Turf limitations
• Hot-water recirculating
• systems low-flow fixtures
• Building envelope
• _at_ 15k sf (41.7)
• Evaporative cooling only not allowed

4
Project Water Budget

• Achieves Babo Plan goal for water
• conservation measures off-set
• Consistent with Water
• Conservation measures proposed
• for Sierra Vista Sub-watershed
• Overlay District
• Water Conservation or
• Recharge Measures 3.49 af/yr
• Would result in 1.70 acre-feet less
• aquifer loss than if land was
• developed at RU-4

5
Babocomari Rezonings Overview

• Approved GB Rezoning (262 Acres)
• Approved SR-43/TR-36/RU-2 Rezoning (1,693
  Acres, 1,383 Homes)
• Proposed TR-36 Rezoning (20 Acres, 20 Homes)
• Babocomari Lands Not Rezoned

6
Babocomari Rezonings Water Budget

• Water Conservation or
• Recharge Measures
• 217 af/yr
• Water Budget Offset
• 161 af/yr (compared to
• development _at_ RU-4)

7
County Staff Conditions

• Landowners must secure an approved subdivision
  in substantial conformance
• with rezoning application
• Landowners must conduct Traffic Impact Analysis
  (TIA)
• Landowners must have development agreement in
  place specifying funding,
• timing and responsibility for implementing
  TIA-dictated improvements
• Landowners must provide a comprehensive
  hydrology report to address
• drainage issues on subject and adjacent
  lands
• Landowners shall adequately demonstrate that
  projected water consumption
• will not exceed threshold
• Landowners shall ensure that approved language
  is used to alert homeowners
• of military activities in the area

8
Summary

• Recommend approval
• County conditions can be met
• Water Budget Compliance achieved without
  dependency on rate
• structure
• Requires compliance with Babocomari Plan before
  subdivision plat
• approval
• Rezoning allows opportunity for better
• Roads
• Water service and water conservation
• Utilities
• Tax base and quality of life

9
Questions?
10
BACK-UP
Water Conservation Offset Measures Supporting
Data Enabling Development at Increased
Densities Under the Babocomari Area Plan and
Sierra Vista Subwatershed Plan
11
BACK-UP
Water Conservation/Off-set Measures

• Septic System Incidental Recharge
• (Data conclusions controversial due to
  ADWR/ADEQ conflicts)
• Mesquite Tree Removal
• Distribution of Water-Wise Info
• (Lack of study data makes conclusions
  fallible)
• Building Envelopes limited to 15,000 sf/lot
• Turf limitations/Low-water use plants
• (Preliminary data indicates exterior water
  savings of 42 however, insufficient data exists
  to offer any
• supportable offset data)
• Low-flow Water Fixtures (Applicable to current
  zoning proposed rezoning)
• Hot Water Recirculating Systems (Applicable to
  proposed rezoning)
• Air Conditioning in lieu of Evaporative Coolers
  (Applicable to proposed rezoning)
• Storm water Detention Basins (Applicable to
  proposed rezoning)

12
BACK-UP
Water Conservation/Off-set Measures Low-Flow
Water Fixtures

• Data from Western Resources
• Advocate study Smart Water A
• Comparative Study of Urban Water
• Use Across the Southwest ,
• December 2003
• Study shows 40.5 GPDPH water
• savings by using low-flow fixtures
• (16.2 GPCD x 2.5 persons/home)
• conservative number used is 50,
• or 20 GPDPH
• If project built _at_ current zoning
• 5 homes x 20 100 GPDPH
• With approved rezoning
• 20 homes x 20 400 GPDPH
• Net Offset

13
BACK-UP
Water Conservation/Off-set Measures Hot Water
Recirculating Systems

• Data from Oak Ridge National
• Laboratory Study Water Energy
• Savings using Demand Hot Water
• Recirculating Systems in Residential
• Homes, October 2002
• Study shows 25 GPDPH water
• savings by using hot water recirculating
• systems
• With approved rezoning
• 20 homes x 25 500 GPDPH
• Net Offset 500 GPDPH

14
BACK-UP
Water Conservation/Off-set Measures AC in lieu of
Evaporative Coolers

• Data from University of Arizona
• Cooperative Extension Study
• Evaporative Cooler Water Use, May 1994
• Study shows evaporative cooler water
• consumption range between 96 GPDPH to
• 16 GPDPH
• Babocomari property owners shall use Air
• Conditioning Systems in lieu of
• Evaporative Coolers for cooling home
• Conservative number of 16 GPDPH water
• off-set by using Air Conditioning Systems
• With approved rezoning
• 20 homes x 16 320 GPDPH
• Net Offset 320 GPDPH

15
BACK-UP
Water Conservation/Off-set Measures Storm Water
Detention Basins

• Data from Southwest Hydrology article
  Predicting Groundwater Recharge Rates in
  Urbanized Watersheds, July/August 2004
• Article shows that pre-development
• recharge rates ranged from 0.005 - 0.015 of
• annual precipitation for unimproved wash
• Conservative number of .025 recharge rate
• used to approximate increased recharge
• capability of improved detention basin
• over unimproved wash
• Annual precipitation 16.1 inches/year, or
• 1.342 feet x 44 acres 59.05 acre-feet x
• 325,851 gal/af 19,241,501 gal/year 365
• days 52,716 x .025 recharge
• Net Offset 599 GPD

16
BACK-UP
Water Conservation/Off-set Measures Northern
Sunrise Water Rates

• Data from various studies in Colorado,
• New Mexico and California have shown a
• positive correlation between increasing
• block rate price structures and decreased
• water consumption
• Whetstone Water Improvement District
• (WWID) off-set based on higher rates as
• basis for decreased consumption of 70 GPDPH
• Northern Sunrise Water Company rates
• will be 9 - 22 higher than WWID
• If project built _at_ current zoning
• 11 homes x 70 770 GPD
• With approved rezoning
• 44 homes x 70 3080 GPD

17
BACK-UP
Water Company Update
NSWC Application for CCN APPROVED June 29, 2006,
Document Control No. 0000056636
Rates Approved in NSWC Application for
CCN APPROVED June 29, 2006, Document Control No.
0000056636
18
BACK-UP
Water Company Rate Comparisons
82 GPCD (Note 2)
174 GPCD (Note 3)
122 GPCD (Note 3)

• Notes
• All consumption rates per 1,000 gallons used per
  month.
• Per WWID letter dated 9/29/05.
• Per ADWR Upper San Pedro AMA Review Report,
  Appendix K-1, Mar 2005
• NSWC rates increase 42 for usage over 10,001
  gallons per month

19
BACK-UP
Representative Monthly Water Bill Comparisons

• Italicized figures in parenthesis (6.25)
  indicate cost per 1,000 gallons
• Strong correlation between higher rates and
  lower consumption
• Northern Sunrise rates 9 - 22 higher than
  Whetstone Water Improvement District
• Data supports continued use of off-sets for
  Babocomari Area Plan developments

20
BACK-UP
Project Overview Combined Water Budget
