Protooncogenes Oncogene pp' 62733

1

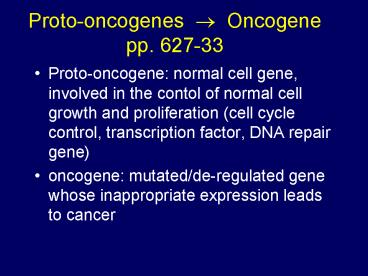

Proto-oncogenes ? Oncogene pp. 627-33

• Proto-oncogene normal cell gene, involved in the
  contol of normal cell growth and proliferation
  (cell cycle control, transcription factor, DNA
  repair gene)
• oncogene mutated/de-regulated gene whose
  inappropriate expression leads to cancer

2
shorter 22 philadelphia chromosome (Ph)
3
9-22 reciprocal translocation occurs at a
specific place, leading to the formation of a
hybrid gene (bcr-abl)
Location of bcr gene
Location of c-abl gene
BCR-ABL Fusion Gene seen in gt90 of cases of
Chronic Myelogenous Leukemia
4
Proto-oncogene gene product (e.g. abl gene
product is an enzyme) ? enzyme active site
Normal gene product can be regulated e.g enzyme
inhibited
Hybrid gene fusioncant be regulated e.g.
bcr-abl gene
5
Proto-oncogene gene product (e.g. abl gene
product is an enzyme) ? enzyme active site
Normal gene product can be regulated e.g enzyme
inhibited
Hybrid gene fusioncant be regulated e.g.
bcr-abl gene
Drug designed to inhibit enzyme?
Gleevec...
6
Deletions of normal cellular genes leading to
predispositions for cancer...
13q14 bilateral retinoblastoma

• individuals with deletion in this region are at
  increased risk for cancer of the retinas
• the loss of a gene in this region leaves only
  one functional copyits loss leads to cancer

7
Initial deletion (first hit) increases likelihood
for cancer with loss of other allele...
Rb gene involved in cell cycle regulation (pp.
142-43 637-9)
Tumor suppressor gene
8
Rb protein is important in cell cycle control
Cyclic inactivation of Rb protein will lead to
progression to S phase increase cell
proliferation.
Loss of Rb protein has same effect as
inactivationfrees EF2 and stimulates
proliferation...
9
Reciprocal Translocations and Cancer Summary

• Breakpoints occur within genes (gene region
  copied into mRNA transcription unit)
• Rearrangement creates a hybrid gene
  (transcription unit)
• loss or gain of regulatory elements from one
  gene may now lead to inappropriate expression of
  the gene product (at RNA or protein level)
• cells carrying the mutation may now be at a
  proliferative advantage in a particular tissue
• eg. Chronic Myelogenous Leukemia Burkitts
  Lymphoma
• pp. 627-33 in Hartwell

Acentric and dicentric chromosomes
10
Deficiencies and Cancer Summary

• tumor suppressor gene mutations... Loss of a
  gene critical for appropriate cell growth (e.g.
  cell cycle control, DNA repair) can cause
  predispositions to cancer in heterozygotes
• a second mutation arising in the non-deficiency
  chromosome leads to loss of suppressor gene
  product
• e.g. retinoblastoma and Rb Li Fraumeni syndrome
  and p53 gene BRCA1 and breast/ovarian cancer

11
(No Transcript)
12

Paracentric Inversion (centromere not involved)
13
Pericentric Inversion (centromere is involved)
(very unstable prone to loss)
14
Crossovers in inversion heterozygotes generate
meiotic products with gene duplications and
deficiencies...
Crossovers within a paracentric inversion will
produce acentric and dicentric products that
contain duplications and deficiencies...
15
Crossovers within a pericentric inversion will
produce meiotic products that contain gene
duplications and deficiencies, but also a
centromere...
Since crossover gametes are likely to be
inviable, inversions are used by geneticists to
suppress recombination between chromosomes in
genetic stocksthese balancer chromosomes
usually have multiple inversions
16
Structural Chromosomal Polymorphisms
Population polymorphisms that do not lead to
clinical problems are often associated with
constitutive heterochromatin
17
But position effects may influence expression
18
Variegated Position Effects

• Variegated position effects can occur when a gene
  in a euchromatic region of the chromosome is
  transferred into or near a heterochromatic
  blocksee pp. 480-81

19
(very unstable prone to loss)
20
(very unstable prone to loss)
21
Fragile X Syndrome

• Represent approximately 8 of males with mental
  retardation 1/1250 male births
• Other features include large testes, prominent
  jaw and head, large ears
• Detectable as a visible chromosomal abnormality
  on cell culture...

22
When grown in a special medium, individuals with
a fragile X chromosome will show a narrowing or
gap called a fragile site...
23
(No Transcript)
24
Typical Transmission Pattern for Fragile X
syndrome
??
25
Trinucleotide Repeats within FMR-1 gene at
Fragile Site
Amplification of trinucleotide repeat occurs in
the germline of NTM daughters Abnormalities in
methylation pattern in area of repeats also
correlated with disease
26

• approximately 15 of all pregnancies result in
  spontaneous abortions about 1/2 of these show
  chromosomal abnormalities
• In about 1/200 live births, a chromosomal
  abnormality can be detected, the majority being
  Down Syndrome and balanced translocations

27
Prenatal Diagnosis

• Amniocentesis usually performed at 16 weeks of
  pregnancy, when fibroblasts can be safely
  collected from amniotic fluid. Requires
  mitogenic stimulation of cells prior to analysis
• Chorionic Villus Sampling (CVS) can be performed
  at the 9th week, from extra-embryonic cells that
  are actively dividing

28
(No Transcript)
