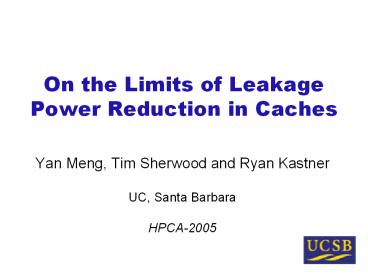

On the Limits of Leakage Power Reduction in Caches

1
On the Limits of Leakage Power Reduction in Caches

• Yan Meng, Tim Sherwood and Ryan Kastner
• UC, Santa Barbara
• HPCA-2005

2
Overview

• Caches are good targets for tackling the leakage
  problem
• Much work has been done in this field
• Gated-Vdd
• Powell 01, Agarwal 02, Roy 02, Hu 02,
  Kaxiras 01, Zhou 03, Velusamy 02
• Multiple supply voltages
• Flaunter 02, Kim 02,04, Mudge 04
• Others
• Hu 03 , Li 04, Heo 02, Hanson 01, Li
  03, Bai 05, Skadron 04, Zhang 02, Azizi
  et al. 03

3
Research Question and Finding

• What is the best leakage power saving we could
  hope to achieve with existing techniques?
• Far more potential left for further reducing
  leakage power in caches

4
Outline

• Motivation
• Definitions
• Optimal approach
• The generalized model
• Experimental results
• Conclusions

5
Motivation

• Why to study leakage problem?
• Leakage power dominant source for power
  consumption as technology scales down below 100nm

Fig Projected leakage power consumption as a
fraction of the total power consumption according
to International Technology Roadmap for
Semiconductor
6
Motivation

• Why to tackle the leakage problem through caches?
• Caches huge chip area (50 2005 ITRS)
• Major source for leakage power consumption

Alpha 21364 microprocessor die photo http//www.o
racle.com/technology/products/rdb/pdf/2002_tech_fo
rums/rdbtf_2002_opt_on_alpha_mdr.pdf
7
Motivation

• How to tackle the problem with existing
  techniques?
• Keep frequently accessed cache lines active to
  ensure high performance
• Turn off cache lines that are not used for a long
  time
• Use low supply voltage to save power for the rest
• Whats the best that the existing circuit and
  architecture techniques could achieve? How much
  room is left for further research?

8
Definitions Cache Interval

• Time between two successive accesses to the same
  cache line

9
Definitions --- Operating Modes

• Active mode
• Power on the whole cache line
• No power saving

• Sleep mode Roy01, Hu01
• Sleep/turn off transistors
• Lose data
• Refetch data with high overhead

• Drowsy mode Flautner02,Mudge04
• Use low supply voltage to save power when it is
  not needed
• Preserve data for fast reaccess
• Wake up to the high voltage and return data

10
Choosing Operating Modes

• Active mode
• Sleep mode
• Drowsy mode

Ii
11
Optimal Approach

• Differences
• Studying optimality
• Combining all three modes to achieve the maximal
  leakage power saving
• Optimal policy
• Oracle knowledge of future address trace
• Applying the appropriate operating mode on each
  cache interval
• Obtaining optimal leakage power saving
• Formal proof of the optimality

12
Inflection Points

• Which mode to apply on each interval?
• Active-drowsy inflection point a
• The least amount of time drowsy mode needs to
  save energy
• Sleep-drowsy inflection point b
• The time where sleep and drowsy modes consume the
  same amount of energy

13
Selecting Operating Modes with Inflection Points
Active Interval
Active Mode
0ltIa
Drowsy Interval
Drowsy Mode
I?
I
altIb
Igtb
Sleep Interval
Sleep Mode
Optimality
14
Calculating Inflection Points

• Active-drowsy inflection point a

• Sleep-drowsy inflection point b

CD
15
Saving Leakage Power without Performance
Degradation

• Deriving the interval lengths with perfect
  knowledge of the future address trace
• Fetching any needed data just before it is needed

• Avoiding any performance impact
• Taking into account the power cost of
  just-in-time refetch CD

16
Saving Leakage Power without Performance
Degradation
17
The Generalized Model

• Parameterized model
• Inputs
• Wake-up latencies
• Interval distribution
• Leakage power of each state
• Transition energy between states
• Outputs
• Optimal savings of OPT-Drowsy, OPT-Sleep, and
  OPT-Hybrid
• Can be extended to accommodate future
  technologies and power saving modes
• Publicly available
• http//express.ece.ucsb.edu/software/leakage.html

P(Active)
P(Sleep)
18
Methodology

• Core Compaq Alpha 21264 Kessler 99
• Memory
• 2-way L1 instruction and data caches, 64KB
• Unified direct mapped L2 cache, 2MB
• LRU replacement policy
• Tools
• SimAlpha simulator
• HotLeakage
• Leakage power and dynamic cost
• Parameters taken from HotLeakage
• Averaged results over all benchmark applications

19
Calculating Inflection Points

• The sleep-drowsy point decreases from 180nm to
  70nm
• Because the leakage power consumption increases
  while the dynamic power consumption caused by an
  induced miss decreases
• Our approach can be parameterized and applied to
  many other memory technologies
• 70nm, the most advanced technology, is used in
  the rest of our study

20
Exploring the Upper-bound
OPT-Drowsy No performance penalty for waking up
data
Sleep(10K) Turning off cache lines after 10K
cycles Hu01
OPT-Sleep(10K) Turning off cache lines with
lengths greater than 10K cycles
OPT-Hybrid Optimally combining three modes w/o
performance penalty
L1 data cache
21
Research Finding

• Larger leakage saving can be achieved for data
  cache
• Drowsy and sleep modes each achieve fairly high
  savings
• Savings are complementary potential in combining
  drowsy and sleep technologies

22
Conclusions

• Why leakage?
• Leakage dominant source of power consumption as
  technology scales down below 100nm
• Caches primary targets to tackle the problem
• Optimal approach and software
• Calculating the maximal leakage savings
• Quantifying how much room left for improvement
• Used to guide future power management policy
  research
• Great potential in combining techniques
• Optimally combining Active, Drowsy, and Sleep
• The optimal approach reduces power dissipation
• Instruction cache by a factor of 5.3
• Data cache by a factor of 2
