On-Chip ECC for Low-Power SRAM Design

1

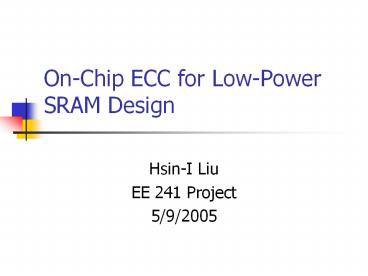

On-Chip ECC for Low-Power SRAM Design

• Hsin-I Liu
• EE 241 Project
• 5/9/2005

2
Outline

• Introduction to low-power SRAM
• Introduction on error correction code
• Analysis of data retention voltage in SRAM
• Simulations and results

3
Low-Power SRAM

• Concept Reduce the standby Vdd to data retention
  voltage (DRV)

4
Modeling DRV
DRV is modeled as i.i.d. gamma random variable
5
Error Correction Code

• Adding parity check into information
• Non-trivial binary code
• Easy to encode
• Parameters fixed
• Hamming code, Golay code
• Linear block code
• Parameters flexible
• Reed-Solomon code
• Least parity overhead

6
Applying ECC to SRAM

• Latency
• In proportional to block size
• In this project Hamming (15,11), Golay(23,12),
  and RS(15,11)
• Implementation characteristics are well-known

7
Model Setup
Memory size M N
ECC block size n info length i
Row redundancy r rows
Standby cycles T
Metrics
8
Model Analysis

• For certain standby voltage, retention ability
  can be modeled as Bernoulli r.v.
• For certain pe of a row, pe of a block can be
  derived
• Inside a block, pe of each cell can be found by
  solving binomial distribution
• Row redundancy can also be modeled as binomial
  r.v.

9
Results
10
Results (cont.)
11
Results (cont.)
12
Conclusion

• Hamming code introduces the least overhead
• For short waiting time, Hamming code can reduce
  Eb from 50 to 2x
• As waiting time goes to infinity, Reed-Solomon
  saves the power by 3x
