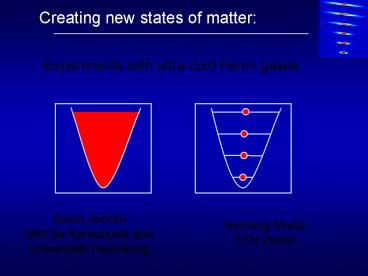

Creating new states of matter:

1
Creating new states of matter
Experiments with ultra-cold Fermi gases
Selim Jochim MPI für Kernphysik and Universität
Heidelberg
Henning Moritz ETH Zürich
2
Introduction

• Major breakthroughs in this field have made this
  field an exciting one in the past decade
• Fermi Superfluidity, Crossover to a gas of Bosons
  (weakly bound molecules)
• With tunable interactions Model system for
  High-TC superconductors, Neutron stars,
  Quark-Gluon Plasma and more .

3
What is an ultracold quantum gas?

• Gas shows quantum effects when the wave packets
  start to overlap

4
Fermions and Bosons
At zero temperature .
Bosons
Fermions
Fermi energy EFkBTF
Bose-Einstein condensation
Degenerate Fermi gas
5
What makes ultracold gases special?

• Compare with superfluids, like He, or
  superconductors
• Density is way lower -gt dilute gas makes
  description very simple
• Lab-in-a-trap type of systems with many
  easy-to-use knobs, such as
• temperature
• confinement (single well, periodic ),
• Interactions (even do controlled chemistry!)

6
First BEC experiments
JILA Boulder 1995
Rb
Na
MIT 1995
7
Fermi degenerate gases
Two isotopes of Lithium in the same trap in
thermal equilibrium
8
Superfluid Fermi Gases

• Molecular condensates

Look like a normal BEC Are normal BECs A little
bit of cheating?
9
Observe superfluidity
A rotating superfluid cloud needs to exhibit
vortices
10
What will the course be about?
Today

• How do we make/manipulate/detect ultracold gases
• Laser cooling
• Trapping
• Evaporative cooling in conservative potentials
• Detection and manipulation of ultracold atoms

11
2nd day

• How to cool a Fermi gas- special challenges,-
  like forbidden collisions- Pauli blocking, etc.
• Scattering length
• Concept of Feshbach resonance to tune
  interactions ? make things interesting!
• Making ultracold molecules, BEC of molecules

12
3rd day

• BEC of molecules
• BEC/BCS crossover
• Gap, collective excitations/ Cooper pairs ?
  superconductivity
• Vortices
• Imbalanced spin mixtures

13
4th day

• Condensed Matter Physics with atoms?
• Periodic potentials, bosonic Case Mott isolator
• Fermions The Fermi Surface
• Interactions of Fermions in optical lattices
• Low dimensional systems
• Future directions with optical lattices
• Final discussion

14
Spontaneus light force
photon momentum (recoil)
scattering rate
Lithium
acceleration
Frisch 1933 Deflection of a sodium beam using a
Na-lamp
15
Model 2 level atom
Spontaneous scattering rate
s0 saturation
G
Line width
16
Optical molasses

• Doppler shift

red detuned
blue detuned
17
Doppler molasses
18
? Optical molasses!
Harold Metcalf (1986)
19
How cold can we get?
Spontaneous emission causes heating, due to
randomly distributed emission. stationary state
when heating ratecooling rate minimal, when
T ??/2kB
? a few MHz ? Tmin typically 0.10.25 mK
Prediction by Hänsch, Schawlow, Wineland, Dehmelt
(1975)
20
Much lower temperatures observed!!!
Time-of flight measurement
21
Sub Doppler and sub recoil cooling

• So far we only considered a 2-level atom,
• typically, there are several Zeeman-sublevels.
• different Zeeman-sublevel experience different
• light shifts, dressed atom picture

Rabi frequency
22
Sisyphus cooling

• Light shift on Zeeman level
• (Clebsch Gordan coefficients)

Counter propagating Laser beams with orthogonal
polarization create a polarization grating
23
Sideband cooling
Quantization of trap potential
egt
Condition for sideband cooling Lamb-Dicke
regime Localize atoms better than Dxltlt l
ggt
Used in this way in ion traps!
24
Raman-sideband cooling
Optical pumping
Raman-coupling
A little more complicated, but universal!
e.g. in optical lattice!
25
Magneto-optical trap
Optical molasses magnetic field polarisation
26
MOT in 3D
Quadrupole field through anti-Helmholtz
coils, Counterpropagating laser beams in x,y,z,
with proper polarization
27
How to load a MOT?

• Most simple technique Load atoms from vapor!
  but trapping velocity is limited to v a few 10
  m/s,e.g. Rb., Cs.
• ? only a small fraction of the Boltzmann
  distribution can be trapped!
• also atomic vapor limits the vacuum and causes
  trap loss (Especially critical for subsequent
  experiments!)

28
Loading from and atomic beam
Atoms with a low vapor pressure ? need to be
evaporated from an oven.
(need to compensate Doppler shift!)
Slow an atomic beam?
? make use of spontaneous light scattering!
29
Zeeman slower
Make use of Zeeman tuning
Extend MOT to obtain slow atomic beam
Apply magnetic field, such that
E.g. Li, Na
30
MOT .
31
(Density) limitation of the MOT

• What limits the (phase space) density in a MOT?
• Collisions with background gas (? vapor cell!)
• Light assisted collisions

e.g.
? photo association!
max. phase space density 10-5
32
How to obtain a quantum gas?

• So far No success with exclusively optical
  cooling, but it provides excellent starting
  conditions
• Also No success without optical cooling!!!

33
Conservative potentials for atoms

• Spatially varying magnetic field (magnetic trap)
• ? trap polarized atoms
• Far detuned laser fields (?induce dipole)

34
Magnetic trap

• Simplest configuration quadrupole field (MOT)
• ? There is a problem, when the atoms get colder

µB
Majorana spin flips at B0!
Orientation of the magnetic field should not
change faster than Larmor frequency
B
35
Ways around the zero

• Time Orbiting Potential (TOP) Trap
• Rotate zero of magnetic field fast enough such
  that the atoms dont take notice
• but slower than the Larmor frequency
• Time averaged potential!

36
Trap with offset field

• Ioffe-Bars with minimum (0G) in the center

Pinch-coils produce an offset field and confine
the atoms axially
? Ioffe Pritchard-trap
37
Optical traps (dipole force)

• Electric field induces dipole

E
p
38
oscillating E-Feld

• E-field oscillates slower than resonance (red
  detuned light) dipole oscillates in phase
• Intensity maximum is trap (e.g. focus)
• E-field oscillates faster than resonance (blue
  detuned)
• Dipole phase is shifted by p
• Intensity minimum is trap (e.g. hollow beam)

39
optical dipole interaction
red detuning (wltw0)
blue detuning (wgtw0)
optical dipole force Fdip - ?Udip optical
dipole potential
attraction
repulsion
For most applications Need to go for very large
detunings!
40
Why an optical trap?

• Challenge
• Typically, very large intensities are required
  to create the desired potential
• Also, photon scattering has to be taken care of!

• Potential is independent of spin state, magnetic
  field
• Very flexible opportunities to shape potentials,
• ? e.g. optical lattice

41
Evaporative cooling

• Idea Remove hottest atoms, while thermal
  equilibrium is maintained

Important figure of merit Gain in phase space
density per loss of particles
42
EV cooling techniques

• In magnetic traps, use RF fields to convert atoms
  to a high-field seeking state at distinct
  magnetic field (i.e. position)

potential
position
43
EV cooling techniques

• In optical traps, reduce trap depth by reducing
  laser power.

44
Evaporative cooling

• Important quantities
• Truncation parameter
• Ratio of good to bad collisions

Bad collisions E.g. dipolar relaxation,
three-body recombination .
45
Optimize EV cooling

• Efficiency limited by
• Collision rate
• LossesBackground gas (increase collision
  rate)Binary collisions (scales just as EV
  cooling)Three body collisions (go for low
  density)
• HeatingPhoton scatteringParametric
  heatingAnti-evaporation (e.g. Majorana spin
  flips)
• Trap geometry

46
Efficiency

• Graph Typical efficiencies .

EV cooling efficiency
truncation parameter h
47
Optimize EV cooling

• Geometry matters when the gas becomes (close to)
  hydrodynamic, e.g. trap frequency lt collision
  rate
• Example for inefficient geometry
• Magnetic trap with gravitational sag

48
Which trap to use?

• Magnetic trap
• Easy evaporation,
• Well defined potential
• Constant trap frequency
• Optical trap
• More freedom with trap potentials
• Can trap atoms in absolute (magnetic) ground
  state
• Have to take care of photon scattering (use far
  off-resonant traps!)

49
Absorption imaging

• resonant cross section of the atoms l2
• (depends on Clebsch-Gordan coefficients)
• Considerable absorption already at very low
  density

Image shadow on CCD!
Important advantage See ALL scattered photons
50
Absorption imaging
This is the quantity we measure
In the same way, measure momentum
distribution Time of flight (TOF) measure
spatial distribution after a certain time of
flight
51
Challenges when cooling Fermions

• Identical ultracold particles do not collide
  (s-waves).
• Pauli blocking makes cooling of a degenerate
  Fermi gas very inefficient.
• Also Very low temperatures required to observe
  superfluidity

52
Idea Use Bosons to cool Fermions

• Bosons can be cooled with established
  technology
• Not the first degenerate Fermi gas, but a very
  instructive one
• 6Li cooled by bosonic 7Li (Rice U., ENS Paris)
• Difference of just one neutron makes all the
  difference!

53
6Li7Li cooled together

• Two MOTs for the two isotopes (10GHz isotope
  shift)
• Magnetic trap traps both isotopes

54
Challenges to achieve very low T

• Bosons condense to BEC -gt heat capacity drops to
  zero, no more cooling effect
• Interactions between Fermions are necessary to
  observe interesting physics -gt spin mixture is
  needed
• To study pairing effects, wish to tune pairing
  energy!
• All of this Tomorrow by Henning Moritz

55
Literature

• Metcalf and van der StraatenLaser cooling and
  trapping
• Ketterle, Durfee and Stamper-KurnMaking,
  probing and understanding Bose-Einstein
  condensates
