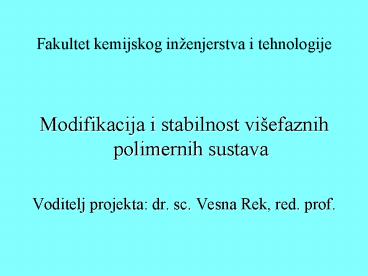

Title: Fakultet kemijskog inenjerstva i tehnologije


1
Fakultet kemijskog inenjerstva i tehnologije
  • Modifikacija i stabilnost viefaznih polimernih
    sustava
  • Voditelj projekta dr. sc. Vesna Rek, red. prof.

2
Modification and stability of multiphases polymer
systems
  • Investigators
  • Prof. dr. sc. Vesna Rek principal investigator
  • Prof. dr. sc. Emi Govorcin Bajsic
  • Dr. sc. Tamara Holjevac Grguric
  • Nina Vranje, dipl. ing.
  • Vesna Ocelic, dipl. ing.
  • Dr. sc. elimir Jelcic
  • Mr. sc. Andrea Strineka
  • Foreign researchers
  • Prof. dr. sc. Ivan Fortelny Institute of
    Macromolecular Chemistry, Prague
  • Prof. dr. sc. Dorota Pietkiewicz University of
    North Texas, Denton, USA

3
  • Hypothesis
  • Mixing plastomers (P) with various degrees of
    crystallinity and polarity and P with
    thermoplastic elastomers (TPE) and bitumen enable
    the achievement of new polymer blends (PMB) and
    polymer bitumen (PmB) engineering properties.
  • The aim
  • Design properties for applications
  • Development new multiphases systems, PMB and PmB
  • Commodity plastics
  • Engineering plastic
  • Correlations between the composition of
    multiphase polymer systems, PMB and PmB
  • Morphological structure phase interaction
  • Rheological properties in processing and use
  • Mechanical properties tensile and impact
    properties
  • Wear resistance

4
  • Application
  • Construction and building, road technology
  • Medical purpose
  • Thermoforming
  • Packing
  • Mixed plastic waste recycling
  • Economical and ecological important
  • Education knowledge about the structure/propertie
    s relationship in
  • PMB and PmB

5
  • Systems
  • Blends
  • PS/HDPE compatibilizer SEBS
  • PP/PS compatibilizer SEBS and SEBS- g- MA
  • PS/PB compatibilizer SB, SBS, SBSBS
  • PP/HDPE compatibilizer EPDM
  • TPU/PP modifier PP
  • PC/TPU modifier TPU
  • Polymer bitumen modifier SBS
  • Methodology
  • Processing characteristics TQ, Output, ?app
  • Morphology SEM, IA, TEM, SAXS,OM,WAXD, PM
  • Rheological properties in use DMA, DSR
  • Mechanical properties tensile and impact
    properties

6
PS/HDPE/SEBS processing parameters
a)
b)
c)
  • Processing parameters (a) TQ, (b) TQ/Q, (c) p/Q.
  • Decrease with HDPE content
  • SEBS did not significantly influence

7
Morphology
a)
d)
  • Coarse morphology
  • Two phases structure
  • Improvement interfacial adhesion
  • Homogeneous structure
  • Localization of SEBS at interphase

b)
e)
f)
c)
Microphotographs PS/HDPE 80/20 (a), PS/HDPE/SEBS
80/20/5 (b), PS/HDPE/SEBS 80/20/7 (c), PS/HDPE
40/60(d), PS/HDPE/SEBS 40/60/5 (e) and
PS/HDPE/SEBS 40/60/7 (f)
8
Mechanical properties of examined systems
Mechanical properties
  • Izod impact strength and elongation at
  • break increased with SEBS
  • It is more expressed in HDPE rich blend
  • Tensile strength did not change
  • significantly

9
DMA measurements
a)
b)
d)
c)
  • Master curves at Tref 25 C for a) PS/HDPE/SEBS
    80/20/5, b) PS/HDPE/SEBS 40/60/5, c) PS/HDPE/SEBS
    80/20/7, d) PS/HDPE/SEBS 40/60/7.
  • With HDPE and SEBS contents creep modulus
    decreased the creep values increased.

10
Morphology
a)
d)
  • Coarse morphology
  • Two phases structure
  • Co-continuous morphology
  • Reduction of the particle size
  • Homogeneous structure

b)
e)
c)
f)
Microphotographs PP/PS 90/10 2000x (a),
PP/PS/SEBS 90/10/5 2000x (b), PP/PS/SEBS
90/10/7 2000x (c), PP/PS 20/80 500x (d),
PP/PS/SEBS 20/80//7 500x (e) and PP/PS/SEBS
20/80/7 2000 x(f)
11
Scratch resistance
Single scratching
  • Higher penetration depth
  • with higher force and with
  • scratch number

Multiple scratching
SEM microphotographs after single scratch at 20 N
PP/PS/SEBS 90/10/7
PP/PS 90/10
Ploughing wear mechanism
Adhesive wear mechanism
12
  • The blends of PS/PB/SBS and PS/PB/SBSBS have
    the highest tensile impact strength and ductility
    index.

Tensile impact strength of PS/PB blends.
Ductility index of PS/PB blends obtained by
Charpy impact test (load deflection curves).
AP propagation energy AT total fracture energy
13
DMA measurements
TPU/PP blends
  • Tgs maxima of the TPU and PP phases slightly
    broaden and shift towards to each other
  • E increases with increasing PP content
  • Partial compatibility of the TPU and PP chains

14
Mechanical properties
  • Stepwise decrease of the elongation at break and
    increase of Young modulus occur
    between the TPU/PP 80/20 and 60/40 blends
  • Ductile brittle transition occurred in this
    concentration region

15
Polarization microscopy
Wide-Angle X-Ray Diffraction
  • Stable monoclinic ?-phase of semicrystalline
    isotactic PP low degree of crystallinity of TPU
  • Stepwise change of reflections intensity between
    the TPU/PP 80/20 and 60/40 blends

(a) neat PP, (b) TPU/PP 40/60, (c) TPU/PP 60/40,
and (d) TPU/PP 80/20 blend
  • Stepwise decrease of spherulite size from TPU/PP
    60/40 to TPU/PP 80/20 blends
  • Matrix ? dispersed phase inversion in this
    concentration region

16
Polymer bitumen modifier SBS
  • Modification of rheological properties
  • Better viscoelastic properties
  • viscoelastic plateau
  • Broader temperature range of use

DMA spectra's of a) bitumen, b) PmB- BIT/SBS
90/10 and c) PmB- BIT/SBS 87/13
17
Creep and recovery at constant stress for
bitumen and PmB - BIT/SBS at different
temperatures
  • Physical network in PmB swollen PS and PB
  • phases in BIT
  • Higher creep and recovery values of PmB
  • Better resistance to permanent deformation

Micrograph of PmB - BIT/SBS 90/10
18
DSR measurements
  • BIT
  • Sharp test 58 ºC

b) PmB Sharp test 64 ºC
19
  • Equipment
  • Dynamical Mechanical Analyser, DMA, TA 983
  • Modulated Differential Scanning Calorimeter, MDSC
    822, Mettler Toledo
  • Instrument for mechanical testing, Zwick 1145
  • Rondol extruder
  • RTFOT Civil Engineering Institute of Croatia
  • Fluorescence microscope, Olympus BX51M - Civil
    Engineering Institute of Croatia
  • Scanning Electron Microscope, Jeol J. S. M. 5800
    Pliva
  • Brookfield viscosimeter
  • FTIR Perkin Elmer 297
  • Contact angle
  • Dynamic Shear Rheometer, DSR - Civil Engineering
    Institute of Croatia

20
  • Chapters in books
  • Rek, Vesna Vranje, Nina Barjaktarovic, Zrinka
    M., Evaluation of ageing properties of polymer
    modified bitumen, Natural and Artifical Ageing of
    Polymers, 2005, 369-379.
  • Rek, Vesna Barjaktarovic, Zrinka, Holjevac
    Grguric Tamara, The rheological properties of
    aged polymer bitumen, Natural and Artifical
    Ageing of Polymers, 2004, 151-162.
  • Articles in Impact factor journals
  • Rek, Vesna Vranje, Nina louf, Miroslav
    Fortelny, Ivan Jelcic, elimir, Morphology and
    properties of SEBS block copolymer compatibilized
    PS/HDPE blends, J Elast Plast, 40 (2008) , 3
    237-251.
  • Brostow, W., Holjevac Grguric, T., Olea-Mejia,
    O., Rek, V., Unni, Y., PPPS Blends with
  • compatibilizer 1. Morphology and
    Thermophysical Properties, e-polymers, (2008),
    033
  • Brostow, W., Holjevac Grguric, T., Olea-Mejia,
    O., Pietkiewicz, D., Rek, V., PPPS
  • Blends with a compatibilizer 2. Mechanical
    and Tribological Properties, e-polymers,
  • (2008), 034
  • Vranje, Nina Lednicky, Frantiek Kotek, Jiri
    Baldrian, Josef, Rek, Vesna Fortelny, Ivan
    Horak, Zdenek, Compatibilization efficiency of
    styrene-butadiene block copolymers as a function
    of their block number, J Appl Polym Sci, 108
    (2008) 466-472.
  • Agic, Ante Govorcin Bajsic, Emi, Strategy for
    kinetic parameter estimation thermal
    degradation of polyurethane elastomers, J Appl
    Polym Sci, 103 (2007) 764-772 .
  • Govorcin Bajsic, Emi mit, Ivan Leskovac,
    Mirela, Blends of thermoplastic polyurethane and
    polypropylene. I. Mechanical and phase behavior,
    J Appl Polym Sci, 104 (2007) 3980-3985.

21
  • Vranje, Nina Rek, Vesna, Effect of EPDM on
    morphology, mechanical
  • properties, crystallization behavior
    and viscoelastic properties of iPPHDPE blends,
    Macromolecular Symposia, 258 (2007) 90-100.
  • Agic, Ante Govorcin Bajsic, Emi Rek, Vesna,
    Kinetic parameters estimation for
  • thermaldegradation of polyurethane
    elastomers, J Elast Plast, 38 (2006) 105.
  • Jelcic, elimir, Holjevac Grguric, Tamara Rek,
    Vesna, Mechanical properties and fractal
    morphology of high-impact polystyrene/poly(styrene
    -b-butadiene-b-styrene) blends, Polym Deg Stab,
    90 (2005) 295-302.
  • Rek, Vesna Vranje, Nina Barjaktarovic, Zrinka
    M., Evaluation of ageing properties of polymer
    modified bitumen, Mat Res Innov, 9 (2005)
    670-691.
  • Govorcin Bajsic, Emi Rek, Vesna, Dynamic
    mechanical study of thermoplastic
    polyurethane/polypropylene blends, e-polymers
    (2004), 073 1-10.
  • Rek, Vesna Holjevac Grguric, Tamara Jelcic,
    elimir Hace, Drago.Effect of
    styrene/ethylene/buthylene/styrene block
    copolymer on dynamic mechanical behaviour and
    processability of high impact polystyrene,
    e-polymers (2004), 034 1-13.
  • Govorcin Bajsic, Emi Rek, Vesna Agic, Ante,
    Thermal Degradation of polyurethane Elastomers
    Determination of kinetics parameters, J Elast
    Plast, 35 (2003) 311-323.
  • Rek, Vesna Holjevac Grguric, Tamara Jelcic,
    elimir, Creep relaxation and stress relaxation
    of PS-HI/SEBS blends, Macromolecular Symposia,
    202 (2003) 127-141.
  • Rek, Vesna Holjevac Grguric, Tamara Jelcic,
    elimir, Processing and dynamic mechanical
    properties of PS-HI/SEBS, Macromolecular
    Symposia, 202 (2003) 143-150.
  • Rek, Vesna Barjaktarovic, Zrinka, Dynamic
    mechanical behaviour of polymer modified bitumen,
    Mat Res Innov, 6 (2002) 39-43.
