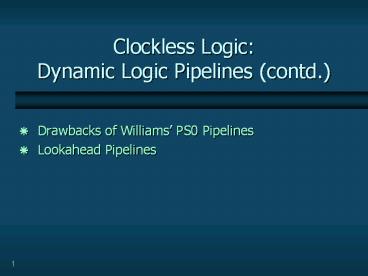

Clockless Logic: Dynamic Logic Pipelines (contd.)

1
Clockless LogicDynamic Logic Pipelines (contd.)

• Drawbacks of Williams PS0 Pipelines
• Lookahead Pipelines

2
Drawbacks of PSO Pipelining

• Poor throughput
• long cycle time 6 events per cycle
• data tokens are forced far apart in time
• Limited storage capacity
• max only 50 of stages can hold distinct tokens
• data tokens must be separated by at least one
  spacer
• Our Research Goals address both issues
• still maintain very low latency

3
Recent Approaches

• 3 novel styles for high-speed async pipelining
• Lookahead Pipelines (LP) Singh/Nowick,
  Async-00
• High-Capacity Pipelines (HC) Singh/Nowick,
  WVLSI-00
• MOUSETRAP Pipelines Singh/Nowick, TAU-00
• Goal significantly improve throughput of PS0
• Two Distinct Strategies
• LP introduce protocol optimizations
• shave off components from critical cycle
• HC fundamentally new protocol
• greater concurrency loosely-coupled stages

?
?
4
Outline

• New Asynchronous Pipelines
• Lookahead Pipelines (LP)
• High-Capacity Pipelines (HC)
• MOUSETRAP Pipelines

5
Lookahead Pipelines Strategy 1

• Use non-neighbor communication
• stage receives information from multiple later
  stages
• allows early evaluation

Benefit stage gets head-start on next cycle
6
Lookahead Pipelines Strategy 2

• Use early completion detection
• completion detector moved before stage (not
  after)
• stage indicates early done in parallel with
  computation

early completion detector
Benefit again, stage gets head-start on next
cycle
7
Lookahead Pipelines Overview

• 5 New Designs
• Dual-Rail Data Signaling
• LP3/1 early evaluation
• LP2/2 early done
• LP2/1 early evaluation early done
• Single-Rail Bundled-Data Signaling
• LPSR2/2 early done
• LPSR2/1 early evaluation early done

8
Dual-Rail Design 1 LP3/1
PC
Eval
Data in
Data out
N
N1
N2
ProcessingBlock
Completion Detector
From N2

• Optimization early evaluation
• each stage has two control inputs from stages
  N1 and N2
• Idea shorten precharge phase
• terminate precharge early when N2 is done
  evaluating

9
LP3/1 Protocol

• PRECHARGE N when N1 completes evaluation
• EVALUATE N when N2 completes evaluation

N2 indicates done
N
N1
N2
N2 evaluates
N evaluates
N1 evaluates
10
LP3/1 Comparison with PS0
N
N1
N2
LP3/1
Only 4 events in cycle!
N
N1
N2
PS0
6 events in cycle
11
LP3/1 Performance
saved path
Savings over PS0 1 Precharge 1 Completion
Detection
12
LP3/1 Inside a Stage
Merging 2 Control Inputs
A NAND gate merges2 control inputs

• Precharge when PC1 (and Eval0)
• Evaluate early when Eval1 (or PC0)

• Problem early Eval1 is non-persistent!
• may be de-asserted before stage completes
  evaluation!

13
LP3/1 Timing Constraints Example
Problem (cont.) early Eval1 non-persistent

• Observation PC0 soon after Eval1, and is
  persistent
• Solution no change!
• ?use PC as safe takeover for Eval!
• Timing Constraint PC0 must arrive before Eval
  de-asserted
• simple one-sided timing requirement
• other constraints as well all easily satisfied
  in practice

14
Dual-Rail Design 2 LP2/2

• Optimization early done
• Idea move completion detector before processing
  block
• stage indicates when about to precharge/evaluate

early Completion Detector
early done
Data in
Data out
Processing Block
15
LP2/2 Completion Detector

• Modified completion detectors needed
• Done1 when stage starts evaluating, and inputs
  valid
• Done0 when stage starts precharging
• asymmetric C-element

16
LP2/2 Protocol

• Completion Detection
• performed in parallel with evaluation/precharge
  of stage

N
N1
N2
N evaluates
N1 evaluates
17
LP2/2 Performance
4
1
2
LP2/2 savings over PS0 1 Evaluation 1
Precharge
18
Dual-Rail Design 3 LP2/1

• Hybrid of LP3/1 and LP2/2
• Combines
• early evaluation of LP3/1
• early done of LP2/2

Cycle time Best of our dual-rail lookahead
pipelines
19
Dual-Rail Design 3 LP2/1

• Hybrid of LP3/1 and LP2/2. Combines
• early evaluation of LP3/1
• early done of LP2/2

20
Lookahead Pipelines Overview

• 5 New Designs
• Dual-Rail Data Signaling
• LP3/1 early evaluation
• LP2/2 early done
• LP2/1 early evaluation early done
• Single-Rail Bundled-Data Signaling
• LPSR2/2 early done
• LPSR2/1 early evaluation early done

21
Single-Rail Design LPSR2/1

• Derivative of LP2/1, adapted to single-rail
• bundled-data matched delays instead of
  completion detectors

22
Inside an LPSR2/1 Stage
23
LPSR2/1 Protocol
N
N1
N2
N evaluates
24
Results

• Designed/simulated FIFOs for each pipeline style

• Experimental Setup
• design 4-bit wide, 10-stage FIFO
• technology 0.6? HP CMOS
• operating conditions 3.3 V and 300K

25
Comparison with Williams PS0
dual-rail
single-rail

• LP2/1 gt2X faster than Williams PS0
• LPSR2/1 1.2 Giga items/sec

26
Comparison LPSR2/1 vs. Molnar FIFOs

• LPSR2/1 FIFO 1.2 Giga items/sec
• Adding logic processing to FIFO
• simply fold logic into dynamic gate ? little
  overhead
• Comparison with Molnar FIFOs
• asp FIFO 1.1 Giga items/sec
• more complex timing assumptions ? not easily
  formalized
• requires explicit latches, separate from logic!
• adding logic processing between stages ?
  significant overhead
• micropipeline 1.7 Giga items/sec
• two parallel FIFOs, each only 0.85 Giga/sec
• very expensive transition latches
• cannot add logic processing to FIFO!

27
Practicality of Gate-Level Pipelining
When datapath is wide

• Can often split into narrow streams

• Use localized completion detector
• for each stream

• need to examine only a few bits
• ? small fan-in

• send done to only a few gates
• ? small fan-out

• comp. det. fairly low cost!

28
Conclusions

• Introduced several new dynamic pipelines
• Use two novel protocols
• early evaluation
• early done
• Especially suitable for fine-grain (gate-level)
  pipelining
• Very high throughputs obtained
• dual-rail gt2X improvement over Williams PS0
• single-rail 1.2 Giga items/second in 0.6? CMOS
• Use easy-to-satisfy, one-sided timing constraints
• Robustly handle arbitrary-speed environments
• overcome a major shortcoming of Williams PS0
  pipelines
• Recent Improvement Even faster single-rail
  pipeline (WVLSI00)
