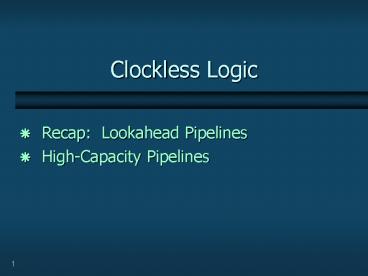

Clockless Logic

1
Clockless Logic

• Recap Lookahead Pipelines
• High-Capacity Pipelines

2
Recap Lookahead Pipeline Styles

• 2 Strategies
• Early Evaluation
• Early Done

3
Lookahead Pipelines Strategy 1

• Use non-neighbor communication
• stage receives information from multiple later
  stages
• allows early evaluation

Benefit stage gets head-start on next cycle
4
Lookahead Pipelines Strategy 2

• Use early completion detection
• completion detector moved before stage (not
  after)
• stage indicates early done in parallel with
  computation

early completion detector
Benefit again, stage gets head-start on next
cycle
5
Single-Rail Styles

• Adapt dual-rail styles to single-rail
• replace dual-rail function blocks by single-rail
  blocks
• replace completion detectors by matched delays

Example LPsr2/2
6
Single-Rail Styles (contd.)

• Example LPsr2/1

7
High-Capacity Pipelines

• Singh/Nowick WVLSI-00, ISSCC-02, Async-02

8
Recent Approaches

• 3 novel styles for high-speed async pipelining
• Lookahead Pipelines (LP) Singh/Nowick,
  Async-00
• High-Capacity Pipelines (HC) Singh/Nowick,
  WVLSI-00
• MOUSETRAP Pipelines Singh/Nowick, TAU-00
• Goal significantly improve throughput of PS0
• Two Distinct Strategies
• LP introduce protocol optimizations
• shave off components from critical cycle
• HC fundamentally new protocol
• greater concurrency loosely-coupled stages

?
?
9
High-Capacity Pipeline HC

• Key Idea Decouple control for pull-up and
  pull-down
• increases pipeline concurrency ? initiates next
  cycle early
• once N1 evaluates, can enter isolate (hold)
  phase
• stage N allowed to complete entire next cycle!

N
N1
N2
10
Inside an HC stage

• Decoupled control pull-up and pull-down stacks
  are independently controllable

eval
pc
keeper
precharge control
Pull-down stack
datainputs
dataoutputs
evaluation control

• pc asserted precharge
• eval asserted evaluate
• both de-asserted enter isolate (hold) phase

11
Cycle of an LPHC Stage
Stage N
Stage N1

• Only a single backward synchronization arc
• once stage N1 has completed Eval, N can perform
  entire next cycle!
• why safe? N1 enters isolate phase key to
  greater concurrency
• almost all existing approaches require 2 arcs
• One (natural) forward synchronization arc
• stage N1 evaluates new data only after N has
  evaluated

12
Formal Specification of Controller

• Problem Specification too concurrent for direct
  synthesis
• desired precharge condition N and N1 have
  evaluated same data
• problem this condition not uniquely captured by
  given signals!
• N may evaluate next data item, while N1 stuck on
  current item!

13
Modified Specification of Controller

• Solution Add a state variable ok2pc

• ok2pc records whether N1 has absorbed Ns data
  item
• ok2pc resets immediately when N deletes item (N
  precharges)
• ok2pc is set when N1 deletes item (N1
  precharges)

14
Controller implementation
S
pc
T
NAND3
S
aC

ok2pc
eval
S
INV

• Controller implementation is very simple
• each signal implemented using a single gate
• ok2pc typically off the critical path

15
Performance
N
N1
N2
N enables itself for next evaluation
N precharges
N evaluates
N1 evaluates
16
Ripple-Carry Adder One Stage

• Mixed Dual-Rail/Single-Rail Datapath
• single-rail sum
• dual-rail A, B, Carry-in and Carry-out
• must implement binate functions using unate
  dynamic logic

17
Final Adder Architecture
shift-registers provide operand bits
A,B
carryin
adder stage
carryout
most significant
least significant
sum
shift-registers accumulate sum bits
18
Results

• Designed/simulated adder in each pipeline style
• Experimental Setup
• design 32-bit ripple-carry-adder
• technology 0.6? HP CMOS, _at_3.3 V and 300K

New LPHC style 10 faster than LPSR2/1
19
Conclusions

• Introduced 2 new asynchronous adders
• Use novel pipeline protocols
• observe events from multiple later stages
• decouple control of pull-up/pull-down
• Especially suitable for fine-grain (gate-level)
  pipelining
• Very high-throughputs obtained
• 0.93-1.02 GHz in 0.6?
• expected to outperform the best (IPCMOS 3.3-4.5
  GHz / 0.18?)
• LPHC doubles the typical storage capacity
• Robustly handle arbitrary-speed environments
• useful as IPs
• Future Work Layout/fabrication, application to
  DSPs
