Ercan U' Acar, Howie Choset

1

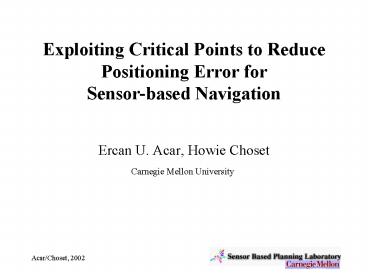

Exploiting Critical Points to Reduce Positioning
Error for Sensor-based Navigation

• Ercan U. Acar, Howie Choset

Carnegie Mellon University
2
Outline

• Morse Decompositions
• Exact cellular decompositions in terms of
  critical points for sensor-based coverage
• Topological Navigation Using Morse
  Decompositions
• Determining paths that do not heavily rely on
  dead-reckoning

3
Morse Decompositions

• Slice function h(x,y) x, slice(x,y)
  h(x,y)?
• At a critical point (x,y) of
• where M (x,y) m(x,y)0

4
1-connected
5
2-connected
6
1-connected
7
2-connected
8

• Connectivity of the slice in the free space
• changes at the critical points
• (Morse Theory, 1920)

9
Each cell can be covered by back and forth
motions
10
Incremental Construction in Unknown Spaces
(Acar et. al, ICRA00)

• Critical point sensing using range data

Surface normal
At a critical point (x,y),
At critical point (x,y)
slice
robot

• Complete sensor-based coverage algorithm
• Complete
• No limitations on obstacle configurations
• Any senor system that is sufficient to guide the
  robot
• along the obstacle boundaries
• Low computational power requirement

11
Experiment

• Nomad Scout with 16 sonars
• Area 4m x 4.6m

Reeb Graph
(time compressed)
12
Topological Navigation Using Morse Decompositions
Goal Navigation algorithm that is less sensitive
to dead-reckoning error
A
C
D
The robot needs to travel from one critical
point to another to reach an uncovered cell
B
13
Navigation within a Cell
Each cell of a Morse Decomposition has none
intersecting upper and lower boundaries
Straight line following
A
Boundary following (robust to dead-reckoning
error)
B
Straight line following
Reverse boundary following (robust to
dead-reckoning error)
y
x
Assumption Dead-reckoning error is bounded
within each cell Critical
points are laterally far away from each other
14
Types of Critical Points
IN
OUT
START
END
15
Encoding Navigation Information Into Reeb Graph
Order of boundary following and line following
motions is determined by

• Types of critical points

• Relative position of cells
• with respect to critical points

16

• Line following
• Boundary following

• Boundary following

• Line following
• Boundary following
• Line following
• Reverse Boundary following

17

• Line following
• Boundary following

• Boundary following

• Line following
• Boundary following
• Line following
• Reverse Boundary following

18

• Line following
• Boundary following

• Boundary following

• Line following
• Boundary following
• Line following
• Reverse Boundary following

19
Navigation Between Cells without a Common Boundary
20
Navigation Between Cells without a Common Boundary
Dead-reckoning error accumulates along the entire
path
21
Experiment
Vinyl
Carpet
error

• Boundary following
• Line following
• Reverse Boundary following

The robot successfully reaches point B in the
presence of dead-reckoning error
22
Conclusions

• Representations of the space with simple
  structures
• for navigation Morse Decompositions
• Decreased the dimension of the
• problem from three to two

23
Future Work

• Limitations
• Orientation error
• Large cells
• Critical points that are laterally
• close to each other
• Critical point recognition
• Determining invariant features of critical points

24
Complexity of a Morse Decomposition
Decomposition using critical points
Reeb Graph Representation (Nodes are critical
points, edges are cells, faces are objects)
Eulers formula for a planar graph of nodes -
of edges of faces 2
Modified Eulers formula for a Morse
Decomposition of critical points - of cells
of obstacles 1 of cells of
critical points of obstacles -1
