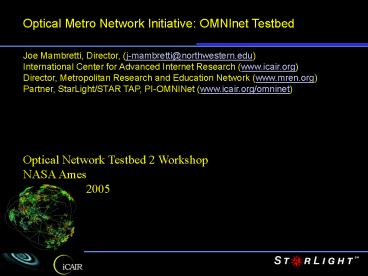

Optical Metro Network Initiative OMNInet
Testbed Joe Mambretti, Director,
(j-mambretti_at_northwestern.edu) International
Center for Advanced Internet Research
(www.icair.org) Director, Metropolitan Research
and Education Network (www.mren.org) Partner,
StarLight/STAR TAP, PI-OMNINet (www.icair.org/omni
net) Optical Network Testbed 2
Workshop NASA Ames Sept. 12-14, 2005
2
Introduction to iCAIR
Accelerating Leading Edge Innovation and
Enhanced Global Communications through Advanced
Internet Technologies, in Partnership with the
Global Community
  • Creation and Early Implementation of Advanced
    Networking Technologies - The Next Generation
    Internet All Optical Networks, Terascale Networks
  • Advanced Applications, Middleware, Large-Scale
    Infrastructure, NG Optical Networks and Testbeds,
    Public Policy Studies and Forums Related to NG
    Networks

3
OMNInet
  • The OMNInet Research is Creating New
    Architectural Approaches for Communication
    Services Based on Dynamically Provisioned
    Lightpaths, Supported by Agile Optical Networks
  • This Research is Investigating New Architecture
    and Technologies for L1 L2, While Also
    Exploring New Complementary L3 and L4 Methods
  • This Research is Creating Fundamentally New
    Methods for Agile Optical Transport Enabling
    Migration From Legacy Systems
  • OMNInet Reduces Hierarchical Layers and
    Implements Highly Distributed Controls, e.g.,
    Enabling Applications To Provision Lightpaths
    Dynamically
  • Since 2001, the Testbed Has Had No SONET
    Components, OOO Switches at the Core Have
    Supported 24 Individually Addressable Lightpaths
    Among 4 Core Nodes
  • Future Research Will Integrate SONET-Less
    Optical Transport With SONET Switching
  • Through Various Research Projects, the Testbed
    has Been Extended to Sites Nationally and
    Internationally

4
OMNInet
  • The OMNInet Testbed is Developing New
    Architectural Designs for Communication Services
    Based on Dynamically Provisioned Lightpaths,
    Supported by Agile Optical Networks
  • This Research is Investigating New Architecture
    and Technologies for L1 L2, While Also
    Exploring New Complementary L3 and L4 Methods
  • This Research is Creating Fundamentally New
    Methods for Agile Optical Transport Enabling
    Migration From Legacy Architecture, Esp. Those
    Oriented to Centralized Management and Control
  • The OMNInet Testbed Reduces Hierarchical Layers
    and Implements Highly Distributed Controls, e.g.,
    Enabling Applications To Provision Lightpaths
    Dynamically
  • Since 2001, the Testbed Has Had No SONET
    Components, OOO Switches at the Core Have
    Supported 24 Individually Addressable Lightpaths
    Among 4 Core Nodes
  • Next - Integration of SONET-Less Optical
    Transport W/SONET Switching
  • Through Various Research Projects, the Testbed
    has Been Extended to Sites Nationally and
    Internationally

5
Services Based on New Technologies
  • Enhanced Volume/Capacity
  • Enhanced Device Performance
  • Enhanced Device Addressibility/Flexibility
  • Decentralized Control
  • Spectral Efficiency f(Rate and Channel Distance)
  • Transparency
  • Minimal Conversions, Esp. OEO
  • Distance
  • Flexibility (Esp. Dynamic Adjustments)
  • Et al

6
Multilayer Layer Control Planes and Optical
Packet Switching
Edge Device-Router
Ubiquitous Management Plane Access Engineering Re
storation Performance Resource Use Audits
Edge Device Cluster
Optical Packet Router
Optical Packet Router
Optical Packet Router
Optical Routing
Optical Packet Router
Optical Packet Router
Ubiquitous Control Plane Provisioning Wavelength A
ssignment Wavelength Routing
Data Plane Optical Transport
Optical Layer Switched Lightpaths
7
10GE Links
GE Links
CSW
ASW
IEEE 802.3 LAN PHY Interface, eg, 15xx nm 10GE
serial
l1 l2 l3 l4
10GE Links
Multiwavelength Fiber
Grid Clusters
Multiple l Per Fiber
ASW
DWDM Links
GE Links
Near Term Potential for 10 G Elec. to BP Longer
Term Potential for Driving Light to BP via Si,
New Polymers

NNN
Multiwavelength Optical Amplifier
  • Optical,
  • l Monitors, for
  • Wavelength Precision, etc.

Power Spectral Density Processor, Source
Measured PSD
Multiple Optical Impairment Issues, Including
Accumulations
Grid Clusters
Computer Clusters Each Node 1GE Multi 10s,
100s, 1000s of Nodes
8
New Intelligent Application Signaling
Client Layer Control Plane Communications
Service Layer Service Layer, Policy Based Access
Control, Client Message Receiver, Signal
Transmission, Data Plane Controller, Data Plane
Monitor
IAS Server
Optical Layer Control Plane
UNI
Controller
Controller
Controller
Controller
I-UNI
CI
CI
CI
Client Data Plane Server
Client Layer Traffic Plane
Optical Layer Switched Traffic (Data)
Plane Multiiservice Unicast, BiDirectional,
Multicast, Burst Switching
Also Control Signaling, et al
9
Example Control Plane Signaling Functions
  • Multi-Dimensional Signal Processing (Distributed)
  • Signal Processing From Clients, e.g.,
    Application, Systems, Device, Including Ad Hoc
    Demand for Resources
  • Signalling ? Management Plane, e.g.,
    Provisioning, Restoration
  • Signally ? Resource Management, Including
    Resource Discovery, Scheduling/Reservation (IETF
    RSVP Extensions), Resource Contention Resolution
  • Lightpath Provisioning (E2E), Deletion,
    Characterization
  • Via Signaling to Device Interfaces, e.g., Optical
    Switch Configuration with Tl1, GMPLS, et al
  • Data Plane Signal Processing, e.g., Resource
    Advertisements
  • Signaling ? Data Plane, e.g., Wavelength
    Assignment, Wavelength Routing
  • Signaling ? Data Plane Management Systems
  • Optimization Signaling ? IETF Extensions for OSPF
    for Optical Routing
  • Et al
  • Implications for Signaling Related to Optical
    Packet Switching

10
HP-PPFS
HP-APP2
HP-APP3
HP-APP4
VS
VS
VS
VS
Previously OGSA/OGSI, Soon OGSA/OASIS WSRF
tcp
Lambda Routing Topology discovery, DB of
physical links Create new path, optimize path
selection Traffic engineering Constraint-based
routing O-UNI interworking and control
integration Path selection, protection/restoratio
n tool - GMPLS
tcp
Architecture
ODIN Server Creates/Deletes LPs, Status Inquiry
Access Policy (AAA) Process Registration
GMPLS Tools (with CR-LDP) LP Signaling for
I-NNI Attribute Designation, eg Uni, Bi
directional LP Labeling Link Group designations
System Manager Discovery Config Communicate Interl
ink Stop/Start Module Resource Balance Interface
Adjustments
Process Instantiation Monitoring
Discovery/Resource Manager, Incl Link
Groups Addresses
OSM
ConfDB
UNI-N
Physical Processing Monitoring and Adjustment
Data Plane
Resource
Resource
Resource
Resource
Control Channel monitoring, physical fault
detection, isolation, adjustment, connection
validation etc
11
OMNInet Technology Trial 2002-05
UIC
Northwestern U
4x10GE
8x1GE
8x1GE
4x10GE
Optical Switching Platform
Optical Switching Platform
Application Cluster
Application Cluster
Passport 8600
Passport 8600
OPTera Metro 5200
600 South Federal
StarLight
8x1GE
4x10GE
8x1GE
Optical Switching Platform
Application Cluster
Optical Switching Platform
Application Cluster
Passport 8600
Passport 8600
(1st _at_CAnet3/4Chicago)
  • A four-site network in Chicago -- the first 10GE
    service trial!
  • A test bed for all-optical switching/advanced
    high-speed services (No SONET!)
  • Partners SBC, Nortel, iCAIR at Northwestern,
    EVL, CANARIE, ANL

12
OMNInet Network Configuration
  • 8x8x8l Scalable photonic switch
  • Trunk side 10 G WDM
  • OFA on all trunks

Sheridan
W Taylor
Photonic
DOT Clusters
10 GE
l
10 GE
Photonic
1
PP
10/100/ GIGE
PP
Node
10 GE
l
10 GE
Node
2
NWUEN-1
8600
8600
10/100/ GIGE
Optera 5200 10Gb/s TSPR
l
3
l
4
Optera Metro 5200 OFA
NWUEN-5
INITIAL CONFIG 10 LAMBDAS (ALL GIGE)
CAMPUS FIBER (16)

CAMPUS FIBER (4)
NWUEN-6
NWUEN-2
NWUEN-3
EVL/UIC OM5200
Lake Shore
TECH/NU-E OM5200
10 GE
l
PP
1
Photonic
10/100/ GIGE
10 GE
l
INITIAL CONFIG 10 LAMBDA (all GIGE)
8600
2
Node
CAMPUS FIBER (4)
l
3
l
4
LAC/UIC OM5200
NWUEN-8
NWUEN-9
NWUEN-7
NWUEN-4
S. Federal
10GE LAN PHY (Dec 03)
10 GE
PP
Photonic
10 GE
8600
To CaNet 4
Node
10/100/ GIGE
13
iCAIR Grid Clusters and OM5200 DWDM System
Leverone Hall Data Com Center
Technological Institute
DWDM on Dedicated Fiber
DOT Clusters For Telecom2003 Demo
20m
20m
4-fibers 1km
10GE WAN/LAN PHY to OMNInet
Up to 16xGE (SMF LX)
OM5200
OM5200
PP8600
DWDM Between Cluster Site and OMNInet Core Node
in Evanston
  • The implementation is lambdas (unprotected).
  • Installed shelf capacity and common equipment
    permits expansion of up to 16 lambdas through
    deployment of additional OCLD, and OCI modules.
  • A fully expanded OM5200 system is capable of
    supporting 64 lambdas (unprotected) over the same
    4-fiber span.

14
GRID Distributed Optical Testbed Components
Cluster
Advanced Photonics
Enviromental Conditioning, Power
Cluster
15
Chicago
16
DARPA DWDM-RAM Large Scale DataDynamic Lambdas
Demonstrated at GGF9 SC2003
Data Intensive App2
Data Intensive App3
HP-PPFS
Data Intensive App4
Data Web Services
Grid Data Management Services
Data Grid Services
Grid L3-L7 OGSA Compliant
New Control Plane And Management Plane Processes
Dynamic Path Services (ODIN, THOR, etc),OGSA
Compliant, Soon WSRF
Dynamic vLANs
Dynamic Lightpaths
Physical Processing Monitoring and Adjustment
17
DOT Sites, I-WIRE, and OMNInet
OMNInet
Starlight (NU-Chicago)
Because of SL Renovation This Cluster is at iCAIR
Argonne
Not Yet Part of Testbed
Not Yet Provisioned
Qwest455 N. Cityfront
UC Gleacher 450 N. Cityfront
UIC
UIUC/NCSA
McLeodUSA 151/155 N. Michigan Doral Plaza
All DOT Links Here GE
Level(3) 111 N. Canal
Illinois Century Network James R. Thompson
Ctr City Hall State of IL Bldg
UChicago
IIT
18
Some Results
  • Almost Lightpaths Had Minimal to No Packet Loss
  • In a Number of Tests, Large Scale Data Streams
    Were Transported For Many Hours With No Packet
    Losses (Measured)
  • Measured Performance of Various Provisioning
    Processes
  • More Than 1000 Successful Lightpath
    Setup/Teardown Operations
  • No Optical Component Failures - Several
    Electronic Component Failures
  • Multiple Successful Demonstrations of Multiple
    New Service/Tech Capabilities including New
    Provider Services, New Internal Optical Transport
    Capabilities
  • For Some Traffic, SONET/Routers Not Required
    (Would Have Been a Performance Barrier), for Some
    Traffic, Multi-Service Approach
  • Exceptional Grid Application Results Extremely
    High Performance
  • Have Created and Successfully Demonstrated Multi
    Times a Basic Control/Management Plane
    Architectural Model, Prototype Implementation
  • Demonstrated the Utility of Dynamic Lightpath
    Switching to High Performance Applications,
  • Created Optical Dynamic Intelligent Network
    Service Layer Architecture
  • Created Lightpath Control Protocol
  • Demonstrated the Potential of Photonic Data
    Services
  • Demonstrated that A Number of Emerging
    Technologies are Ready for Production (e.g.,
    GMPLS Can be a Basis for Production Services)

19
Summary Optical Services Baseline 5 Years
20
Summary Optical Technologies Baseline 5 Years
21
Summary Optical Interoperability Issues Baseline
5 Years
22
OMNInet Key Themes and Issues
  • A Key Goal Is Enhancing Service Layer
    Abstractions and Enabling Direct Manipulation of
    Core Optical Resources
  • Major Improvements Over Centralized Control of
    Core Resources Via High Distributed Control
  • Decentralization Applications Can Directly
    Control Lightpaths
  • Advanced Dynamic Lightpath Provisioning Based on
    Controllable, Deterministic Optical Networks
  • Increased Integration Between Edge and Core
    Infrastructure
  • Agile Solid State Components (e.g, CMOS-Based,
    PIC-Based)
  • Availability of Cost-Effective Fiber and DWDM
    Equipment Provides for Highly Disruptive
    Price/Capability Ratios
  • Ref-- iGRID2005

23
OMNInet Key Research Issues
  • Research Basic Should Be Oriented Toward
    Difficult Fundamental Problems vs Specific
    Implementation Issues
  • Research Must Be Oriented to Long Term Objectives
  • Large Scale Research Testbeds Are Required To
    Investigate Grand Challenges of Advanced
    Networking
  • Research Environments Must Allow for Multiple,
    Different Experimental Approaches
  • Prototypes Are Key Resources
  • Research Projects Supporting Interdisciplinary
    Methods for Enabling Applications with Advanced
    Research Infrastructures Are Important
  • Communications Infrastructure Research Funding is
    Required

24
Sheridan, Evanston
New Testbed Site Fiber
350 E. Chicago
710 North Lake Shore Drive
Core Node
111 North Canal
1940 West Taylor
600 South Federal
25
World Of Tomorrow 2005
i
Grid 2oo5
T H E G L O B A L L A M B D A I N T E G R A T
E D F A C I L I T Y
  • September 26-30, 2005
  • University of California, San Diego
  • California Institute for Telecommunications and
    Information Technology Cal-(IT)2
  • United States

Co-Organizers Tom DeFanti, Maxine Brown
Write a Comment
User Comments (0)
About PowerShow.com
