Title: final project


1

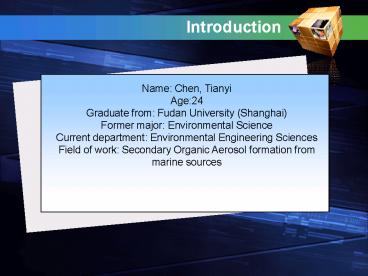

Introduction
2
Aerosol Mass Spectrometry (AMS)for atmospheric
particle research
  • Tianyi Chen

3
Contents
Introduction
1
Measurement approach
2
Characterization of particles
3
Example application
4
4
1 Introduction
Why do we care about atmospheric
particles?
  • Tiny clumps of liquid or solid material with
    aerodynamic diameters between 3 and 1000 nm
  • Retention time ranges from minutes to weeks

http//www.pnl.gov/atmospheric/research/aci/images
/aerosol_clouds.jpg
https//www.feelgoodnow.com/images/lung_infection.
jpg
http//www.publicland.ca/images/atvandorvphotogall
ery/peggyscove1.jpg
http//www.kriyayoga.com/photography/photo_techniq
ue/aerial_photo_haze-dsc04565-640.jpg
5
Scientific challenge
  • Wide range Three modes
  • Nucleation mode
  • Accumulation mode
  • Coarse mode
  • Characterization of physical and chemical
    properties
  • Atmospheric scientist sizechemistry
  • Health scientist surface areasurface
    composition


6
MS to meet the challenge
Major Types of MS
Use thermal vaporization followed by various
ionization techniques
Use laser to vaporize and ionize individual
atmospheric particles
7
What is mass spectrometer ?
  • A mass spectrometer determines the massto-charge
    ratio (m/z) of gas-phase ions by subjecting them
    to known electric or magnetic fields and
    analyzing their resultant motion.
  • Analysis by MS does not require
  • Chemical modification of the analyte
  • Any unique or specific chemical properties
  • In theory, MS is capable of measuring any
    gas-phase molecule that carries a charge

8
Differential Pump
Why?
See Aerosol Tech P21
9
Where are we?
10
One way of ionization--Electron Ionization
  • Hot filament giving off electrons
  • Accelerated by a potential difference towards the
    anode
  • Interact with the gaseous molecules in their path
    (Do not impact them)

70 eV
What characteristic of the electron can we change
to try to improve the results of ionization?
http//www.colorado.edu/chemistry/chem5181/Lecture
s07/2007_MS8_Ionization_I.pdf
11
Advantages and disadvantages of EI
  • For molecular weight info, chemical
    ionization (CI) is used. So, EI and CI are
    always used together.

12
Other ways of ionization
  • Chemical Ionization (CI)
  • Electrospray (ESI) / Nanospray
  • Desorption Techniques
  • Fast Atom Bombardment (FAB)
  • Matrix-Assisted Laser Desorption/Ionization
    (MALDI)
  • DESI / DART
  • Ionization for Elemental Analysis
  • Thermal Ionization Source
  • Spark Source
  • Glow Discharge
  • Inductively-Coupled Plasma (ICP)

Q why are so many ionization techniques used in
MS?
13
Ionization goals
No sigle method can achieve all the goals
14
Where are we?
15
One of Mass analyzer--Quadrupoles
  • Continuous introduction of ions into analyzer
  • Transmit only specific m/z value to detector
  • m/z determination based on band-pass filtering
  • Based on time-vary, RF fields

16
Quadrupoles
  • a is proportional to U/m
  • q is proportional to V/m

Narrow mass range
17
Quadrupoles m/z scanning
18
Features of Quadrupole
  • Maximum m/z 4,000
  • Resolution 3,000
  • Quadrupoles are low resolution instruments
  • Usually operated at Unit Mass Resolution
  • Small, lightweight
  • Easy to couple with chromatography
  • Can be used in MS/MS mode

19
Other Mass analyzers
  • Time-of-Flight
  • Magnetic sector
  • Ion traps
  • FTICR

20
Comparison of different analyzer
21
Where are we?
22
Detectors
  • High amplification
  • Fast time response
  • Low noise
  • High collection efficiency
  • Low cost
  • Narrow distribution of responses
  • Same response for all masses
  • Large dynamic range
  • Long term stability
  • Long life
  • Mounted outside of the vacuum if possible

23
2 Measurement approach
Focusing of beams
Detection scheme
Particle sizing
Instrument overview
24
Instrument overview I
A
http//cires.colorado.edu/jimenez/ams.htmlAerodyn
e-AMS
Thermally vaporized and EI 1E-5 pa 600oC
  • Chopper position
  • Close no beam through
  • Open 100 transmission
  • Chopped 1-4 duty cycle

25
Instrument overview II
B
  • Three types of AMS (only different in detector)
  • Q-AMS TOF-AMS HR-TOF-AMS
  • Modes of operation
  • Mass spectrum (MS) mode
  • Chopper in open position
  • ensemble averaged MS of sample (1300m/z)
  • Particle Time of Flight (PTOF) mode
  • Steps through 15-20 preset ion fragment masses
  • Jump mass spec (JMS) mode for high R
  • 10 to 20 m/z selected and qudrupole tuned by
    jumping between them instead of scanning the
    rest.

C
26
Focusing of beams
  • Beam gets wider for non-spherical particles,
    which needs correction.

27
Particle sizing I
  • Velocity is determined by flight time between
    chopper and vaporizer surface
  • Particle arrival is indicated by burst of ion
    signal at selected m/z after a particle
    size-dependent delay from the opening of the
    chopper
  • Velocity converted to vacuum aerodynamic
    diameters (using relation determined by
    polystyrene latex size standards)

signalK mass size distribution is mass-weighted
28
Particle sizing II
29
Particle sizing III
30
Detection scheme
To carry out ionization without plasma chemical
charge transfer matrix effects which can create
significant difficulty for quantitative analyses
of combined laser vaporization/ionization mass
spectral data, one method is to separate
vaporization and ionization
  • WHY EI?
  • linear and reproducible technique
  • universal ionization method

particles are flash vaporized on a resistively
heated porous tungsten surface and the vapor is
ionized by EI
31
3 Characterization of properties
32
Determination of chemical composition
  • Most parent molecules yield AMS spectra similar
    to NIST
  • Some are different but the difference from NIST
    spectra is repeatable and constant
  • Aliphatic organic molecules (same fragmentation
    different intensity)
  • Di- and poly-carboxylic acids (Thermally induced
    decarboxylation and dehydration with significant
    signals at m/z 18 (H2O), 28 (CO), and 44 (CO2))

33
Quantification of chemicals
  • Csmass concentration of some chemical species
  • MWNO3molecular weight of NO3
  • RIEsrelative ionization efficiency
  • (Usually 1.4 for organic molecules and 1.1, 1.15,
    and 3.56 for NO3, SO4, and NH4 moieties)
  • Qvolumetric flow rate
  • NA---Avogadros number
  • Is- detection ion rate
  • CEs---collection efficiency (EsEbEL)
  • IENO3--- ionization efficiency for NO3

Esshape-related collection losses at vaporizer
from inefficient focusing on non-spherical
solid Eb--- due to bouncing of less sticky
Particle before vaporization EL--- loss in inlet
34
Instrument Intercomparisons
InorganicAMS vs PILS/IC
35
Instrument Intercomparisons
OrganicAMS vs OC/EC
36
Aerosol Size Distributions
internally mixed
sulfate (m/z 48, 64) nitrate (m/z30) oxygenated
organics (m/z 44) hydrocarbon-like organics (m/z
57)
Small particles have more hydrocarbon-like
organics
  • dvaaerodynamic diameter in vacuum
  • dvevolume equivalent diameter

37
Aerosol Morphology
  • The non-spherical
  • particle has the
  • same dve as the
  • small sphere
  • Three particles of
  • identical material
  • Density
  • the non-spherical
  • particle has the
  • same dve as the
  • larger sphere

dva lt dve
38
Aerosol Density
  • AMS and DMA sizing measurements of the same
    particles can be combined together to obtain
    particle effective densities which are a
    function of both the true density and the shape
    of the particle

fractal dimension of a particle using
themassmobility relationship
39
4 Example applications of the AMS
A
  • Lab studies

SOA from a-pinene and 1,3,5-TMB
Polymerization can be detected by other methods,
but not AMS because of thermal decomposition
In ambient its higher due to more aging (more
COOH groups)
40
Source characterization
B
chasing a bus
more similar
41
Field study
C
Ambient air (urban vs rural)
strong m/z 57 peak and the prominent CH2 ion
series characteristic of hydrocarbon species
More small particles Less small particles
42
Hope you enjoy it
Thank You !
