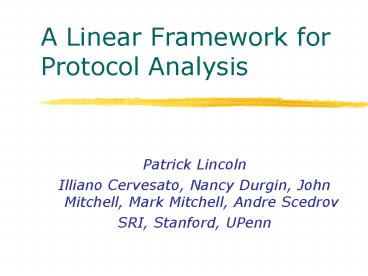

A Linear Framework for Protocol Analysis

• Patrick Lincoln
• Illiano Cervesato, Nancy Durgin, John Mitchell,
  Mark Mitchell, Andre Scedrov
• SRI, Stanford, UPenn

2
Outline The Nonce is the thing

• Multiset rewriting model
• Undecidability
• Previous results, folklore, easy preliminaries
• Main result security in restricted fragment
• No-nonces
• Exponential tight bound on steps
• PSPACE-hardness of security decision problem

3
A notation for inf-state systems

• Define protocol, intruder in minimal framework
• Disadvantage need to introduce new notation

4
Protocol Notation

• Non-deterministic infinite-state systems
• Facts
• F P(t1, , tn)
• t x c f(t1, , tn)
• States F1, ..., Fn
• Multiset of facts
• Includes network messages, private state
• Intruder will see messages, not private state

Multi-sorted first-order atomic formulas
5
State Transitions

• Transition
• F1, , Fk ?? ?x1 ?xm. G1, , Gn
• What this means
• If F1, , Fk in state ?, then a next state ? has
• Facts F1, , Fk removed
• G1, , Gn added, with x1 xm replaced by new
  symbols
• Other facts in state ? carry over to ?
• Free variables in rule universally quantified
• Pattern matching in F1, , Fk can invert
  functions
• Linear Logic

6
Finite-State Example
a
q1
a
a
b
q0
q3
b
b
a
b
q2

• Predicates State, Input
• Function ?
• Constants q0, q1, q2, q3, a, b, nil
• Transitions State(q0), Input(a ? x) ?
  State(q1), Input(x)
• State(q0), Input(b ? x) ?
  State(q2), Input(x)
• ...

b
7
Simplified Needham-Schroeder

• Predicates
• Ai, Bi, Ni
• -- Alice, Bob, Network in state i
• Transitions
• ?x. A1(x)
• A1(x) ?? N1(x), A2(x)
• N1(x) ?? ?y. B1(x,y)
• B1(x,y) ?? N2(x,y), B2(x,y)
• A2(x), N2(x,y) ?? A3(x,y)
• A3(x,y) ?? N3(y), A4(x,y)
• B2(x,y), N3(y) ?? B3(x,y)
• picture next slide

• A ? B na, AKb
• B ? A na, nbKa
• A ? B nbKb
• Authentication
• A4(x,y) ? B3(x,y) ? yy

8
Sample Trace

• ?x. A1(x)
• A1(x) ? A2(x), N1(x)
• N1(x) ? ?y. B1(x,y)
• B1(x,y) ? N2(x,y), B2(x,y)
• A2(x), N2(x,y) ? A3(x,y)
• A3(x,y) ? N3(y), A4(x,y)
• B2(x,y), N3(y) ? B3(x,y)

A1(na)
N1(na)
A2(na)
B1(na, nb)
A2(na)
N2(na, nb)
B2(na, nb)
A2(na)
B2(na, nb)
A3(na, nb)
N3( nb)
B2(na, nb)
A4(na, nb)
B3(na, nb)
A4(na, nb)
9
Common Intruder Model

• Derived from Dolev-Yao model 1989
• Adversary is nondeterministic process
• Adversary can
• Block network traffic
• Read any message, decompose into parts
• Decrypt if key is known to adversary
• Insert new message from data it has observed
• Adversary cannot
• Gain partial knowledge
• Guess part of a key
• Perform statistical tests,

10
Formalize Intruder Model

• Intercept and remember messages
• N1(x) ?? M(x) N2(x,y) ??
  M(x), M(y)
• N3(x) ?? M(x)
• Send messages from known data
• M(x) ?? N1(x), M(x)
• M(x), M(y) ?? N2(x,y), M(x), M(y)
• M(x) ?? N3(x), M(x)
• Generate new data as needed
• ?x. M(x)
• Highly nondeterministic, same for any
  protocol

11
Attack on Simplified Protocol

• ?x. A1(x)
• A1(x) ? A2(x), N1(x)
• N1(x) ? M(x)
• ?x. M(x)
• M(x) ? N1(x), M(x)
• N1(x) ? ?y. B1(x,y)

A1(na)
N1(na)
A2(na)
A2(na)
M(na)
A2(na)
M(na), M(na)
N1(na)
A2(na)
M(na), M(na)
B1(na, nb)
A2(na)
M(na), M(na)
Continue man-in-the-middle to violate
specification
12
Protocol Analysis is Undecidable

• Even and Goldreich 1983
• Heintze and Tygar 1996 (weaker result)
• Millens clarification
• Post Correspondence Problem
• Good guy adds domino to end of sequence
• If top and bottom read the same, spill secret
• A -gt B empty, emptyk
• B -gt A X,Yk -gt (X Z11), (Y Z12)k
• A -gt B X,Xk -gt if X!empty, send SECRET

13
But what if we disallow cons?

• Without cons ( ), cannot directly encode post
  problems or Turing machine state
• But arbitrary numbers can also be used to encode
  undecidable problems, such as 2
  Counter machines
• C1, C2, Qk Encodes that state C1, C2, Q is
  reachable
• A-gtB 0,0,Qinitk
• B-gtA C1,C2,Qk -gt C11,C2,Q2k
• A-gtB C1,C2,Qfinalk -gt SECRET

14
But what if we disallow ints?

• Some protocols use successor
• A -gt B Noncek
• B -gt B Nonce 1k
• Successor (and implicit matching) is enough, so
  this is still undecidable

15
But what if we disallow that too?

• Some protocols use nested encryption
• A -gt B mk, Noncek
• Arbitrary depth encryption allows undecidability
• 2 counter machines
• A -gt B mk, mkkk, Qk
• State is Q, counters are 1 and 3.

16
So what is left?

• Fixed set of constants
• Nonces (but no succ, API is Gensym, ?)
• Fixed depth encryption (1 or 2 enough)
• Fixed number of arguments of message
• Everything fixed or constant, except nonces
• Nonces
• Implicit unboundedness (Gensym is fresh)
• But no obvious way to exploit this

17
Still undecidable
18
Turing Machine

• Main Idea Cooks Theorem
• but use nonces instead of propositions

Start 0 0 1 q4 0 1 1 End
Start 0 0 q5 0 0 1 1 0 End
Start 0 0 0 q6 0 1 1 0 0 End
19
Turing Machine
Constant (3) piece o f state at time N determines
state of cell at time N1
1 q4 0
0
Start 0 0 1 q4 0 1 1 End
Start 0 0 q5 0 0 1 1 0 End
Start 0 0 0 q6 0 1 1 0 0 End
20
Turing Machine

• Predicates
• Cell(neighbor, symbol, neighbor) -- contents of
  tape cell
• Next(cell, cell) --
  keep cells in order
• Constants
• q0, q1, q2, --
  finite set of states
• c0, ceot
  -- initial tape cells
• 0, 1, b
  -- tape symbols

21
Turing Machine
Turing machine move

• Cell(a,da, b), Cell(b,db, c), Cell(c,dc, d),
  Next(b,b) ?? ?c. Next(c,c),
  Cell(b,F(da,db,dc),c)
• Next(a,a), Cell(a,Start,b)
  ??
  ?a,b Next(a,a), Cell(a,Start, b)
• Next(a,a), Cell(a,End,b)
  ?? ?b, c
  Cell(a,0, b), Cell(b, End, c)
• ?? ?a,a,b,c,d,e Cell(a,Start,b),
  Cell(b,Qinit,c), Cell(c, 0, d),
  Cell(d,End,e), Next(a,a)
• Cell(a,Qfinal,b) ?? Broadcast(Secret)

Copy to Next Time
Extend Tape
Start and End
22
Turing Machine discussion

• To prevent malicious alteration,
  Need to encrypt all messages will shared key
• Cell(a,da, b) k
• To allow unbounded replay,
  Need to encrypt all messages will spilled key
  k2
• Cell(a,da, b) k k2

23
Undecidability main lemma

• Define for cell c, time(c) and distance(c)
• If TM is deterministic, any messages describing
  cells with same time and distance have the same
  content

24
And what about without nonces?

• Now everything is finite and bounded, and thus
  decidable. But how hard?

25
Exponential Runs Required

• A-gtB x0,x1, x2, x3, 0 k
• ?? x0,x1, x2, X3, 1k
• A-gtB x0,x1, x2, 0,1 k
• ?? x0,x1, x2, 1, 0 k
• A-gtB x0,x1, 0, 1, 1 k
• ?? x0,x1,1, 0, 0 k
• A-gtB 1,1,1,1, 1 k
• ?? Broadcast( SECRET )

26
Without Nonces

• Simulate space-bounded TM in linear space
• PSPACE-hard
• Entire search space is bounded and can be
  searched in exponential time

27
Lessons

• Security protocols are hard to analyze
• Many scientific, engineering challenges
• Model intruder, properties of cryptography
• What not to try

28
Sources of Problems

• Needham-Schroeder Low-Exp-RSA
  Single DES
• Protocol Interaction Cryptography
• other sources exist
•
  (timing, power, radiation, traffic, )
•
