Title: Space Ops 2006

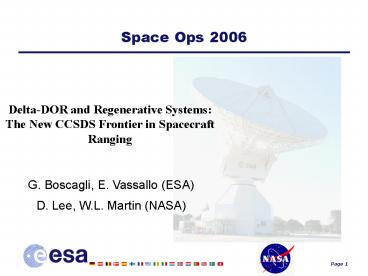

1
Space Ops 2006
Delta-DOR and Regenerative Systems The New CCSDS
Frontier in Spacecraft Ranging
G. Boscagli, E. Vassallo (ESA) D. Lee, W.L.
Martin (NASA)
2
Current ranging techniques
  • Most commonly used ranging technique for
    interplanetary missions is the hybrid ranging
    system
  • A ranging tone (or clock) is modulated by an
    agency specific sequential code
  • The composite ranging signal phase modulates the
    residual carrier
  • The transparent on-board transponder performs
    phase demodulation and re-modulation
  • Ranging signal in the transponder is only
    wide-band filtered and level controlled (AGC)
  • The downlink signal contains the ranging signal,
    the uplink noise and also the telecommand echo

3
Current ranging techniques
  • Therefore, a path loss proportional to 1/r4
    (where r is the distance) is incurred plus the
    sharing and intermodulation losses due to
    simultaneous command
  • Very simple transponder ranging channels are
    needed
  • Interoperability and cross support by other
    Agencies is made possible by imposing a limited
    number of transponder specs (bandwidth, phase
    linearity, group delay stability, etc.)

4
The need for different techniques
  • New interplanetary missions have more and more
    stringent requirements also from orbit
    determination point of view
  • Gravity assists or orbit insertions demands very
    accurate orbital knowledge
  • Radio science requirements performed over the TTC
    channel have more demanding ranging or Doppler
    accuracy requirements
  • Missions to farther away planets suffer from
    higher path losses
  • Ranging regeneration and delta-DOR (Differential
    One-way Ranging) can cope with new mission
    requirements
  • Regeneration of the ranging signal on board
    eliminates uplink noise and telecommand echo

5
Regenerative PN ranging
  • The ranging SNR at the station is therefore
    proportional to 1/r2
  • Substantial gains (up to 30 dB) can therefore be
    achieved to obtain better ranging accuracy or
    increase the telemetry return or both
  • Regeneration of the current sequential ranging
    codes is impractical (sequences are transmitted
    for periods of time inversely proportional to the
    SNR)
  • Solution is to use a set of pseudo-noise ranging
    codes which allows parallel acquisition to speed
    up process
  • Regenerative transponders require complete
    ranging channel (ranging clock and codes) be
    standardized if interoperability is to be
    achieved
  • CCSDS has tasked the Ranging WG to develop a
    regenerative PN ranging standard encompassing
    both stations and spacecraft specifications

6
CCSDS regenerative PN ranging sequences
  • True PN codes of the Tausworthe family
  • A Pseudo-Noise (PN) sequence is a periodic binary
    (?1) sequence whose periodic autocorrelation
    function, over one period of length L, has peak
    value L and has all L 1 off-peak values
    equal to 1.
  • The Tausworthe codes are Pseudo-Noise (PN)
    ranging codes whereby the ranging sequence is a
    logical combination of the so-called range
    clock-sequence and several component Pseudo-Noise
    (PN) sequences. The range clock sequence is a
    periodic binary (?1) sequence of period 2 (just
    the alternating 1 and 1 sequence.)
  • PN-Like codes of the Stiffler family
  • The term Pseudo-Noise-Like (PNL) ranging is
    used in a broader sense to denote any
    ranging-sequence system in which the ranging
    sequence is a logical combination of the
    range-clock sequence and several periodic binary
    (?1) sequences that are chosen to give desirable
    correlation properties to the ranging sequence
    but do not satisfy the criteria for Pseudo-Noise
    sequences

7
CCSDS Tausworthe sequences
  • Starting point Tausworthe (6-components code)
  • C1 1 1 (the range clock)
  • C2 1 1 1 1 1 1 1
  • C3 1 1 1 1 1 1 1 1 1 1 1
  • C4 1 1 1 1 1 1 1 1 1 1 1 1 1 1
    1
  • C5 1 1 1 1 1 1 1 1 1 1 1 1 1 1
    1 1 1 1 1
  • C6 1 1 1 1 1 1 1 1 1 1 1 1 1 1
    1 1 1 1 1 1 1 1 1
  • Component sequences C2, C3, C4, C5 and C6 are all
    PN sequences with relatively prime periods 7, 11,
    15, 19 and 23, respectively.
  • The ranging-sequence chip is a 1 if and only if
    C1 has a 1 at that position or if all five of
    the sequences C2, C3, C4, C5 and C6 have a 1 at
    that position, or both.
  • The range clock is strongly correlated with the
    ranging sequence, which facilitates locking on to
    the range clock at the receiver.
  • The period of the ranging sequence is L 2 ?
    7 ? 11 ? 15 ? 19 ? 23 1,009,470 chips.

8
Basic Tausworthe code
9
Tausworthe T2 and T4 codes
  • The second option under investigation is the
    weighted-voting (?2) Tausworthe ranging code
    (T2)
  • made up of the same six binary (?1) binary
    periodic component sequences as the first
    option
  • with a different combination algorithm based on
    giving ?2 votes to the clock component C1
  • The third option is the weighted-voting
    Tausworthe ranging code (T4) obtained from option
    2 by giving 4 votes instead of 2 to the ranging
    clock
  • The number of 1s and 1s in these sequences is
    not balanced, resulting in a d.c. component
    useless for the code acquisition and that may
    affect the carrier tracking performances
  • The key to elimination of imbalance is the fact
    that the negative of a real sequence has the same
    autocorrelation function as the original sequence
  • Using the negatives of the PN sequences C3, C4
    and C6 balanced weighted-voting Tausworthe (T2B
    and T4B) are obtained

10
Tausworthe T2 code
11
CCSDS Stiffler sequences
  • The first Stiffler sequence being considered for
    CCSDS standardization is the scrambled
    weighted-voting (v6) Stiffler ranging code (SS6)
    given by


  • where
  • ?6 is the number of votes given to the ranging
    clock component s1(t)
  • si(t) are the outputs of a 20-bit counter with
    increment d (221 1)/3 699051
  • The second option is the scrambled
    weighted-voting (v8) Stiffler ranging code (SS8)
    generated as for the first option but by giving
    v8 votes to the ranging clock component s1(t)
  • The resulting ranging sequences are periodic with
    length L 220 1,048,576 chips

12
Stiffler sequence generation
13
Ranging sequences performance comparison
  • Tausworthe assumptions
  • Six parallel correlators used for acquisition
  • range-clock frequency fRC 1 MHz
  • loop integration time of 10 s
  • Pe2 0.999 and 2EC /N0 -33 dB .
  • Stiffler assumptions
  • Four parallel correlators used for acquisition
  • range-clock frequency fRC 1 MHz
  • loop integration time of 10 s
  • Pe2 0.999 and 2EC /N0 -33 dB.

14
Ranging sequences performance comparison
  • Normalized acquisition time t (relative to the
    acquisition time Ka of antipodal sequences
    having unity in-phase percentage correlation)
  • being Pe2 (0.999) the probability of
    successful acquisition at a chip signal-to-noise
    ratio 2EC /N0 (-33 dB) ? Ka ? 30000
  • Standard deviation of measurement error due to
    thermal noise ?

15
Tausworthe ranging performance
16
Stiffler ranging performance
17
PN ranging performance with TC/TM
  • Mutual interference with simultaneous TC/TM
    simulated
  • Conventional low-rate telecommand signal
    (PCM/NRZ-L/PSK with 16 kHz subcarrier)
  • Low-rate (PCM/NRZ-L/PSK) and medium rate
    (Bi-Phase/PM) telemetry signals
  • Bi-Phase/PM telemetry data rate selected close to
    PN range clock component (worst-case)
  • Both semi-analytical and Monte-Carlo techniques
  • Both ideal and real (filtered, saturated)
    transponder channels
  • Both (half) sine-wave and square-wave formats for
    ranging clock
  • 2 Mcps ranging code (1 MHz ranging clock)

18
PN ranging interference to TC/TM
  • Example medium-rate TM (ideal channel,
    sine-wave)

The table shows the good agreement in terms of
BER results between the MC (Montecarlo) and the
SA (Semi-Analitical) approach
19
PN ranging interference to TC/TM(Ideal Channel)
  • Negligible degradation to TC or low-rate TM
  • In case of medium-rate TM
  • As general rule the code with strongest clock
    component (for instance T4 and S8) induce lower
    degradation. Ranging codes T2 and T2B give rise
    to largest losses, followed by code SS6 the
    other codes are practically equivalent
  • The loss of the telemetry system due to the
    interference of the ranging system becomes larger
    as the ranging modulation index increases
  • There is not clear difference in terms of BER
    degradation between sine or square-wave ranging
    shaping for the same ranging power
  • In general the loss due to the ranging signal
    lies in the range 00.7 dB both for sine or
    square-wave ranging shaping and for a peak
    modulation index lower than 0.7 rad
  • If the chip rate is equal to or very close to the
    TM Bi-Phase rate or its multiple, there is a
    strong influence between the Stiffler ranging
    sequence and the telemetry signal and the TM BER
    depends on the transmitted telemetry bits.
    However, outside such situation this behavior
    disappears.

Note in case of real channel the contribution
of the non linearities masks the effects of the
interference due to the PN ranging, in particular
for the code with the strongest clock component.
20
PN ranging interference to TC/TM(Ideal Channel)
Note JPL code correspond to T code in table at
page 18
21
PN ranging interference to TC/TM(Ideal Channel)
22
PN ranging interference to TC/TM(Ideal Channel)
23
TM interference to PN ranging
  • As general rule the code with strongest clock
    component (such as T, T4 and S8) give rise to
    faster clock acquisition but slower phase
    acquisition
  • Easier clock acquisition is obtained for T,
    S8/SS8 and T4/T4B (very similar), S6/SS6 and
    T2/T2B
  • The minimum ranging phase acquisition times are
    obtained for T2/T2B, S6/SS6, T4/T4B, S8/SS8 and
    finally T
  • If the chip rate is equal to or very close to the
    TM Bi-Phase rate or its multiple, there is a
    strong influence between the Stiffler ranging
    sequence and the telemetry signal and the
    performance of the Stiffler codes highly depends
    on the telemetry bit sequence. However, outside
    such situation this behavior disappears.
  • While all Tausworthe codes show practically the
    same loss (about 0.7 dB _at_ BER10-6), the Stiffer
    codes show a slightly smaller loss (about 0.4 dB
    _at_ BER10-6).

24
TM interference to PN ranging Acquisition
probability
P(e)
Ec/No
Note Lo is the integration time and Lr is the
sequence length
25
TM interference to PN rangingAcquisition
probability
P(e)
Ec/No
Note Lo is the integration time and Lr is the
sequence length
26
PN ranging conclusions
  • From these results, the best choice for the
    ranging code seems to be code T4 or T4B
    however, difference in performance (also with T)
    is generally modest
  • Codes T, T4B, T4 and even T2/T2B can be generated
    by same hardware with simple re-programming
  • Future work
  • Complete missing simulations
  • Perform hardware tests on ESAs BepiColombo
    breadboard
  • Perform hardware tests on NASAs New Horizon
    spacecraft
  • Select the code(s) for CCSDS standard and publish
    the new standard by Summer 2008

27
Delta-DOR
  • Delta-DOR (Delta Differential One-way Ranging)
    determines the angular position of a spacecraft
    by correlating the received signal at two ground
    stations
  • The ?DOR measurements provide an independent
    navigation measurement of spacecraft position
    apart from Doppler and sequential ranging, and
    improve trajectory determination accuracy in many
    cases.
  • When used in conjunction with ranging and
    Doppler, delta-DOR can reduce the amount of time
    needed to determine the spacecraft position after
    a trajectory maneuver.
  • Missions such as Mars Odyssey, the Mars
    Exploration Rovers (MER), Mars Express, and Deep
    Impact have all utilized and benefited from
    Delta-DOR measurements.

28
Delta-DOR principle
29
Delta-DOR measurements
  • The received signal (from either a spacecraft or
    a quasar nearby) is recorded simultaneously at
    two different antenna separated by a baseline B
  • Measurements conducted on the spacecraft and the
    radio source in nearby angular position are then
    differenced to remove the common effects of
    station clock offsets, instrument group delay
    errors, and most media effects
  • By correlating the signals recorded by the two
    antennas, the differential group delay ? between
    the two signals can be determined
  • The delay difference ? is then used to calculate
    the path length difference ?R between the source
    and the two antennas
  • Using precise knowledge of the baseline B and ?R,
    the angle ? can be calculated
  • The spacecraft transmits widely separated
    sinusoidal tones (DOR tones) around the carrier.
    Using a large bandwidth is important because
    errors due to receiver noise and instrumental
    phase ripple are inversely proportional to the
    bandwidth.

30
CCSDS delta-DOR
  • CCSDS standardization would allow for ?DOR
    measurements to be made between ground stations
    of different space agencies
  • It is envisioned that the CCSDS ?DOR standard
    will consist of the following sections
  • 1.        Spacecraft DOR tone generation
    Specify DOR tone span bandwidths, number of DOR
    tones, frequency bands to be used, and waveform
    type.
  • 2.        Radio star catalog Specify list of
    quasars to be used as reference sources and their
    angular positions.
  • 3.        Raw Data File Transfer Specify the
    format of the file will containing the sampled
    received signal from a particular ground antenna.
    These files will be transferred to a common
    location for correlation and processing.
  • 4.        ?DOR Observables Transfer Specify the
    format of the DOR measurement results which can
    be used by the navigation team
  • NOTE Section 1 exists already.
Write a Comment
User Comments (0)
About PowerShow.com
