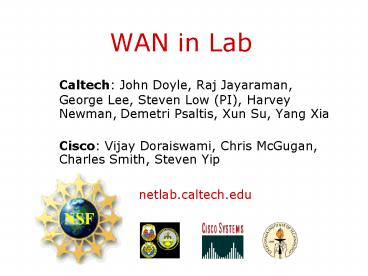

WAN in Lab

1
WAN in Lab

• Caltech John Doyle, Raj Jayaraman, George Lee,
  Steven Low (PI), Harvey Newman, Demetri Psaltis,
  Xun Su, Yang Xia
• Cisco Vijay Doraiswami, Chris McGugan, Charles
  Smith, Steven Yip

netlab.caltech.edu
2
Key Personnel

• Steven Low, CS/EE
• Harvey Newman, Physics
• John Doyle, EE/CDS
• Demetri Psaltis, EE
• Cisco
• Vijay Doraiswami
• Chris McGugan
• Charles Smith
• Steven Yip

• Raj Jayaraman, CS
• George Lee, CS
• Xun Su, Physics
• Yang Xia, Physics
• 2 grad students
• 3 summer students
• Cisco engineers

3
Spectrum of tools
log(cost)
log(abstraction)
math
simulation
emulation
live nk
WANiLab
we use them all
4
Spectrum of tools
5
Goal

• State-of-the-art hybrid WAN
• High speed, large distance
• 2.5G ? 10G
• 50 200ms
• Wireless devices connected by optical core
• Controlled repeatable experiments
• Reconfigurable evolvable
• Built in monitoring capability

6

• WAN in Lab
• 5-year plan
• 6 Cisco ONS15454
• 4 routers
• 10s servers
• Wireless devices
• 800km fiber
• 100ms RTT

V. Doraiswami (Cisco) R. Jayaraman (Caltech)
7

• Hybrid Network
• Scenarios
• Ad hoc network
• Cellular network
• Sensor network
• How optical core
• supports wireless
• edges?

X. Su (Caltech)
8
Experiments

• Transport network layer
• TCP, AQM, TCP/IP interaction
• Wireless hybrid networking
• Wireless media delivery
• Fixed wireless access
• Sensor networks
• Optical control plane
• Grid computing
• UltraLight

9
Unique capabilities

• WAN in Lab
• Capacity 2.5 10 Gbps
• Delay 0 100 ms round trip
• Delay 0 400 ms round trip
• Configurable evolvable
• Topology, rate, delays, routing
• Always at cutting edge
• Flexible, active debugging
• Passive monitoring, AQM
• Integral part of RA networks
• Transition from theory, implementation,
  demonstration, deployment
• Transition from lab to marketplace
• Global resource
• Part of global infrastructure UltraLight led by
  Newman

10
Network debugging

• Performance problems in real network
• Simulation will miss
• Emulation might miss
• Live network hard to debug
• WAN in Lab
• Passive monitoring inside network
• Active debugging possible

11
Passive monitoring
Fiber splitter

• No overhead on system
• Can capture full info at OC48
• UofWaikatos DAG card captures at OC48 speed
• Can filter if necessary
• Disk speed 2.5Gbps40/1500 66Mbps
• Monitors synchronized by GPS or cheaper
  alternatives
• Data stored for offline analysis

D. Wei (Caltech)
12
Passive monitoring
Web100, MonALISA
Fiber splitter
Server
Server
D. Wei (Caltech)
13
UltraLight testbed
UltraLight team (Newman)
14
Status

• Hardware
• Optical transport design finalized
• IP infrastructure design finalized (almost)
• Wireless infrastructure design finalized
• Price negotiation/ordering/delivery summer 04
• Software
• Passive monitoring summer student
• Management software 2005 -
• Physical lab
• Renovation to be completed by summer 04

15
Status
2007
2006
2005
2003
2004
16
CS Dept Jorgensen Lab
WAN in Lab
G. Lee, R. Jayaraman, E. Nixon (Caltech)
17
Summary

• Testbed driven by research agenda
• Rich and strong networking effort
• Integrated approach
• theory implementation experiments
• A network that can break
• Integral part of real testbeds
• Part of global infrastructure UltraLight led by
  Harvey Newman (Caltech)
• Integrated monitoring measurement facility
• Fiber splitter passive monitors
• MonALISA
