Chapter 17 GUI Programming Component Layout, Additional GUI Components

1

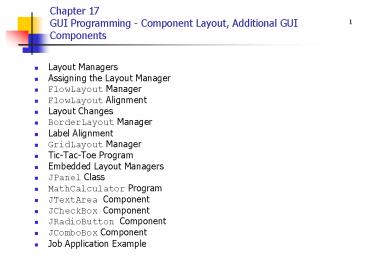

Chapter 17GUI Programming - Component Layout,
Additional GUI Components

• Layout Managers
• Assigning the Layout Manager
• FlowLayout Manager
• FlowLayout Alignment
• Layout Changes
• BorderLayout Manager
• Label Alignment
• GridLayout Manager
• Tic-Tac-Toe Program
• Embedded Layout Managers
• JPanel Class
• MathCalculator Program
• JTextArea Component
• JCheckBox Component
• JRadioButton Component
• JComboBox Component
• Job Application Example

2
Layout Managers

• Layout managers automate the positioning of
  components within containers.
• They free the programmer from the difficult task
  of figuring out the space needed for each
  component and the pixel coordinate positions for
  each component.
• The layout manager looks at the size of its
  container and the sizes of the container's
  components. It then tries to fit the components
  neatly into the container.
• If a user resizes the window, the layout manager
  takes that into account and adjusts the layout
  accordingly.
• If a programmer adjusts a component's size (e.g.,
  by changing a label's font size), the layout
  manager takes that into account and adjusts the
  layout accordingly.

3
Layout Managers

• The four most common layout manager classes
• FlowLayout
• BorderLayout
• GridLayout
• GridBagLayout
• All of these layout manager classes are in the
  java.awt package so import that package.

4
Assigning the Layout Manager

• To assign a particular layout manager to a JFrame
  window, call the setLayout method as follows
• setLayout(new ltlayout-manager-classgt())
• In the above code template, replace
  ltlayoutmanagerclassgt by one of the layout
  manager classes (e.g., FlowLayout, BorderLayout,
  GridLayout).
• If setLayout is not called, then the BorderLayout
  manager is used (because that's the default
  layout manager for a JFrame window).

5
FlowLayout Manager

• The FlowLayout class implements a simple
  one-compartment layout scheme that allows
  multiple components to be inserted into the
  compartment.
• When a component is added to the compartment, it
  is placed to the right of any components that
  were previously added to the compartment.
• If there is not enough room to add a component to
  the right of previously added components, then
  the new component is placed on the next line
  (i.e., it "flows" to the next line).

6
FlowLayout Alignment

• By default, components are placed in a FlowLayout
  container using top, center alignment.
• There's no way to change the vertical alignment.
  But there is a way to change the horizontal
  alignment. To do so, insert one of the FlowLayout
  alignment constants (FlowLayout.LEFT,
  FlowLayout.CENTER, FlowLayout.RIGHT) in the
  FlowLayout constructor call. For example, here's
  how to specify left alignment
• setLayout(new FlowLayout(FlowLayout.LEFT))

7
Layout Changes

• Normally, setLayout is called just once - when
  the program initially lays out its components.
  But if there's a need to dynamically adjust the
  layout scheme, call setLayout again and then call
  validate. For example, if you need to move a
  container's components to the right, reassign the
  layout like this
• setLayout(new FlowLayout(FlowLayout.RIGHT))
• validate()
• The validate method causes the layout manager to
  regenerate the component layout. If you attempt
  to change your windows layout in some way (after
  the window is initially displayed with
  setVisible(true)), you'll need to call validate
  to make the change take effect.
• These method calls attempt to change the layout
• setLayout - adjust the layout scheme
• add - add a component
• remove remove a component
• setSize - change the window's size

8
BorderLayout Manager

• The BorderLayout manager provides five
  regions/compartments in which to insert
  components.
• The sizes of the five regions are determined at
  run time, and they're based on the contents of
  each region.
• Thus, if the west region contains a long label,
  the layout manager attempts to widen the west
  region.

• Likewise, if the west region contains a short
  label, the layout manager attempts to narrow the
  west region.

9
BorderLayout Manager

• More specifically, the sizes of the five regions
  are determined as shown below.

East's contents determine this divider's position.
West's contents determine this divider's position.
North's contents determine this divider's
position.
South's contents determine this divider's
position.
10
BorderLayout Manager

• If an outer region (North, South, East, West) is
  empty, it collapses so that it does not take up
  any space.
• For example
• What happens if the north region is empty?

• What happens if the east and south regions are
  both empty?
• What happens if the center region is empty?

11
BorderLayout Manager

• To add a component to a BorderLayout region, call
  the container's add method like this
• add(ltcomponentgt, ltregiongt)
• Replace ltcomponentgt by a component (a JLabel
  object, a JButton object, etc.) and replace
  ltregiongt by one of these named constants
• BorderLayout.NORTH, BorderLayout.SOUTH,
  BorderLayout.WEST, BorderLayout.EAST,
  BorderLayout.CENTER
• In the add method call, if the region argument is
  omitted, then the center region is used (because
  that's the default region).
• With a BorderLayout container, you can add only
  five components total, one for each of the five
  regions. If you add a component to a region that
  already has a component, then the new component
  overlays the old component.

12
AfricanCountries Program with Buttons

• import javax.swing.
• import java.awt.
• public class AfricanCountries extends JFrame
• private static final int WIDTH 325
• private static final int HEIGHT 200
• public AfricanCountries()
• setTitle("African Countries")
• setSize(WIDTH, HEIGHT)
• setLayout(new BorderLayout())
• setDefaultCloseOperation(EXIT_ON_CLOSE)
• add(new JButton("Tunisia"),
  BorderLayout.NORTH)
• add(new JButton("lthtmlgtSouthltbr
  /gtAfricalt/htmlgt"), BorderLayout.SOUTH)
• add(new JButton("Western Sahara"),
  BorderLayout.WEST)
• add(new JButton("Central African Republic"),
  BorderLayout.CENTER)
• add(new JButton("Somalia"),
  BorderLayout.EAST)

13
Label Alignment

• To specify a label's alignment within a
  BorderLayout region, instantiate the label with
  an alignment constant like this
• new JLabel(ltlabel's-textgt, ltalignment-constantgt)
• Replace ltalignment-constantgt by one of these
  named constants
• SwingConstants.LEFT, SwingConstants.CENTER,
  SwingConstants.RIGHT
• Here's an example that adds a center-aligned
  label to a BorderLayout north region
• add(new JLabel("Tunisia", SwingConstants.CENTER),
• BorderLayout.NORTH)

14
Label Alignment

• SwingConstants is an interface, defined in the
  javax.swing package.
• SwingConstants stores a set of GUI-related
  constants that are commonly used by many
  different GUI programs.
• To access a named constant in an interface,
  prefix it with the interface name. For example,
  to access the LEFT alignment constant, prefix
  LEFT with SwingConstants like this
• SwingConstants.LEFT.

15
GridLayout Manager

• The GridLayout manager lays out a container's
  components in a rectangular grid. The grid is
  divided into equal-sized cells. Each cell can
  hold only one component.
• To specify the use of a GridLayout manager for a
  particular container, call setLayout like this
• setLayout(new GridLayout(rows, cols, hGap, vGap))

of rows
Gap between columns, in pixels. Default value 0.
of columns
Gap between rows, in pixels. Default value 0.
16
Adding Components

• To add a component to one of the container's
  cells, call the add method like this
• add(ltcomponentgt)
• The GridLayout manager positions components
  within the container using left-to-right,
  top-to-bottom order. The first added component
  goes in the top-left-corner cell, the next added
  component goes in the cell to the right of the
  first component, etc.

17
GridLayout Manager

• Here's an example that displays a two-row,
  three-column table with six buttons
• setLayout(new GridLayout(2, 3, 5, 5))
• add(new JButton("1"))
• add(new JButton("2"))
• add(new JButton("3"))
• add(new JButton("4"))
• add(new JButton("5"))
• add(new JButton("6"))

vertical gap 5 pixels
horizontal gap 5 pixels
18
Specifying Number of Rows and Number of Columns

• Case 1
• If you know the number of rows and columns in
  your table and the table is completely filled in
  (i.e., there are no empty cells), call the
  GridLayout constructor with the actual number of
  rows and the actual number of columns.
• Case 2
• Sometimes, you might want a row-oriented display.
• If that's the case, call the GridLayout
  constructor with the actual number of rows for
  the rows argument and 0 for the columns argument.
• A 0 for the columns argument indicates that
  you're leaving it up to the GridLayout manager to
  determine the number of columns.

19
Specifying Number of Rows and Number of Columns

• Case 2 (continued)
• Assume that you assign a container's layout like
  this
• setLayout(new GridLayout(2, 0))
• Assume that you add 5 buttons to the container.
• Here's the resulting display

20
Specifying Number of Rows and Number of Columns

• Case 3
• Sometimes, you might want a column-oriented
  display.
• If that's the case, call the GridLayout
  constructor with the actual number of columns for
  the columns argument and 0 for the rows argument.
• Assume that you assign a container's layout like
  this
• setLayout(new GridLayout(0, 4))
• After adding 5 buttons to the container, here's
  the resulting display

21
Common Errors

• If you call the GridLayout constructor with 0's
  for both the rows and columns arguments, you'll
  get a compilation error i.e., this generates a
  compilation error
• setLayout(new GridLayout(0, 0))
• If you call the GridLayout constructor with
  non-0's for both the rows and columns arguments
  and your table is not completely filled, you may
  get unexpected results.
• For example, the previous slide's four-column
  window is not completely filled. Suppose you
  accidentally specify a value for the rows
  argument
• setLayout(new GridLayout(2, 4))
• After adding 5 components to the container,
  here's the resulting display

22
Tic-Tac-Toe Program
This program displays a 3x3 grid of blank
buttons. When the first blank button is clicked,
its label changes to an X. Subsequent clicked
blank buttons change their labels to O and X in
alternating sequence.

• import javax.swing.
• import java.awt.
• import java.awt.event.
• public class TicTacToe extends JFrame
• private static final int WIDTH 200
• private static final int HEIGHT 220
• // keeps track of whether it's X's turn or O's
  turn
• private boolean xTurn true
• //
• public TicTacToe()
• setTitle("Tic-Tac-Toe")
• setSize(WIDTH, HEIGHT)
• setDefaultCloseOperation(EXIT_ON_CLOSE)

23
Tic-Tac-Toe Program

• //
• // Create components and add to window.
• private void createContents()
• JButton button // re-instantiate this button
  and use
• // to fill entire board
• setLayout(new GridLayout(3, 3))
• for (int i0 ilt3 i)
• for (int j0 jlt3 j)
• button new JButton()
• button.addActionListener(new Listener())
• add(button)
• // end for j
• // end for i

24
Tic-Tac-Toe Program

• //
• // If user clicks a button, change its label to
  "X" or "O".
• private class Listener implements
  ActionListener
• public void actionPerformed(ActionEvent e)
• JButton btn (JButton) e.getSource()
• if (btn.getText().isEmpty())
• btn.setText(xTurn ? "X" "O")
• xTurn !xTurn
• // end actionPerformed
• // end class Listener
• //

getSource's return type is Object. The JButton
cast operator is necessary to prevent a
compilation error.
25
Embedded Layout Managers

• What layout manager scheme should be used for
  this math-calculator window?

• The GridLayout manager is usually pretty good at
  positioning components in an organized tabular
  fashion, but it's limited by the fact that each
  of its cells must be the same size.

26
JPanel Class

• A JPanel container object is a generic storage
  area for components.
• If you have a complicated window with lots of
  components, you may want to compartmentalize them
  by storing groups of components in JPanel
  containers.
• JPanel containers are particularly useful with
  GridLayout and BorderLayout windows because each
  compartment in those layouts can store only one
  component. If you need a compartment to store
  more than one component, let that one component
  be a JPanel container, and put multiple
  components into the JPanel container.

27
JPanel Class

• When using a JPanel container, do these things
• Since JPanel is in the javax.swing package,
  import that package.
• Instantiate a JPanel object
• JPanel ltJPanel-referencegt new
  JPanel(ltlayout-managergt)
• Add the components to the JPanel object
• ltJPanel-referencegt.add(ltcomponentgt)
• Add the JPanel object to the window
• add(ltJPanel-referencegt)

Optional argument. Default FlowLayout with
center alignment.
28
JPanel Class

• For example, to create the top-left cell's panel
  in the math-calculations program, do this
• In the createContents method
• xPanel new JPanel(new FlowLayout(FlowLayout.CENT
  ER))
• xPanel.add(xLabel)
• xPanel.add(xBox)
• add(xPanel)

29
This MathCalculator program uses embedded layout
managers to display square root and logarithm
calculations.

• import javax.swing.
• import java.awt.
• import java.awt.event.
• public class MathCalculator extends JFrame
• private static final int WIDTH 380
• private static final int HEIGHT 110
• private JTextField xBox // user's input
  value
• private JTextField xSqrtBox // generated
  square root
• private JTextField xLogBox // generated
  logarithm
• //
• public MathCalculator()
• setTitle("Math Calculator")
• setSize(WIDTH, HEIGHT)

30
MathCalculator Program

• //
• // Create components and add to window.
• private void createContents()
• JPanel xPanel // holds x label and its
  text box
• JPanel xSqrtPanel // holds "sqrt x" label
  and its text box
• JPanel xLogPanel // holds "log x" label and
  its text box
• JLabel xLabel
• JButton xSqrtButton
• JButton xLogButton
• Listener listener
• setLayout(new GridLayout(2, 2))
• // Create the x panel
• xLabel new JLabel("x")
• xBox new JTextField(8)

31
MathCalculator Program

• // Create the square-root panel
• xSqrtButton new JButton("sqrt x")
• xSqrtBox new JTextField(8)
• xSqrtBox.setEditable(false)
• xSqrtPanel new JPanel(new
  FlowLayout(FlowLayout.RIGHT))
• xSqrtPanel.add(xSqrtButton)
• xSqrtPanel.add(xSqrtBox)
• // Create the logarithm panel
• xLogButton new JButton("log x")
• xLogBox new JTextField(8)
• xLogBox.setEditable(false)
• xLogPanel new JPanel(new FlowLayout(FlowLayo
  ut.RIGHT))
• xLogPanel.add(xLogButton)
• xLogPanel.add(xLogBox)
• // Add panels to the window
• add(xPanel)
• add(xSqrtPanel)

32
MathCalculator Program

• listener new Listener()
• xSqrtButton.addActionListener(listener)
• xLogButton.addActionListener(listener)
• // end createContents
• //
• // Inner class for event handling.
• private class Listener implements
  ActionListener
• public void actionPerformed(ActionEvent e)
• double x // numeric value for user
  entered x
• double result // calculated value
• try
• x Double.parseDouble(xBox.getText())

33
MathCalculator Program

• if (e.getActionCommand().equals("sqrt x"))
• if (x lt 0)
• xSqrtBox.setText("undefined")
• else
• result Math.sqrt(x)
• xSqrtBox.setText(String.format("7.5f",
  result))
• // end if
• else // calculate logarithm
• if (x lt 0)
• xLogBox.setText("undefined")

getActionCommand retrieves the label of the
button that was clicked.
34
MathCalculator Program

• // end else
• // end actionPerformed
• // end class Listener
• //
• public static void main(String args)
• new MathCalculator()
• // end main
• // end class MathCalculator

35
JTextArea Component

• The JLabel component works great for displaying a
  single line of text. But for displaying multiple
  lines of text, you should use a JTextArea
  component.

JTextArea component
JCheckBox component
36
JTextArea Component

• To create a JTextArea component, call the
  JTextArea constructor like this
• JTextArea ltJTextArea-referencegt new
  JTextArea(ltdisplay-textgt)
• The display-text is the text that appears in the
  JTextArea component. If the display-text argument
  is omitted, then the JTextArea component displays
  no initial text.

37
JTextArea Component

• The JTextArea class, like all the GUI component
  classes, has quite a few methods. Here are the
  API headings and descriptions for some of the
  more popular JTextArea methods
• String getText()
• Returns the text area's text.
• void setText(String text)
• Assigns the text area's text.
• void setEditable(boolean flag)
• Makes the text box editable or non-editable.
• void setLineWrap(boolean flag)
• Turns line wrap on or off.
• void setWrapStyleWord(boolean flag)
• Specifies whether word boundaries are used for
  line wrapping.

38
JTextArea Component
This code creates the components in the
previously shown license agreement window.

• private void createContents()
• JTextArea license
• JCheckBox confirmBox
• setLayout(new BorderLayout())
• license new JTextArea(
• "SOFTWARE END-USER LICENSE AGREEMENT\n\n"
• "READ CAREFULLY This Software End-User
  License Agreement"
• " is a legal agreement between us, the
  software provider, and"
• " you, the end user of a software product
  legitimately"
• " purchased from us. You must accept this
  agreement to"
• " complete the sale of the software license.
  If you do not"
• " accept this agreement, you forfeit all
  rights to your"
• " current and future property and progeny.")
• license.setEditable(false)
• license.setLineWrap(true)
• license.setWrapStyleWord(true)
• confirmBox new JCheckBox(

39
JCheckBox Component

• JCheckBox component interface
• A JCheckBox component displays a small square
  with a label to its right.
• When the square is blank, the check box is
  unselected. When the square contains a check
  mark, the check box is selected.
• Users click on the check box in order to toggle
  it between selected and unselected.

40
JCheckBox Component

• To create a JCheckBox component, call the
  JCheckBox constructor like this
• JCheckBox ltJCheckBox-referencegt new
  JCheckBox(ltlabelgt, ltselectedgt)
• The label argument specifies the text that
  appears at the right of the check box's square.
  If the label argument is omitted, then no text
  appears at the right of the check box's square.
• The selected argument, a Boolean value, specifies
  whether the check box is initially selected. If
  the selected argument is omitted, then the check
  box is initially unselected.

41
JCheckBox Component

• Here are the API headings and descriptions for
  some of the more popular JCheckBox methods
• boolean isSelected()
• Returns true if the check box is selected and
  false otherwise.
• void setSelected(boolean flag)
• Makes the check box selected or unselected.
• String setVisible(boolean flag)
• Makes the check box visible or invisible.
• void setEnabled(boolean flag)
• Makes the check box enabled or disabled.
• void addActionListener(ActionListener listener)
• Adds a listener to the check box.

42
JCheckBox Component

• Installation Options Example

43
JCheckBox Component

• With a standard JButton button, you'll almost
  always want to have an associated listener.
• However, you may or may not want to have an
  associated listener for a check box.
• Use a listener if you want something to happen
  immediately, right when the user checks or
  unchecks the check box.
• If there's no listener, then the check box simply
  serves as an input entity. If that's the case,
  then the check box's value (checked or unchecked)
  would typically get read and processed when the
  user clicks a button.

44
JRadioButton Component

• JRadioButton component interface
• A JRadioButton component displays a small circle
  with a label to its right.
• When the circle is blank, the radio button is
  unselected.
• When the circle contains a large dot, the radio
  button is selected.
• Almost always, radio buttons come in groups.
• Within a radio-button group, only one radio
  button can be selected at a time.
• If an unselected button is clicked, the clicked
  button becomes selected, and the previously
  selected button in the group becomes unselected.
• If a selected button is clicked, no change occurs
  (i.e., the clicked button remains selected).

45
JRadioButton Component

• To create a JRadioButton component, call the
  JRadioButton constructor like this
• JRadioButton ltJRadioButton-referencegt new
  JRadioButton(ltlabelgt, ltselectedgt)
• The label argument specifies the text that
  appears at the right of the radio button's
  circle. If the label argument is omitted, then no
  text appears at the right of the radio button's
  circle.
• The selected argument, a Boolean value, specifies
  whether the radio button is initially selected.
  If the selected argument is omitted, then the
  radio button is initially unselected.
• This example shows how the standard and custom
  radio buttons were created in the
  installation-options program
• standard new JRadioButton("Standard
  (recommended)", true)
• custom new JRadioButton("Custom")

46
JRadioButton Component

• To enable the only-one-button-selected-at-a-time
  functionality of a radio button group, create a
  ButtonGroup object and add individual radio
  button components to it. Here's how
• ButtonGroup ltButtonGroup-referencegt new
  ButtonGroup()
• ltButtonGroup-referencegt.add(ltfirst-button-in-group
  gt)
• ...
• ltButtonGroup-referencegt.add(ltlast-button-in-groupgt
  )
• This example shows how the radio button group was
  created for the standard and custom radio buttons
  in the installation-options program
• ButtonGroup rbGroup new ButtonGroup()
• rbGroup.add(standard)
• rbGroup.add(custom)

47
JRadioButton Component

• Here are the API headings and descriptions for
  some of the more popular JRadioButton methods
• boolean isSelected()
• Returns true if the radio button is selected and
  false otherwise.
• void setSelected(boolean flag)
• Makes the radio button selected if the argument
  is true. Does nothing if the argument is false.
• String setVisible(boolean flag)
• Makes the radio button visible or invisible.
• void setEnabled(boolean flag)
• Makes the radio button enabled or disabled.
• void addActionListener(ActionListener listener)
• Adds a listener to the radio button.

48
JComboBox Component

• A combo box allows the user to select an item
  from a list of items.
• Combo boxes are sometimes called drop-down lists
  because when you click the combo box's down
  arrow, a list of selection items drops down.
• After a selection is made, the item list
  disappears and only the selected item is
  displayed.
• Combo boxes are called "combo boxes" because they
  are a combination of a text box (normally, they
  look like a text box) and a list (when the down
  arrow is clicked, they look like a list).
• Combo boxes and radio-button groups are similar
  in that they both allow the user to select one
  item from a list of items. But a combo box takes
  up less space on the window. So if you have a
  long list of items to choose from, and you want
  to save space, use a combo box rather than a
  group of radio buttons.

49
JComboBox Component

• Note this example where the user selects a day
  from among the five week days

1. Initial display
2. After user clicks on down arrow
3. After user clicks on Thursday
50
JComboBox Component

• How to implement a combo box
• Create an array of list options
• private String days
• "Monday", "Tuesday", "Wednesday",
  "Thursday", "Friday"
• Create a combo-box object by passing the array to
  the JComboBox constructor
• JComboBox daysBox new JComboBox(days)

51
JComboBox Component

• Here are the API headings and descriptions for
  some of the more popular JComboBox methods
• void setVisible(boolean flag)
• Makes the component visible or invisible.
• void setEditable(boolean flag)
• Makes the combo box's top portion editable or
  non-editable.
• Object getSelectedItem()
• Returns the item that is currently selected.
• void setSelectedItem(Object item)
• Changes the currently selected item to the item
  that's passed in.
• void addActionListener(ActionListener listener)
• Adds a listener to the combo box.

52
Job Application Example

• The upcoming program implements a job application
  by using check boxes, radio buttons, and a combo
  box for input and dialog boxes for output.

This appears when user enters "good" values.
This appears when user enters "bad" values.
53
Job Application Example

• import javax.swing.
• import java.awt.
• import java.awt.event.
• import javax.swing.border. // for
  EmptyBorder
• public class JobApplication extends JFrame
• private static final int WIDTH 250
• private static final int HEIGHT 300
• private JCheckBox java // Java Sun
  certified?
• private JCheckBox helpDesk // help-desk
  experience?
• private JCheckBox coffee // good coffee
  maker?
• private JRadioButton goodCitizen, criminal
• private JComboBox salary
• private String salaryOptions
• "20,000-59,000", "60,000-100,000",
  "above 100,000"
• private JButton submit // submit the
  application

54
Job Application Example

• //
• // Create components and add to window.
• private void createContents()
• ButtonGroup radioGroup
• // Need windowPanel for south-panel
  separation and outer margin.
• JPanel windowPanel new JPanel(new
  BorderLayout(0, 10))
• windowPanel.setBorder(new EmptyBorder(10, 10,
  10, 10))
• // centerPanel holds all components except
  button
• JPanel centerPanel new JPanel(new
  GridLayout(11, 1))
• // Need a panel for button so it can be
  center aligned
• JPanel southPanel new JPanel(new
  FlowLayout())

Without this line, our GridLayout components
would touch the left edge of the window. The
setBorder call allows us to specify a border. The
EmptyBorder class allows us to specify widths (in
pixels) for the top, left, bottom, and right
margins, respectively. The EmptyBorder class is
in the javax.swing.border package, so import that
package.
55
Job Application Example

• java new JCheckBox("Java Sun certified")
• helpDesk new JCheckBox("help-desk
  experience")
• coffee new JCheckBox("able to make good
  coffee")
• goodCitizen new JRadioButton("law-abiding
  citizen")
• criminal new JRadioButton("violent
  criminal")
• radioGroup new ButtonGroup()
• radioGroup.add(goodCitizen)
• radioGroup.add(criminal)
• salary new JComboBox(salaryOptions)
• submit new JButton("Submit")
• submit.addActionListener(new
  ButtonListener())
• centerPanel.add(new JLabel("Skills (check all
  that apply)"))
• centerPanel.add(java)
• centerPanel.add(helpDesk)
• centerPanel.add(coffee)
• centerPanel.add(new JLabel()) // filler
• centerPanel.add(new JLabel("Community
  standing"))
• centerPanel.add(goodCitizen)

56
Job Application Example

• windowPanel.add(centerPanel,
  BorderLayout.CENTER)
• southPanel.add(submit)
• windowPanel.add(southPanel,
  BorderLayout.SOUTH)
• add(windowPanel)
• // end createContents
• //
• // Read entered values and display an
  appropriate message.
• private class ButtonListener implements
  ActionListener
• public void actionPerformed(ActionEvent e)
• if (
• (java.isSelected() helpDesk.isSelected(
  )
• coffee.isSelected())

• (goodCitizen.isSelected())
• (!salary.getSelectedItem().equals("above
  100,000")))

57
Job Application Example

• else
• JOptionPane.showMessageDialog(null,
• "Sorry, no jobs at this time.")
• // end actionPerformed
• // end class ButtonListener
• //
• public static void main(String args)
• new JobApplication()
• // end class JobApplication
