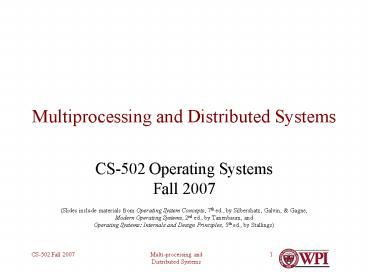

Multiprocessing and Distributed Systems

1
Multiprocessing and Distributed Systems

• CS-502 Operating SystemsFall 2007
• (Slides include materials from Operating System
  Concepts, 7th ed., by Silbershatz, Galvin,
  Gagne, Modern Operating Systems, 2nd ed., by
  Tanenbaum, andOperating Systems Internals and
  Design Principles, 5th ed., by Stallings)

2
Multiprocessing ? Distributed Computing(a
spectrum)

• Many independent problems at same time
• Similar
• Different
• One very big problem (or a few)
• Computations that are physically separated
• Client-server
• Inherently dispersed computations
• Different kinds of computers and operating systems

3
Multiprocessing ? Distributed Computing(a
spectrum)

• Many independent problems at same time
• Similar e.g., banking credit card airline
  reservations
• Different e.g., university computer center
  your own PC
• One very big problem (or a few)
• Computations that are physically separated
• Client-server
• Inherently dispersed computations
• Different kinds of computers and operating systems

4
Multiprocessing ? Distributed Computing(a
spectrum)

• Many independent problems at same time
• Similar e.g., banking credit card airline
  reservations
• Different e.g., university computer center
  your own PC
• One very big problem (too big for one computer)
• Weather modeling, finite element analysis drug
  discovery gene modeling weapons simulation
  etc.
• Computations that are physically separated
• Client-server
• Inherently dispersed computations
• Different kinds of computers and operating systems

5
Multiprocessing ? Distributed Computing(a
spectrum)

• Many independent problems at same time
• Similar e.g., banking credit card airline
  reservations
• Different e.g., university computer center
  your own PC
• One very big problem (too big for one computer)
• Weather modeling, Finite element analysis Drug
  discovery Gene modeling Weapons simulation
  etc.
• Computations that are physically separated
• Client-server
• Dispersed and/or peer-to-peer
• Routing tables for internet
• Electric power distribution
• International banking
• Different kinds of computers and operating systems

6
Inherently Distributed Computation(example)

• Internet routing of packets
• Network layer send a packet to its IP address
• Problems
• No central authority to manage routing in
  Internet
• Nodes and links come online or fail rapidly
• Need to be able to send a packet from any address
  to any address
• Solution
• Distributed routing algorithm

7
Distributed routing algorithm(simplified example)

• Each node knows networks other nodes directly
  connected to it.
• Each node maintains table of distant networks
• network , 1st hop, distance
• Periodically adjacent nodes exchange tables
• Update algorithm (for each network in table)
• If (neighbors distance to network my distance
  to neighbor lt my distance to network), then
  update my table entry for that network

8
Distributed routing algorithm(result)

• All nodes in Internet have reasonably up-to-date
  routing tables
• Rapid responses to changes in network topology,
  congestion, failures, etc.
• Very reliable with no central management!
• Network management software
• Monitoring health of network (e.g., routing
  tables)
• Identifying actual or incipient problems
• Data and statistics for planning purposes

9
Summary

• Some algorithms are inherently distributed
• Depend upon computations at physically separate
  places
• Result is the cumulative results of individual
  computations
• Not much impact on computer or OS architecture

10
Taxonomy of Parallel Processing
11
Client-Server Computations

• Very familiar model
• Parts of computation takes place on
• Users PC, credit-card terminal, etc.
• and part takes place on central server
• E.g., updating database, search engine, etc.
• Central issues
• Protocols for efficient communication
• Where to partition the problem

12
Very Big Problems

• Lots and lots of calculations
• Highly repetitive
• Easily parallelizable into separate subparts
• (Usually) dependent upon adjacent subparts
• Arrays or clusters of computers
• Independent memories
• Very fast communication between elements? close
  coupling

13
Closely-coupled Systems

• Examples
• Beowulf clusters 32-256 PCs
• ASCI Red 1000-4000 PC-like processors
• BlueGene/L up to 65,536 processing elements

14
Taxonomy of Parallel Processing
15
IBM BlueGene/L
16
Systems for Closely-Coupled Clusters

• Independent OS for each node
• E.g., Linux in Beowulf
• Additional middleware for
• Distributed process space
• Synchronization among nodes (Silbershatz, Ch 18)
• Access to network and peripheral devices
• Failure management
• Parallelizing compilers
• For partitioning a problem into many processes

17
Cluster Computer Architecture
18
Interconnection Topologies
19
Goal

• Microsecond-level
• messages
• synchronization and barrier operations among
  processes

20
Questions?
21
Multiprocessing ? Distributed Computing(a
spectrum)

• Many independent problems at same time
• Similar e.g., banking credit card airline
  reservations
• Different e.g., university computer center
  your own PC
• One very big problem (or a few)
• Problems that physically separated by their very
  nature
• Different kinds of computers and operating systems

22
Many Separate Computations

• Similar banking credit card airline
  reservation
• Transaction processing
• Thousands of small transactions per second
• Few (if any) communications among transactions
• Exception locking, mutual exclusion,
  serialization
• Common database

23
Requirements

• Lots of disks, enough CPU power
• Accessible via multiple paths
• High availability
• Fault-tolerant components OS support
• Processor independence
• Any transaction on any processor
• Global file system
• Load-balancing
• Scalable

24
Options

• Cluster (of a somewhat different sort)
• Shared-memory multi-processor

25
Taxonomy of Parallel Processing
26
Cluster Computing

• Scalable to large number of processors
• Common I/O space
• Multiple channels for disk access
• Hyper-channel, Fiber-channel, etc.
• Multi-headed disks
• At least two paths from any processor to any disk
• Remote Procedure Call for communication among
  processors
• DCOM, CORBA, Java RMI, etc.

27
Shared-Memory Multiprocessor

• All processors can access all memory
• Some memory may be faster than other memory
• Any process can run on any processor
• Multiple processors executing in same address
  space concurrently
• Multiple paths to disks (as with cluster)

28
Shared Memory MultiprocessorsBus-based

• Bus contention limits the number of CPUs

• Lower bus contention
• Caches need to be synced (big deal)

• Compiler places data and text in private or
  shared memory

29
Multiprocessors (2) - Crossbar

• Can support a large number of CPUs -
• Non-blocking network
• Cost/performance effective up to about 100 CPU
  growing as n2

30
Multiprocessors(3) Multistage Switching Networks

• Omega Network blocking
• Lower cost, longer latency
• For N CPUs and N memories log2 n stages of n/2
  switches

31
Type of Multiprocessors UMA vs. NUMA

• UMA (Uniform Memory Access)
• All memory is equal
• Familiar programming model
• Number of processors is limited
• 8-32
• Symmetrical
• No processor is different from others

• NUMA (Non-Uniform Memory Access)
• Single address space visible to all CPUs
• Access to remote memory via commands
• LOAD STORE
• remote memory access slower than to local

32
Common SMP Implementations

• Multiple processors on same board or bus
• Dual core and multi-core processors
• I.e., two or more processors on same chip
• Share same L2 cache
• Hyperthreading
• One processor shares its circuitry among two
  threads or processes
• Separate registers, PSW, etc.
• Combinations of above

33
Hardware issue Cache Synchronization

• Each processor cache monitors memory accesses on
  bus (i.e., snoops)
• Memory updates are propagated to other caches
• Complex cache management hardware
• Order of operations may be ambiguous
• Some data must be marked as not cacheable
• Visible to programming model

34
Operating System Considerations

• Master-slave vs. full symmetry
• Explicit cache flushing
• When page is replaced or invalidated
• Processor affinity of processes
• Context switches across processors can be
  expensive
• Synchronization across processors
• Interrupt handling

35
Multiprocessor OS Master-Slave

• One CPU (master) runs the OS and applies most
  policies
• Other CPUs
• run applications
• Minimal OS to acquire and terminate processes
• Relatively simple OS
• Master processor can become a bottleneck for a
  large number of slave processors

36
Multiprocessor OS Symmetric Multi-Processor
(SMP)

• Any processor can execute the OS and any
  applications
• Synchronization within the OS is the issue
• Lock the whole OS poor utilization long
  queues waiting to use OS
• OS critical regions much preferred
• Identify independent OS critical regions that be
  executed independently protect with mutex
• Identify independent critical OS tables protect
  access with MUTEX
• Design OS code to avoid deadlocks
• The art of the OS designer
• Maintenance requires great care

37
Multiprocessor OS SMP (continued)

• Multiprocessor Synchronization
• Need special instructions test-and-set
• Spinlocks are common
• Can context switch if time in critical region is
  greater than context switch time
• OS designer must understand the performance of OS
  critical regions
• Context switch time could be onerous
• Data cached on one processor needs to be
  re-cached on another

38
Multiprocessor Scheduling

• When processes are independent (e.g.,
  timesharing)
• Allocate CPU to highest priority process
• Tweaks
• For a process with a spinlock, let it run until
  it releases the lock
• To reduce TLB and memory cache flushes, try to
  run a process on the same CPU each time it runs
• For groups of related processes
• Attempt to simultaneously allocate CPUs to all
  related processes (space sharing)
• Run all threads to termination or block
• Gang schedule apply a scheduling policy to
  related processes together

39
Linux SMP Support

• Multi-threaded kernel
• Any processor can handle any interrupt
• Interrupts rarely disabled, and only for shortest
  time possible
• Multiple processors can be active in system calls
  concurrently
• Process vs. Interrupt context
• Process context when processor is acting on
  behalf of a specific process
• Interrupt context when processor is acting on
  behalf of no particular process
• Extensive use of spinlocks
• Processor affinity properties in task_struct

40
WPI Computing Communications Center

• CCC cluster 11 dual 2.4 GHz Xeon processors
• toth 16-node 1.5 GHz Itanium2
• big16 8 dual-core 2.4 GHz Opterons
• toaster NetApp 5.5 TByte Fiber Channel RAID NFS
• breadbox NetApp 12 TByte RAID NFS
• Many others
• All connected together by very fast networks

41
Questions?
